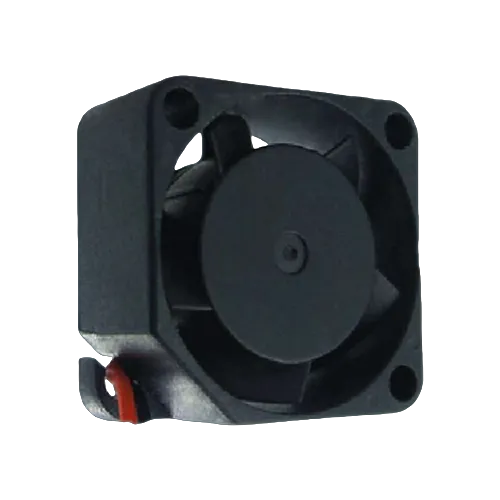

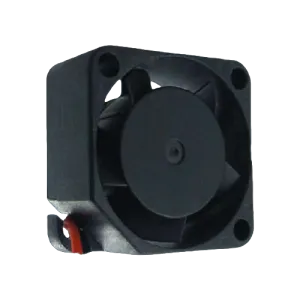

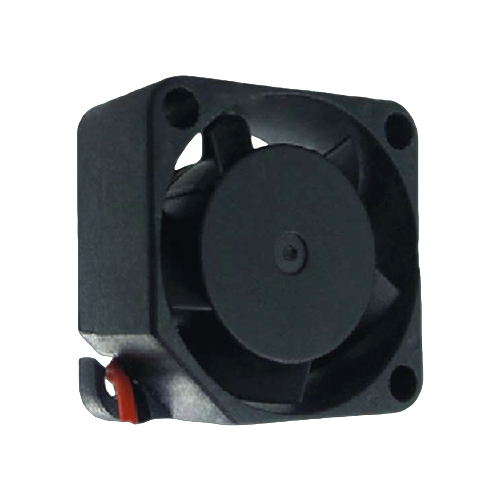

Axial Fan 20*20*10mm

This is a micro fan, compact in size, space-saving, and suitable for devices with high space requirements, such as small electronic instruments, etc. The general voltage is 5V or 12V, with low energy consumption and good energy-saving performance. It has a relatively high rotational speed and can quickly form an airflow for heat dissipation. It can be used in products such as humidifiers and aroma diffusers that require heat dissipation or ventilation.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

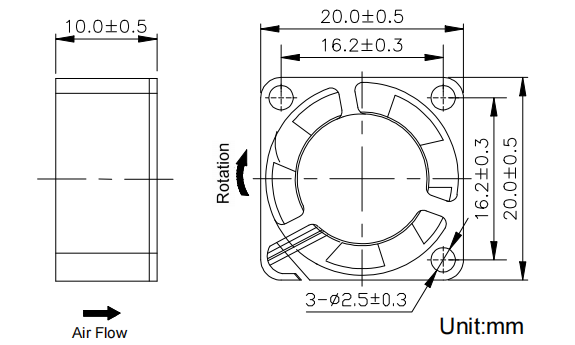

Dimensions Drawing

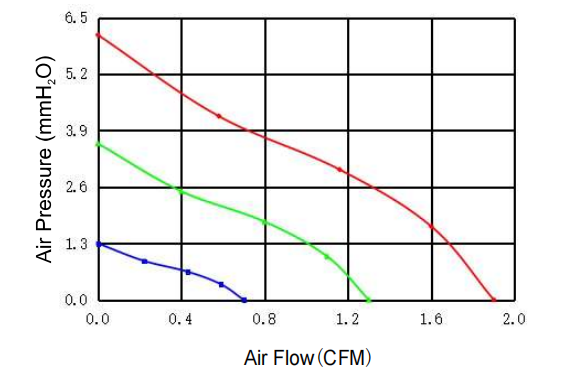

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	g
QD2010H5B	5	3.5-5.7	0.20	20000	1.9	6.1	30	5
QD2010M5B		3.5-5.7	0.13	15000	1.3	3.6	27
QD2010L5B		3.5-5.7	0.10	10000	0.7	1.3	22
QD2010H1B	12	6.0-13.8	0.07	20000	1.9	6.1	30
QD2010M1B		6.0-13.8	0.05	15000	1.3	3.6	27
QD2010L1B		6.0-13.8	0.03	10000	0.7	1.3	22
