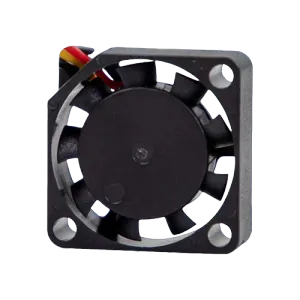

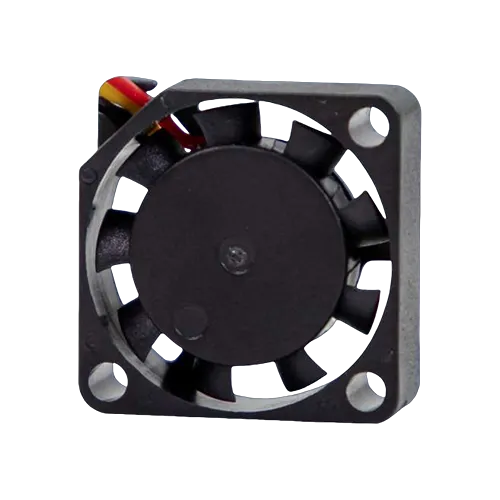

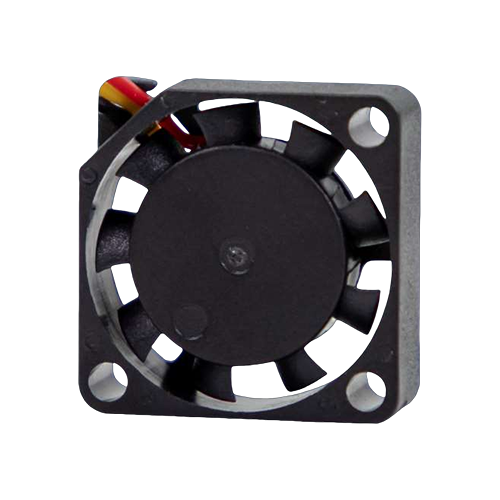

Axial Fan 20*20*6mm

It is compact in size and suitable for heat dissipation in devices with limited space, such as projectors and microelectronic products. Generally, it has a relatively high rotational speed, which can quickly promote air flow. It is powered by direct current and the voltage can be adjusted as needed to control the rotational speed. It is energy-saving and has low noise. Some also have the advantages of long service life and good stability.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

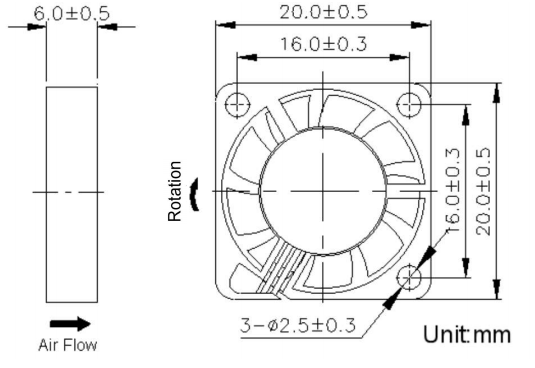

Dimensions Drawing

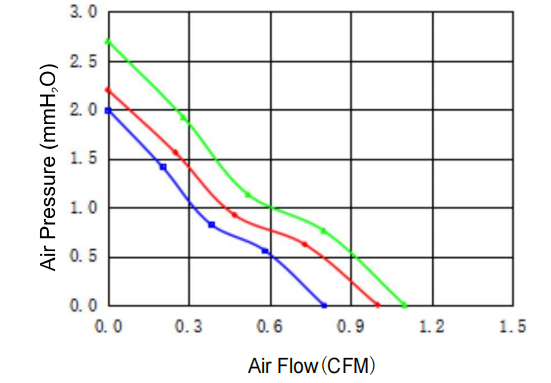

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QD2006H5B	5	3.5-5.7	0.16	12000	1.1	2.7	31	5
QD2006M5B		3.5-5.7	0.12	10000	1.0	2.2	25
QD2006L5B		3.5-5.7	0.08	8000	0.8	2.0	21
QD2006H1B	12	6.0-13.8	0.07	12000	1.1	2.7	31
QD2006M1B		6.0-13.8	0.05	10000	1.0	2.2	25
QD2006L1B		6.0-13.8	0.03	8000	0.8	2.0	21
