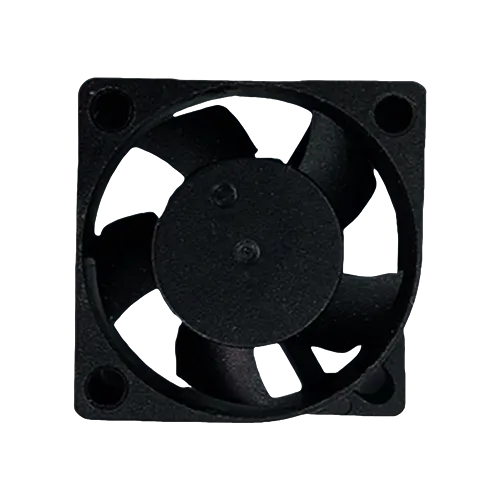

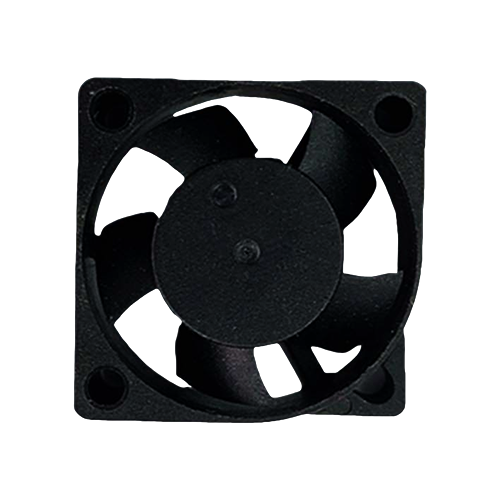

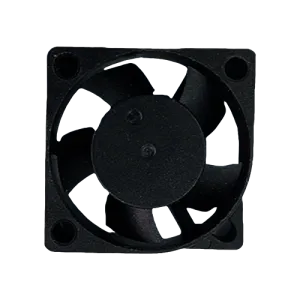

Axial Fan 30*30*10mm
It features a compact size, large air volume, simple structure and low cost. It is often used in electronic devices that have high space requirements and need rapid heat dissipation, such as small servers and laptops, and can effectively ensure the stable operation of the equipment.
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | CE |

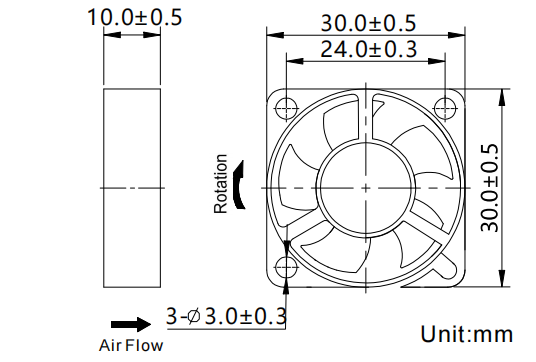

Dimensions Drawing

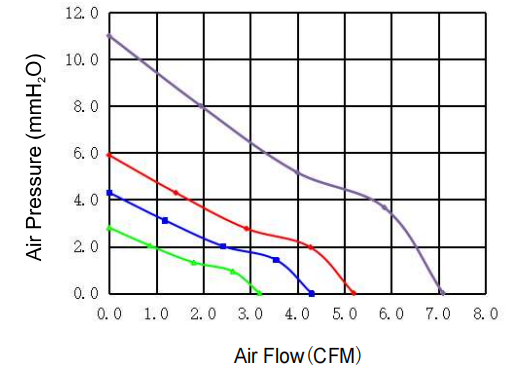

Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
QD3010D5B | 5 | 3.5-5.7 | 0.35 | 15000 | 7.1 | 11.0 | 38 | 7.5 |
QD3010H5B | 3.5-5.7 | 0.20 | 11000 | 5.2 | 5.9 | 32 | ||
QD3010M5B | 3.5-5.7 | 0.15 | 9000 | 4.3 | 4.3 | 25 | ||
QD3010L5B | 3.5-5.7 | 0.12 | 7000 | 3.2 | 2.8 | 20 | ||
QD3010D1B | 12 | 6.0-13.8 | 0.18 | 15000 | 7.1 | 11.0 | 38 | |
QD3010H1B | 6.0-13.8 | 0.10 | 11000 | 5.2 | 5.9 | 32 | ||
QD3010M1B | 6.0-13.8 | 0 | 9000 | 4 | 4 | 25 | ||
QD3010L1B | 6.0-13.8 | 0 | 7000 | 3 | 3 | 20 | ||
QD3010D2B | 24 | 12.0-27.6 | 0 | 15000 | 7 | 11 | 38 | |
QD3010H2B | 12.0-27.6 | 0 | 11000 | 5 | 6 | 32 | ||
QD3010M2B | 12.0-27.6 | 0 | 9000 | 4 | 4 | 25 | ||
QD3010L2B | 12.0-27.6 | 0 | 7000 | 3 | 3 | 20 |
