Axial Fan 30307mm

Axial Fan 30*30*7mmCompact in size, its length, width and height are 30mm, 30mm and 7mm respectively. It is generally made of plastic and features a unique fan blade design. During operation, it dissipates heat efficiently and generates low noise. It is mostly powered by DC, with voltage options of 5V or 12V. It has a relatively high rotational speed and can generate a large air volume. It is often used for heat dissipation in computers, industrial control equipment, LED lights, etc.General Spec...

INQUIRY

Axial Fan 30*30*7mm

Compact in size, its length, width and height are 30mm, 30mm and 7mm respectively. It is generally made of plastic and features a unique fan blade design. During operation, it dissipates heat efficiently and generates low noise. It is mostly powered by DC, with voltage options of 5V or 12V. It has a relatively high rotational speed and can generate a large air volume. It is often used for heat dissipation in computers, industrial control equipment, LED lights, etc.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

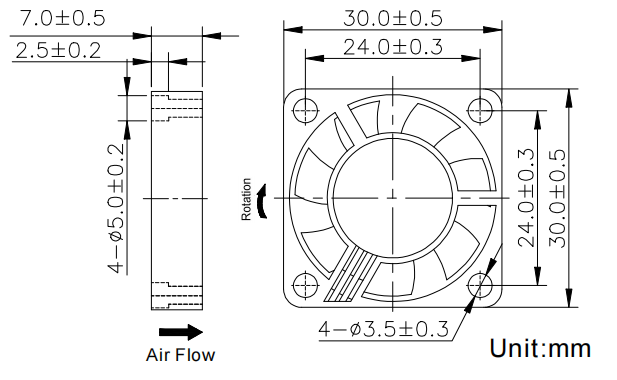

Dimensions Drawing

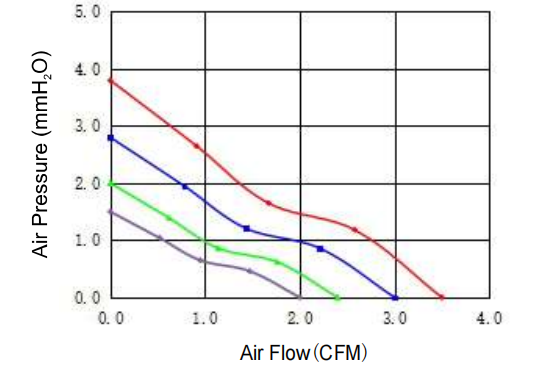

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	g
QD3007D5B	5	3.5-5.7	0.12	10500	3.5	3.8	32	6
QD3007H5B		3.5-5.7	0.10	9000	3.0	2.8	26
QD3007M5B		3.5-5.7	0.07	7500	2.4	2.0	22
QD3007L5B		3.5-5.7	0.05	6000	2.0	1.5	18
QD3007D1B	12	6.0-13.8	0.08	10500	3.5	3.8	32
QD3007H1B		6.0-13.8	0.06	9000	3.0	2.8	26
QD3007M1B		6.0-13.8	0	7500	2	2	22
QD3007L1B		6.0-13.8	0	6000	2	2	18
