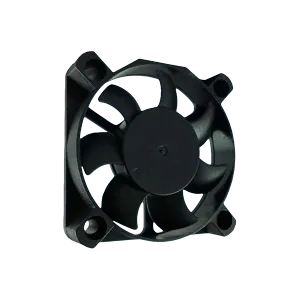

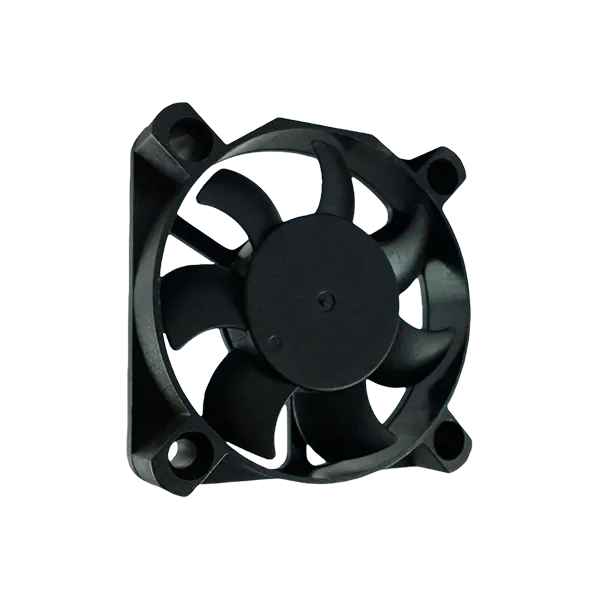

Axial Fan 50*50*10mm
It is suitable for scenarios with high space requirements. It can achieve rapid air circulation with relatively low energy consumption and is often used for heat dissipation in electronic devices, such as small computer hosts and routers, effectively maintaining the stability of the device temperature.
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | CE |

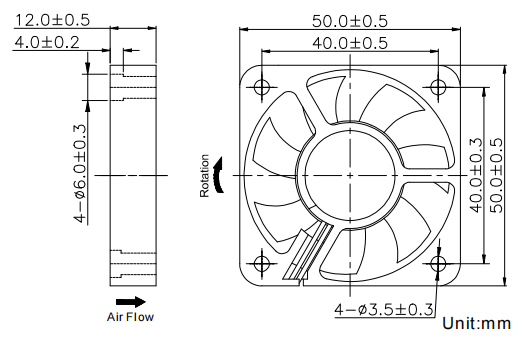

Dimensions Drawing

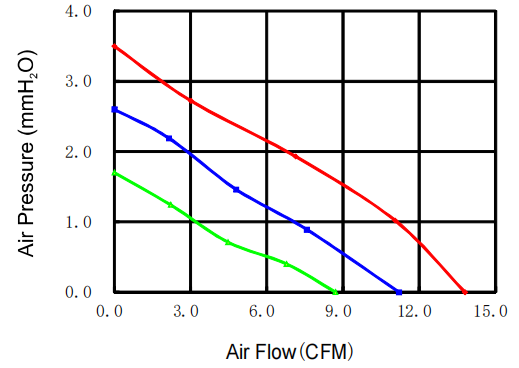

Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | 9 | |
QD5010H5B | 5 | 3.5-5.7 | 0.30 | 5500 | 13.8 | 3.5 | 33 | 19 |
QD5010M5B | 3.5-5.7 | 0.20 | 4500 | 11.2 | 2.6 | 28 | ||
QD5010L5B | 3.5-5.7 | 0.15 | 3500 | 8.7 | 1.7 | 22 | ||
QD5010H1B | 12 | 6.0-13.8 | 0.18 | 5500 | 13.8 | 3.5 | 33 | |
QD5010M1B | 6.0-13.8 | 0.10 | 4500 | 11.2 | 2.6 | 28 | ||
QD5010L1B | 6.0-13.8 | 0.07 | 3500 | 8.7 | 1.7 | 22 | ||
QD5010H2B | 24 | 12.0-27.6 | 0.09 | 5500 | 13.8 | 3.5 | 33 | |
QD5010M2B | 12.0-27.6 | 0.07 | 4500 | 11.2 | 2.6 | 28 | ||
QD5010L2B | 12.0-27.6 | 0.05 | 3500 | 8.7 | 1.7 | 22 |
