Axial Fan 505010mm

Axial Fan 50*50*10mmIt is suitable for scenarios with high space requirements. It can achieve rapid air circulation with relatively low energy consumption and is often used for heat dissipation in electronic devices, such as small computer hosts and routers, effectively maintaining the stability of the device temperature.General SpecificationsMotorDC Brushless motorFrame MaterialPlastic(UL94V-0)Impeller MaterialPlastic(UL94V-0)FunctionPWM/FG/RD optionalTemp.Range-20℃~70℃ProtectionIP20,Max.IP68Ex...

INQUIRY

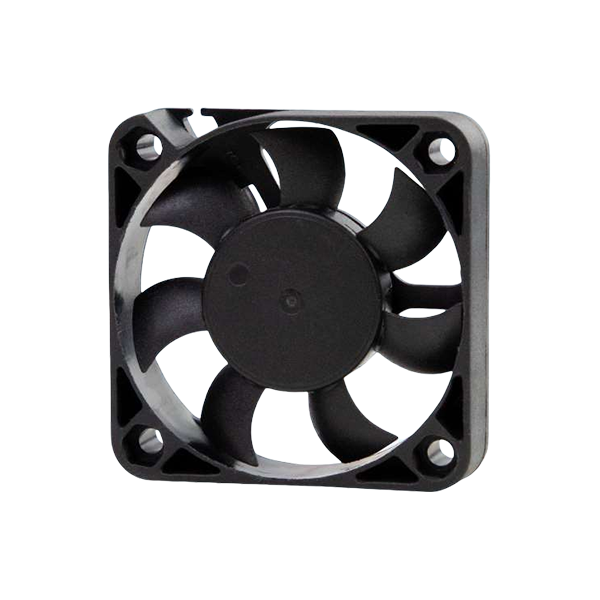

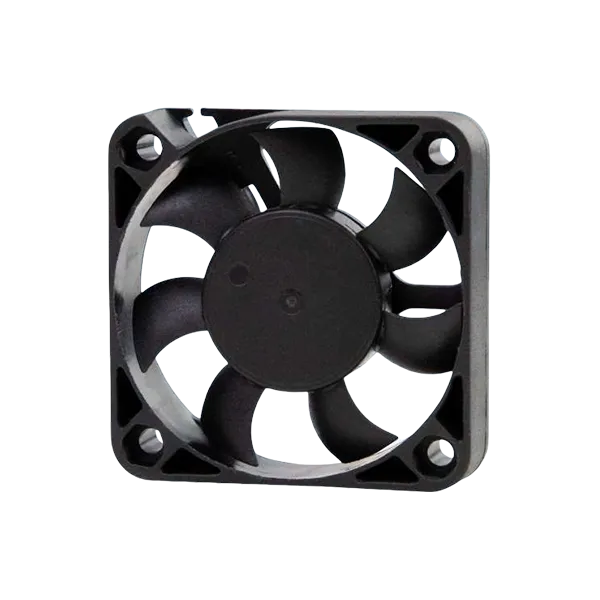

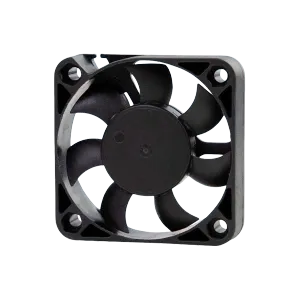

Axial Fan 50*50*10mm

It is suitable for scenarios with high space requirements. It can achieve rapid air circulation with relatively low energy consumption and is often used for heat dissipation in electronic devices, such as small computer hosts and routers, effectively maintaining the stability of the device temperature.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

Dimensions Drawing

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QD5010H5B	5	3.5-5.7	0.30	5500	13.8	3.5	33	19
QD5010M5B		3.5-5.7	0.20	4500	11.2	2.6	28
QD5010L5B		3.5-5.7	0.15	3500	8.7	1.7	22
QD5010H1B	12	6.0-13.8	0.18	5500	13.8	3.5	33
QD5010M1B		6.0-13.8	0.10	4500	11.2	2.6	28
QD5010L1B		6.0-13.8	0.07	3500	8.7	1.7	22
QD5010H2B	24	12.0-27.6	0.09	5500	13.8	3.5	33
QD5010M2B		12.0-27.6	0.07	4500	11.2	2.6	28
QD5010L2B		12.0-27.6	0.05	3500	8.7	1.7	22
