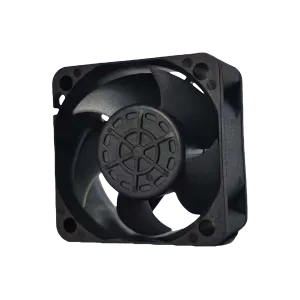

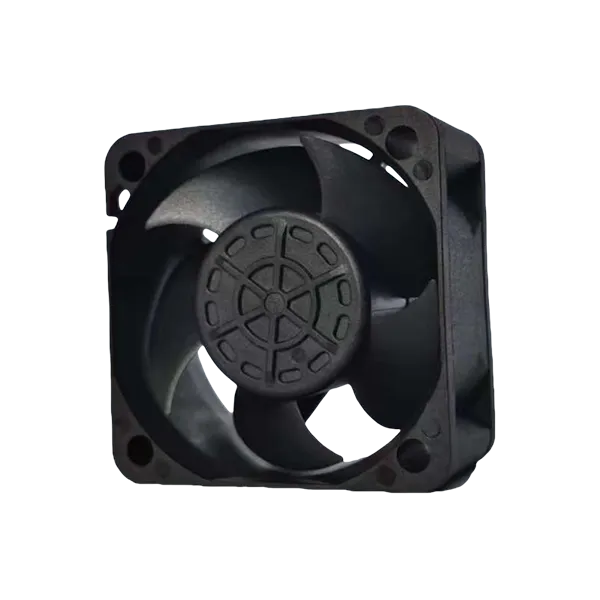

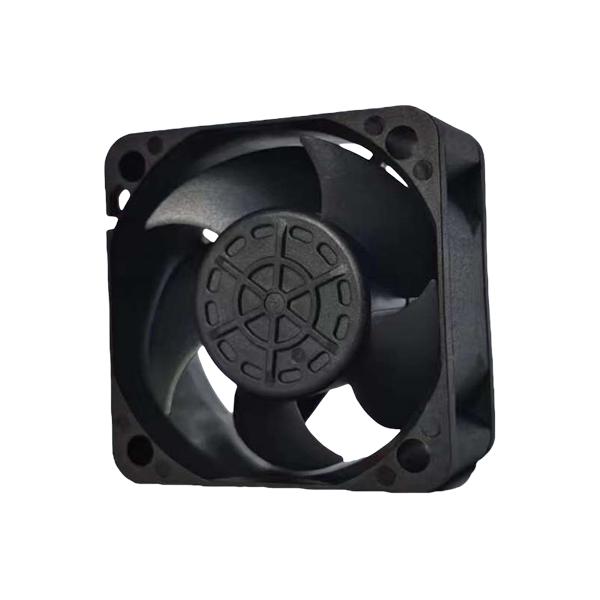

Axial Fan 505025mm

Axial Fan 50*50*25mmCompact in size, with a length and width of 50mm each and a thickness of 25mm. When in operation, the air flows along the axial direction, which can quickly expel heat. It is often used in electronic devices with high space requirements and large heat dissipation needs. It has the advantages of large air volume, low noise and easy installation, which can effectively ensure the stable operation of the equipment.General SpecificationsMotorDC Brushless motorFrame MaterialPlastic...

INQUIRY

Axial Fan 50*50*25mm

Compact in size, with a length and width of 50mm each and a thickness of 25mm. When in operation, the air flows along the axial direction, which can quickly expel heat. It is often used in electronic devices with high space requirements and large heat dissipation needs. It has the advantages of large air volume, low noise and easy installation, which can effectively ensure the stable operation of the equipment.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

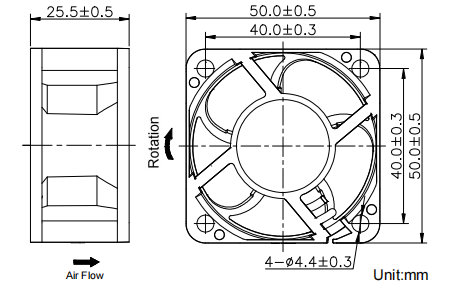

Dimensions Drawing

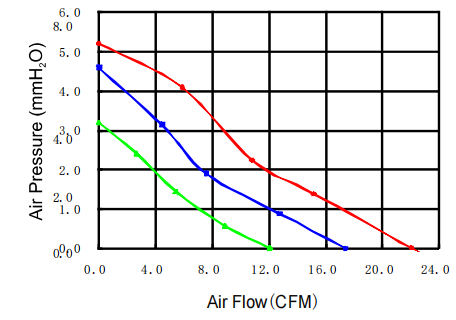

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	g
QD5025H5B	5	3.5-5.7	0.35	5000	22.1	5.2	33	35
QD5025M5B		3.5-5.7	0.25	4000	17.4	4.6	27
QD5025L5B		3.5-5.7	0.18	3000	12.1	3.2	22
QD5025H1B	12	6.0-13.8	0.18	5000	22.1	5.2	33
QD5025M1B		6.0-13.8	0.14	4000	17.4	4.6	27
QD5025L1B		6.0-13.8	0.10	3000	12.1	3.2	22
QD5025H2B	24	12.0-27.6	0.12	5000	22.1	5.2	33
QD5025M2B		12.0-27.6	0.10	4000	17.4	4.6	27
QD5025L2B		12.0-27.6	0.08	3000	12.1	3.2	22
