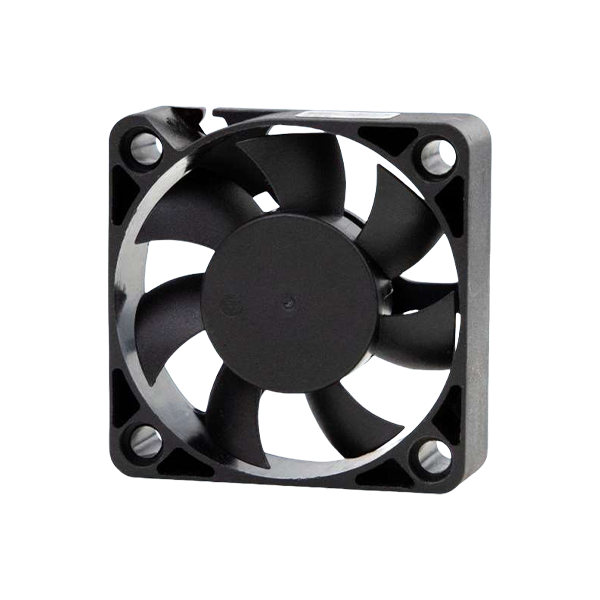

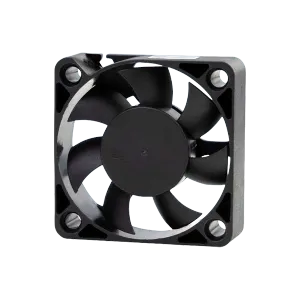

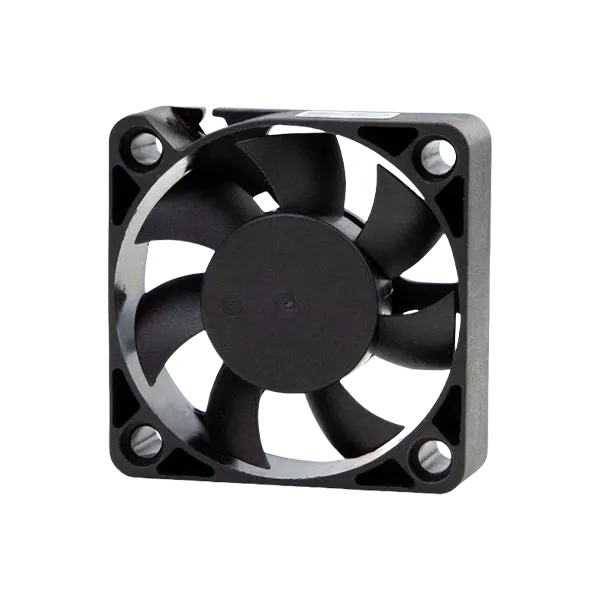

Axial Fan 50*50*15mm

Axial flow fan of 50×50×10 millimeters. Its characteristic is that the airflow flows along the axial direction. It has the advantages of compact structure and small volume, and is suitable for scenarios with high space requirements.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	UL/CUL CE

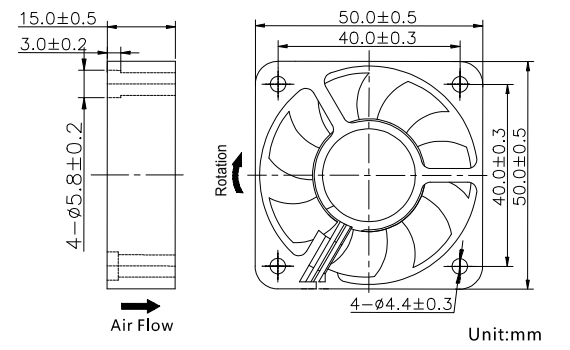

Dimensions Drawing

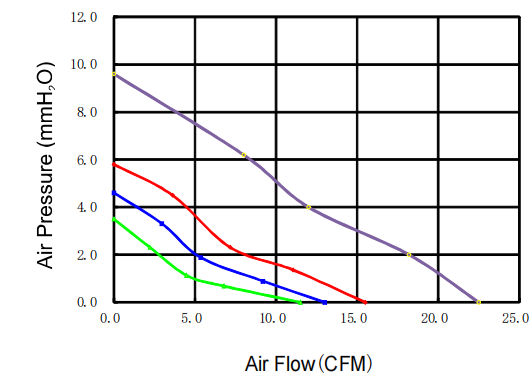

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QD5015H5B	5	3.5-5.7	0.33	5500	15.5	5.8	31	28
QD5015M5B		3.5-5.7	0.25	5000	13.0	4.6	30
QD5015L5B		3.5-5.7	0.20	4500	11.5	3.5	29
QD5015D1B	12	6.0-13.8	0.40	8000	22.5	9.6	41
QD5015H1B		6.0-13.8	0.30	5500	15.5	5.8	31
QD5015M1B		6.0-13.8	0.22	5000	13.0	4.6	30
QD5015L1B		6.0-13.8	0.13	4500	11.5	3.5	29
QD5015D2B	24	12.0-27.6	0.18	8000	22.5	9.6	41
QD5015H2B		12.0-27.6	0.15	5500	15.5	5.8	31
QD5015M2B		12.0-27.6	0.10	5000	13.0	4.6	30
QD5015L2B		12.0-27.6	0.08	4500	11.5	3.5	29
