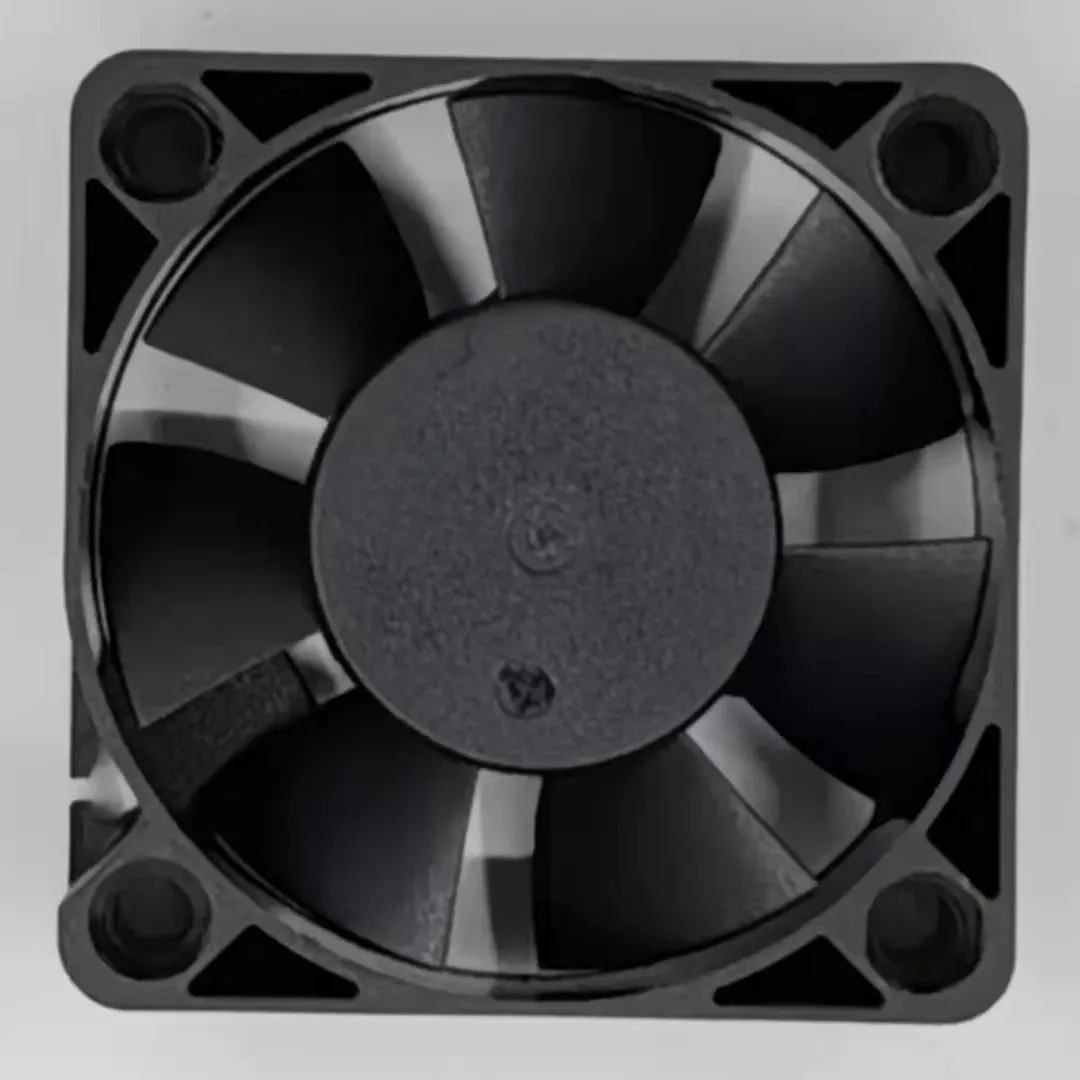

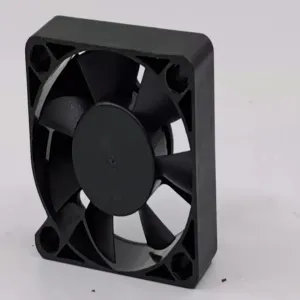

The 5015 DC axial cooling fan is designed for applications where installation space is limited but effective airflow is still required. With a compact 50x50x15mm frame, this fan provides a practical cooling solution for small electronic devices, power supply units, control modules, and compact equipment.
Its slim structure allows easier integration into narrow equipment spaces while maintaining stable air circulation to help remove heat from internal components.
Products Description
Speed | 3200- 6800 RPM |
Airflow | 7.30 15.04CFM |
Pressure | 1.22- 5.21mmAq |
Noise | 418.5- 35.0dBA |
Voltage | 05V-24V |
Motor | DC Brushless external rotor motor |
Frame | PBT |
Impeller | PBT |
Bearing System | 2 Ball, Longlife Sleeve, FDB |
Insulation | Class A |
Operation Temperture | -10℃ - 70℃ |
Weight | 17g |
The 50x50x15mm structure makes this fan suitable for products with limited internal space. Compared with standard thicker fans, the slim profile allows manufacturers to create more compact equipment layouts while maintaining necessary ventilation performance.
It is suitable for embedded systems, electronic modules, small power supplies, and other applications where installation depth is restricted.
This cooling fan is designed for 24V DC applications and can be integrated into various electronic and industrial systems.
The DC motor design provides stable operation and continuous airflow, helping improve heat management in equipment that operates for extended periods.
The axial flow design allows air to pass directly through the fan, creating a straightforward ventilation path for equipment cooling.
This structure is suitable for applications that require consistent airflow, simple installation, and reliable heat dissipation performance.
With its compact size and lightweight structure, the 5015 fan is suitable for small electronic products where space and weight are important considerations.
It helps maintain proper airflow inside equipment while avoiding unnecessary impact on the overall product design.
Power supply equipment
Electronic control systems
Communication devices
Embedded equipment
Compact industrial devices
Testing instruments
Automation modules
Electrical components
Small ventilation systems
Many compact electronic products generate heat during operation while providing limited space for cooling components. Efficient airflow management becomes important for maintaining stable performance.
The 5015 DC Cooling Fan provides a compact solution by improving internal ventilation and helping remove heat from sensitive components.
It is suitable for manufacturers looking for a small cooling fan with reliable airflow performance and flexible installation options.
XEONfan technology provides customized cooling solutions according to different application requirements.
Customization options may include voltage, cable length, connector type, bearing selection, speed configuration, airflow direction, label, and packaging.
These options allow the fan to be adapted to different equipment structures and cooling requirements.
XEONFAN Technology specializes in AC and DC brushless cooling fans, Blower fans, motors, and customized heat dissipation solutions.
The company integrates research and development, manufacturing, sales, and service, providing cooling products for computers, communication equipment, industrial systems, new energy applications, medical devices, and other industries.
With professional testing and verification capabilities, XEONFAN Technology supports customers with reliable cooling solutions and customized fan development.
A1: The fan size is 50x50x15mm, also known as a 5015 DC axial cooling fan.
A2: This model is designed for 24V DC applications.
A3: This fan uses an axial airflow structure, which provides direct ventilation through the fan housing.
A4: It can be used in power supplies, electronic equipment, control systems, communication devices, and compact industrial applications.
A5: Yes. The 50x50x15mm slim structure makes it suitable for equipment with restricted mounting space.
A6: Available bearing options include sleeve bearing, hydraulic bearing, dual ball bearing, and FDB according to application requirements.
A7: Yes. XEONFAN Technology can customize voltage, cable length, connector type, bearing type, speed, label, packaging, and other requirements.
A8: Yes. The compact structure and stable airflow make it suitable for power supply cooling and ventilation applications.
