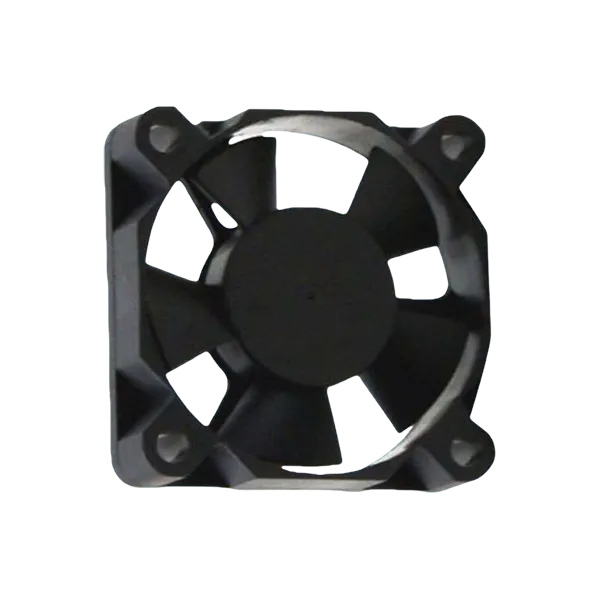

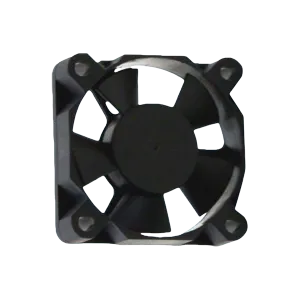

It is commonly used in 3D printers, CPU cooling, sensors, LED lights and other devices. Generally, ball bearings or hydraulic bearings are used, with a rotational speed that can reach 5000-9000 rpm, providing a certain air volume and assisting in heat dissipation. Some of them have multiple speed options to meet different heat dissipation requirements and have good environmental adaptability and durability.
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | CE |

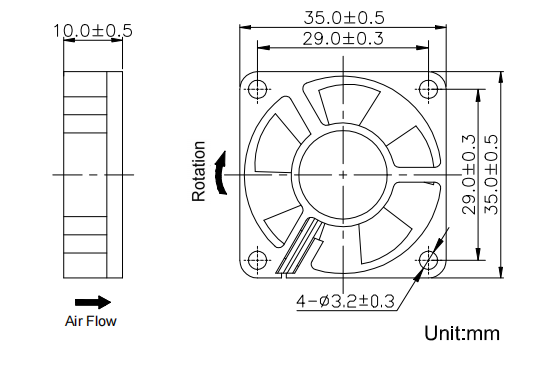

Dimensions Drawing

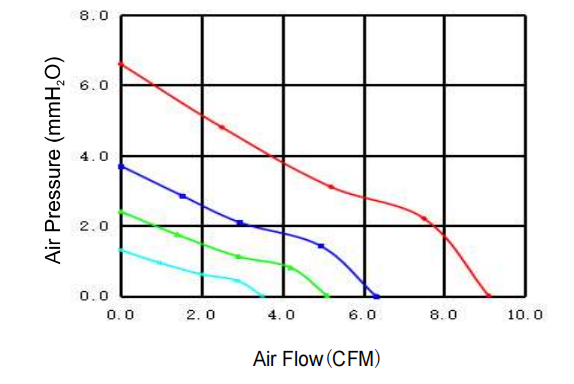

Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
QD3510D5B | 5 | 3.5-5.7 | 0.35 | 13000 | 9.1 | 6.6 | 38 | 10 |
QD3510H5B | 3.5-5.7 | 0.23 | 9000 | 6.3 | 3.7 | 32 | ||
QD3510M5B | 3.5-5.7 | 0.21 | 7000 | 5.1 | 2.4 | 25 | ||
QD3510L5B | 3.5-5.7 | 0.13 | 5000 | 3.5 | 1.3 | 20 | ||
QD3510D1B | 12 | 6.0-13.8 | 0.20 | 13000 | 9.1 | 6.6 | 38 | |
QD3510H1B | 6.0-13.8 | 0.14 | 9000 | 6.3 | 3.7 | 32 | ||
QD3510M1B | 6.0-13.8 | 0.11 | 7000 | 5.1 | 2.4 | 25 | ||
QD3510L1B | 6.0-13.8 | 0.08 | 5000 | 3.5 | 1.3 | 20 | ||
QD3510D2B | 24 | 12.0-27.6 | 0.12 | 13000 | 9.1 | 6.6 | 38 | |
QD3510H2B | 12.0-27.6 | 0.08 | 9000 | 6.3 | 3.7 | 32 | ||
QD3510M2B | 12.0-27.6 | 0.06 | 7000 | 5.1 | 2.4 | 25 | ||
QD3510L2B | 12.0-27.6 | 0.05 | 5000 | 3.5 | 1.3 | 20 |
It is commonly used in 3D printers, CPU cooling, sensors, LED lights and other devices. Generally, ball bearings or hydraulic bearings are used, with a rotational speed that can reach 5000-9000 rpm, providing a certain air volume and assisting in heat dissipation. Some of them have multiple speed options to meet different heat dissipation requirements and have good environmental adaptability and durability.
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | CE |
Dimensions Drawing
Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
QD3510D5B | 5 | 3.5-5.7 | 0.35 | 13000 | 9.1 | 6.6 | 38 | 10 |
QD3510H5B | 3.5-5.7 | 0.23 | 9000 | 6.3 | 3.7 | 32 | ||
QD3510M5B | 3.5-5.7 | 0.21 | 7000 | 5.1 | 2.4 | 25 | ||
QD3510L5B | 3.5-5.7 | 0.13 | 5000 | 3.5 | 1.3 | 20 | ||
QD3510D1B | 12 | 6.0-13.8 | 0.20 | 13000 | 9.1 | 6.6 | 38 | |
QD3510H1B | 6.0-13.8 | 0.14 | 9000 | 6.3 | 3.7 | 32 | ||
QD3510M1B | 6.0-13.8 | 0.11 | 7000 | 5.1 | 2.4 | 25 | ||
QD3510L1B | 6.0-13.8 | 0.08 | 5000 | 3.5 | 1.3 | 20 | ||
QD3510D2B | 24 | 12.0-27.6 | 0.12 | 13000 | 9.1 | 6.6 | 38 | |
QD3510H2B | 12.0-27.6 | 0.08 | 9000 | 6.3 | 3.7 | 32 | ||
QD3510M2B | 12.0-27.6 | 0.06 | 7000 | 5.1 | 2.4 | 25 | ||
QD3510L2B | 12.0-27.6 | 0.05 | 5000 | 3.5 | 1.3 | 20 |
