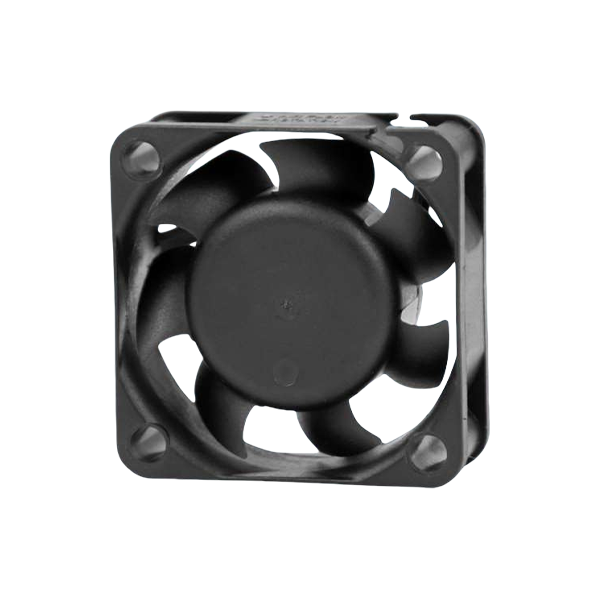

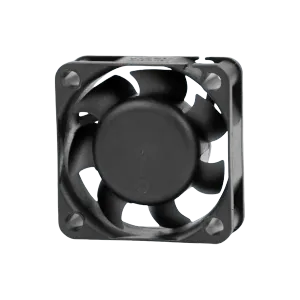

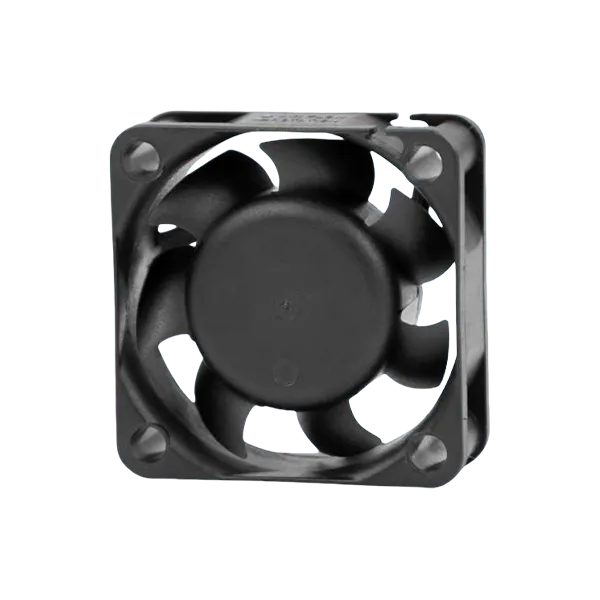

Axial Fan 40*40*15mm
It achieves functions such as heat dissipation by axially pushing air, and is often used in electronic devices with high space requirements and low heat dissipation needs, such as small computer hosts and precision instruments. It has the advantages of small size, easy installation, and large air volume, and can effectively dissipate heat for the equipment to ensure its stable operation.
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | CE |

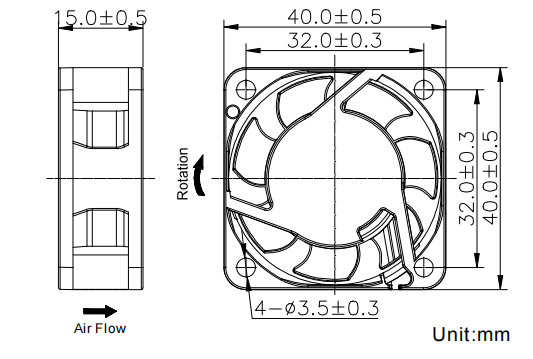

Dimensions Drawing

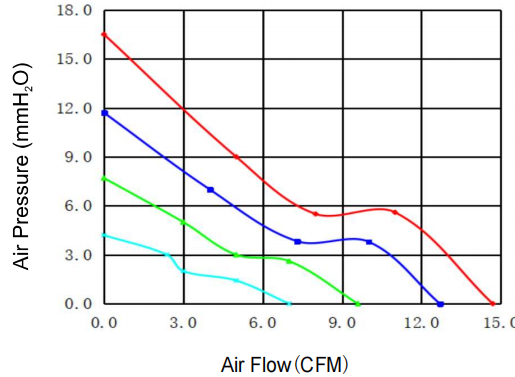

Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | 9 | |
QD4015D5B | 5 | 3.5-5.7 | 0.50 | 12000 | 14.7 | 16.5 | 45 | 25 |
QD4015H5B | 3.5-5.7 | 0.40 | 10000 | 12.3 | 11.7 | 40 | ||
QD4015M5B | 3.5-5.7 | 0.30 | 8000 | 9.6 | 7.7 | 34 | ||
QD4015L5B | 3.5-5.7 | 0.20 | 6000 | 7.0 | 4.2 | 27 | ||
QD4015D1B | 12 | 6.0-13.8 | 0.30 | 12000 | 14.7 | 16.5 | 45 | |
QD4015H1B | 6.0-13.8 | 0.26 | 10000 | 12.3 | 11.7 | 40 | ||
QD4015M1B | 6.0-13.8 | 0.16 | 8000 | 9.6 | 7.7 | 34 | ||
QD4015L1B | 6.0-13.8 | 0.10 | 6000 | 7.0 | 4.2 | 27 | ||
QD4015D2B | 24 | 12.0-27.6 | 0.15 | 12000 | 14.7 | 16.5 | 45 | |
QD4015H2B | 12.0-27.6 | 0.13 | 10000 | 12.3 | 11.7 | 40 | ||
QD4015M2B | 12.0-27.6 | 0.08 | 8000 | 9.6 | 7.7 | 34 | ||
QD4015L2B | 12.0-27.6 | 0.06 | 6000 | 7.0 | 4.2 | 27 |
