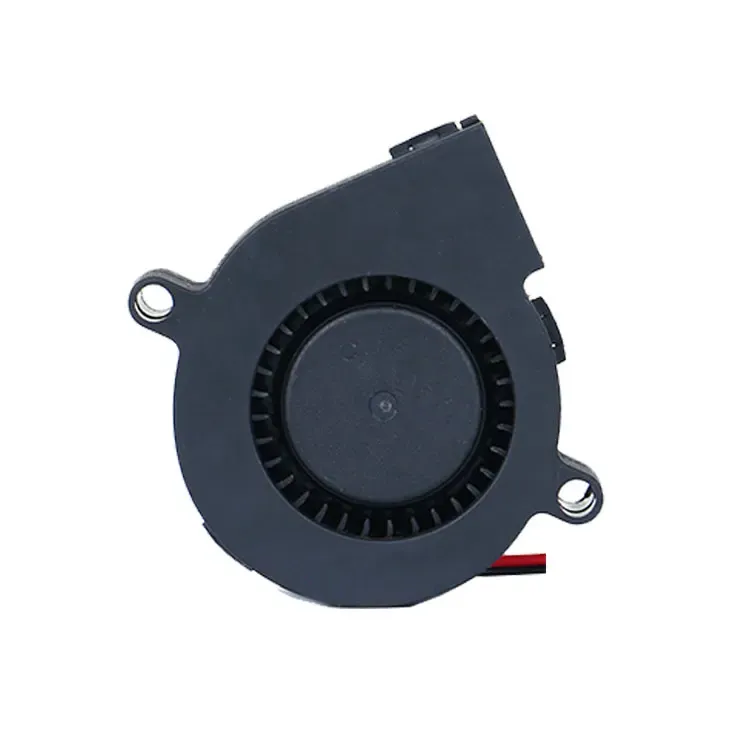

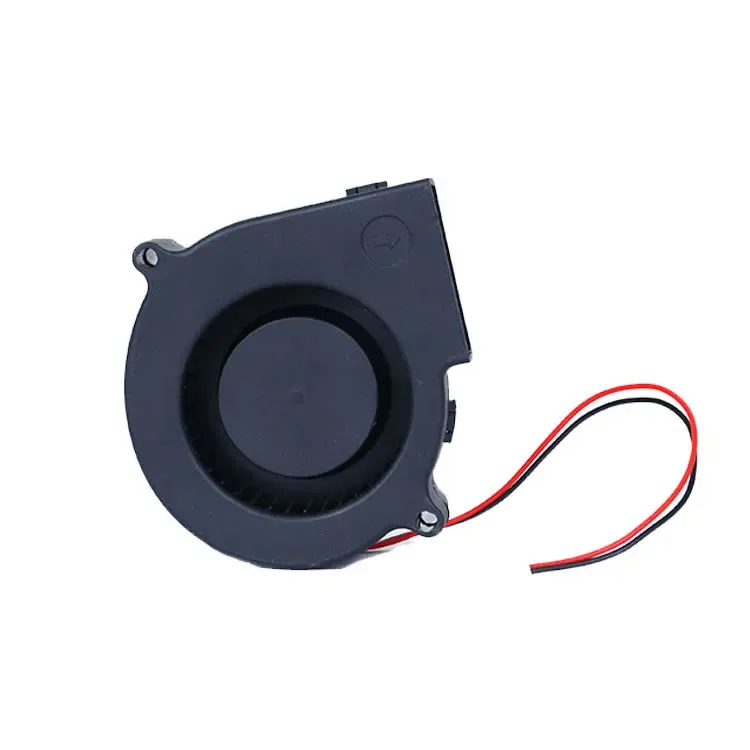

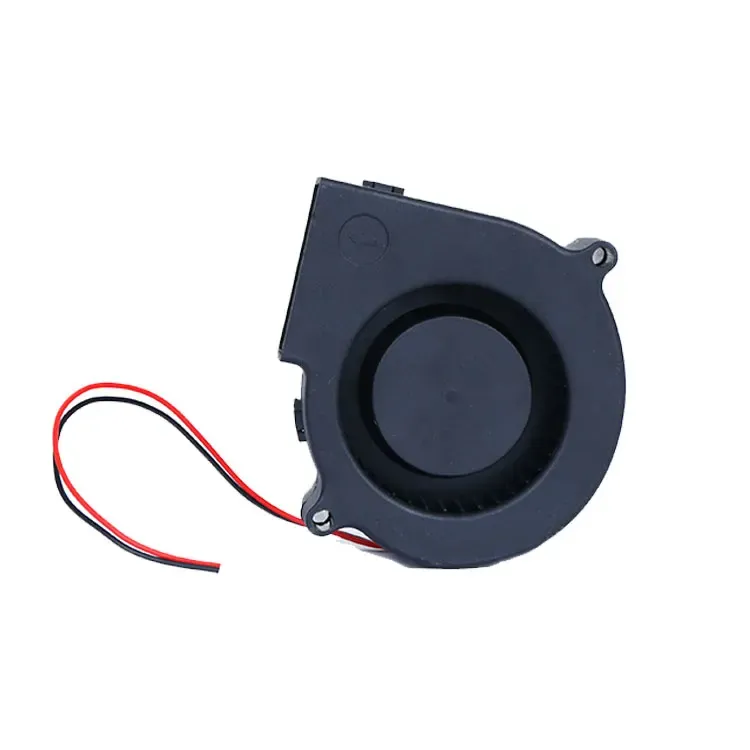

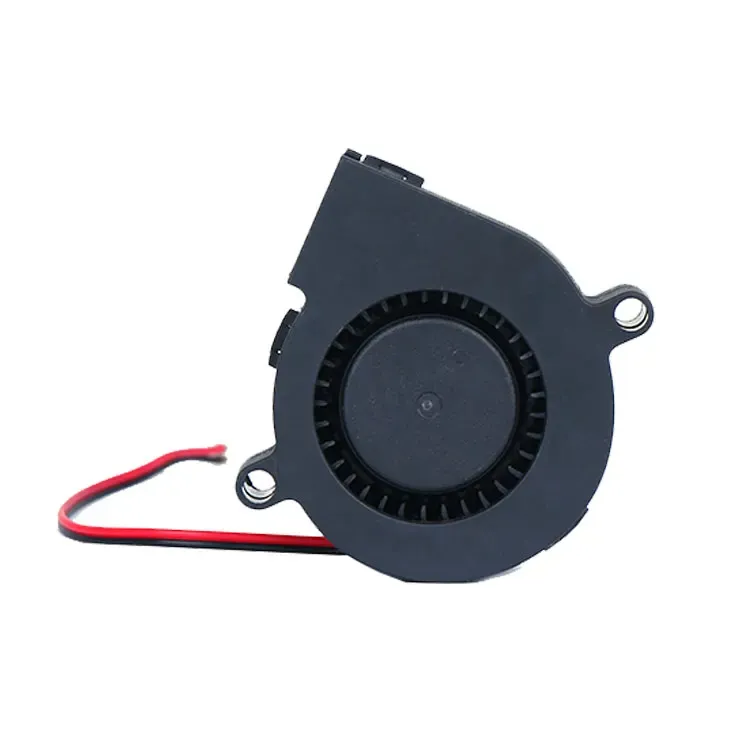

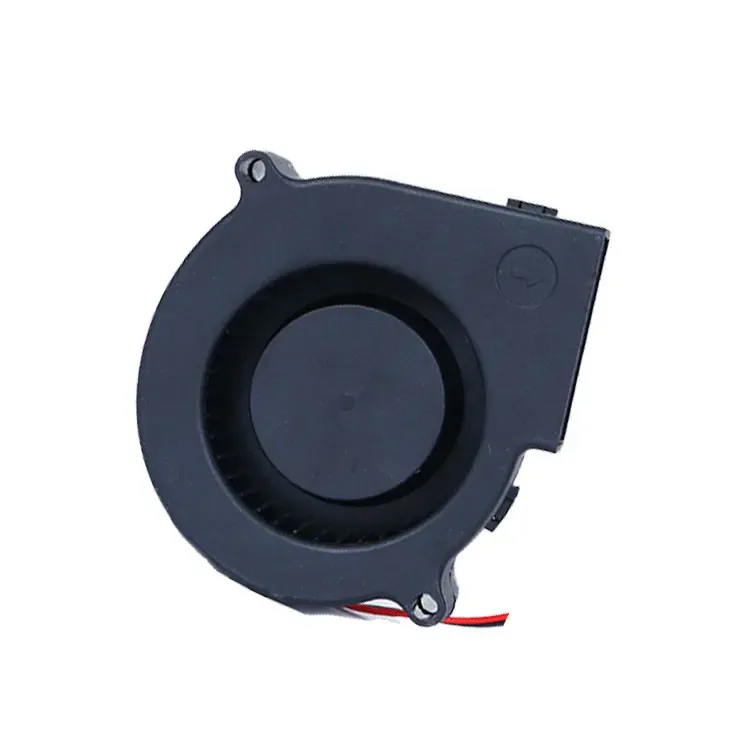

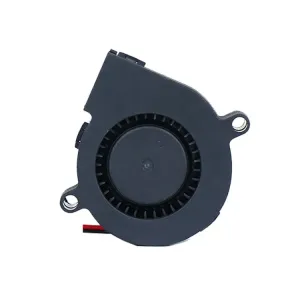

The 9733 DC Brushless blower fan is developed for equipment where cooling space is limited but effective airflow is required. Its compact structure allows it to be installed inside small devices while providing a focused airflow path for heat removal.
Different from traditional Axial fans, Blower fans are designed to guide air through a specific outlet, making them suitable for products with internal channels, narrow spaces, or concentrated heat sources.
Main Product Information
| Speed: | 2000-5000 RPM |
| Airflow: | 5.9-13.96CFM |
| Pressure: | 3.58-19.9 mmAq |
| Noise: | 25.5-46.4 dBA |
| Voltage: | 12v -- 24V |
| Motor : | DC Brushless external rotor motor |
| Frame: | PBT |
| Impeller: | PBT |
| Bearing System: | 2 Ball |
| Insulation: | Class A |
| Operation Temperture: | -10℃ - 70℃ |
| Weight: | 80g |
Many compact electronic devices generate heat in specific areas such as power modules, circuit boards, optical components, and control units. A concentrated airflow design helps deliver cooling air directly toward these heat sources.
The 9733 blower fan provides a practical solution for equipment that needs controlled airflow rather than general ventilation.
With a 97x33mm size, this blower fan is suitable for products where installation space is restricted. The compact design makes it easier to integrate into internal layouts, cooling channels, and customized equipment structures.
It is widely used in compact electronic products where maintaining a small product size while improving thermal performance is important.
This DC blower fan supports 12V and 24V applications, making it compatible with various electronic and industrial systems.
The DC brushless motor design provides stable operation and is suitable for equipment powered by DC circuits, control boards, adapters, and compact power systems.
The fan uses PBT material for stable mechanical performance and reliable operation. The lightweight structure helps maintain efficient rotation while supporting long-term cooling applications.
Different bearing configurations can be selected according to operating requirements, helping customers balance service life, noise level, and performance.
Projector cooling systems
Electronic equipment ventilation
Control system cooling
Power module heat dissipation
Communication devices
Testing equipment
Compact industrial equipment
Small ventilation modules
Embedded systems
OEM cooling projects
Modern electronic products continue to become smaller while requiring better heat control. Traditional cooling solutions may not fit certain compact designs, especially when airflow needs to reach a specific internal area.
The 9733 blower fan helps solve this challenge by providing directed airflow in a small installation space, supporting more efficient internal temperature management.
This blower fan can be used in both new product development and replacement applications. Its compact size and flexible power options make it easier to integrate into different equipment structures.
For engineers and manufacturers, it provides a practical cooling component for improving product reliability without significantly increasing system size.
XEONfan technology provides customized cooling solutions according to different application requirements.
Customization options may include voltage, cable length, connector type, bearing selection, speed configuration, airflow direction, label, and packaging.
For special cooling projects, xeonfan Technology can assist customers in selecting suitable fan specifications based on installation space, airflow demand, noise requirements, and operating environment.
XEONFAN Technology specializes in AC and DC brushless Cooling Fans, blower fans, motors, and customized heat dissipation solutions.
The company integrates research and development, manufacturing, sales, and service, providing cooling products for computers, communication equipment, industrial equipment, new energy applications, medical devices, home appliances, and other industries.
A1: This is a 9733 DC brushless blower fan designed for compact equipment cooling and focused airflow applications.
A2: The fan size is 97x33mm.
A3: This model supports 12V and 24V DC applications.
A4: A blower fan provides concentrated airflow through a specific outlet direction, making it suitable for narrow spaces and targeted cooling requirements.
A5: It can be used in projectors, electronic equipment, control systems, power modules, communication devices, and compact cooling structures.
A6: The fan uses PBT material for the frame and impeller, providing stable structure and reliable performance.
A7: Yes. Different bearing options, including sleeve bearing, hydraulic bearing, and dual ball bearing, can be selected according to application requirements.
A8: Yes. XEONFAN Technology can customize voltage, cable length, connector type, bearing type, speed, label, packaging, and other requirements according to customer projects.
The 9733 DC Brushless blower fan is developed for equipment where cooling space is limited but effective airflow is required. Its compact structure allows it to be installed inside small devices while providing a focused airflow path for heat removal.
Different from traditional Axial fans, Blower fans are designed to guide air through a specific outlet, making them suitable for products with internal channels, narrow spaces, or concentrated heat sources.
Main Product Information
| Speed: | 2000-5000 RPM |
| Airflow: | 5.9-13.96CFM |
| Pressure: | 3.58-19.9 mmAq |
| Noise: | 25.5-46.4 dBA |
| Voltage: | 12v -- 24V |
| Motor : | DC Brushless external rotor motor |
| Frame: | PBT |
| Impeller: | PBT |
| Bearing System: | 2 Ball |
| Insulation: | Class A |
| Operation Temperture: | -10℃ - 70℃ |
| Weight: | 80g |
Many compact electronic devices generate heat in specific areas such as power modules, circuit boards, optical components, and control units. A concentrated airflow design helps deliver cooling air directly toward these heat sources.
The 9733 blower fan provides a practical solution for equipment that needs controlled airflow rather than general ventilation.
With a 97x33mm size, this blower fan is suitable for products where installation space is restricted. The compact design makes it easier to integrate into internal layouts, cooling channels, and customized equipment structures.
It is widely used in compact electronic products where maintaining a small product size while improving thermal performance is important.
This DC blower fan supports 12V and 24V applications, making it compatible with various electronic and industrial systems.
The DC brushless motor design provides stable operation and is suitable for equipment powered by DC circuits, control boards, adapters, and compact power systems.
The fan uses PBT material for stable mechanical performance and reliable operation. The lightweight structure helps maintain efficient rotation while supporting long-term cooling applications.
Different bearing configurations can be selected according to operating requirements, helping customers balance service life, noise level, and performance.
Projector cooling systems
Electronic equipment ventilation
Control system cooling
Power module heat dissipation
Communication devices
Testing equipment
Compact industrial equipment
Small ventilation modules
Embedded systems
OEM cooling projects
Modern electronic products continue to become smaller while requiring better heat control. Traditional cooling solutions may not fit certain compact designs, especially when airflow needs to reach a specific internal area.
The 9733 blower fan helps solve this challenge by providing directed airflow in a small installation space, supporting more efficient internal temperature management.
This blower fan can be used in both new product development and replacement applications. Its compact size and flexible power options make it easier to integrate into different equipment structures.
For engineers and manufacturers, it provides a practical cooling component for improving product reliability without significantly increasing system size.
XEONfan technology provides customized cooling solutions according to different application requirements.
Customization options may include voltage, cable length, connector type, bearing selection, speed configuration, airflow direction, label, and packaging.
For special cooling projects, xeonfan Technology can assist customers in selecting suitable fan specifications based on installation space, airflow demand, noise requirements, and operating environment.
XEONFAN Technology specializes in AC and DC brushless Cooling Fans, blower fans, motors, and customized heat dissipation solutions.
The company integrates research and development, manufacturing, sales, and service, providing cooling products for computers, communication equipment, industrial equipment, new energy applications, medical devices, home appliances, and other industries.
A1: This is a 9733 DC brushless blower fan designed for compact equipment cooling and focused airflow applications.
A2: The fan size is 97x33mm.
A3: This model supports 12V and 24V DC applications.
A4: A blower fan provides concentrated airflow through a specific outlet direction, making it suitable for narrow spaces and targeted cooling requirements.
A5: It can be used in projectors, electronic equipment, control systems, power modules, communication devices, and compact cooling structures.
A6: The fan uses PBT material for the frame and impeller, providing stable structure and reliable performance.
A7: Yes. Different bearing options, including sleeve bearing, hydraulic bearing, and dual ball bearing, can be selected according to application requirements.
A8: Yes. XEONFAN Technology can customize voltage, cable length, connector type, bearing type, speed, label, packaging, and other requirements according to customer projects.
