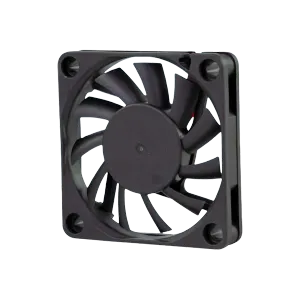

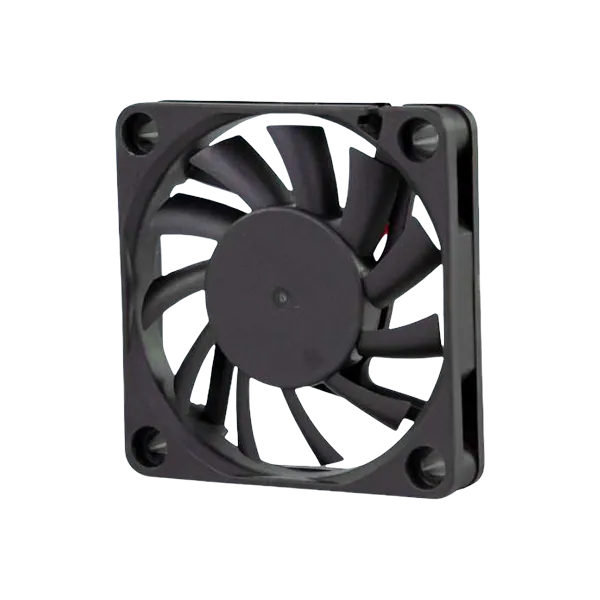

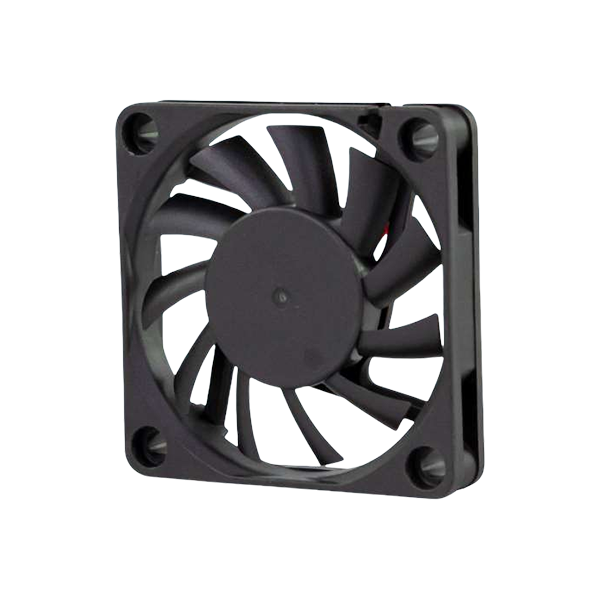

Axial Fan 60*60*10mm

Key features include a large air volume, a compact structure, and a small footprint. It is frequently employed for cooling applications in devices with strict spatial limitations, such as small computer hosts and precision instruments. The fan blades are driven by a motor to produce axial airflow, achieving efficient heat dissipation while maintaining low noise levels.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

Dimensions Drawing

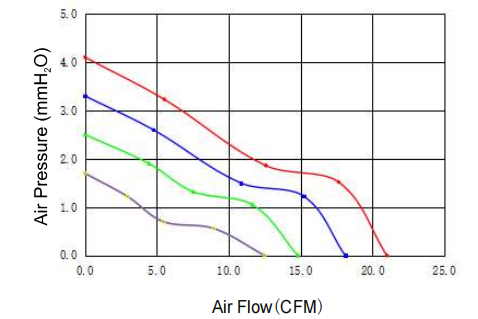

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QD6010H5B	5	3.5-5.7	0.40	4000	18.1	3.3	28	23
QD6010M5B		3.5-5.7	0.30	3500	14.8	2.5	26
QD6010L5B		3.5-5.7	0.25	3000	12.5	1.7	23
QD6010D1B	12	6.0-13.8	0.28	5000	21.0	4.1	32
QD6010H1B		6.0-13.8	0.23	4000	18.1	3.3	28
QD6010M1B		6.0-13.8	0.18	3500	14.8	2.5	26
QD6010L1B		6.0-13.8	0.13	3000	12.5	1.7	23
QD6010D2B	24	12.0-27.6	0.14	5000	21.0	4.1	32
QD6010H2B		12.0-27.6	0.10	4000	18.1	3.3	28
QD6010M2B		12.0-27.6	0.08	3500	14.8	2.5	26
QD6010L2B		12.0-27.6	0.06	3000	12.5	1.7	23
