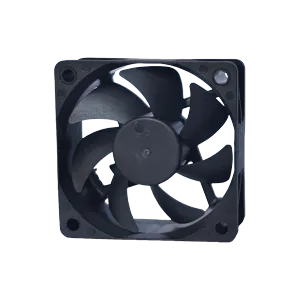

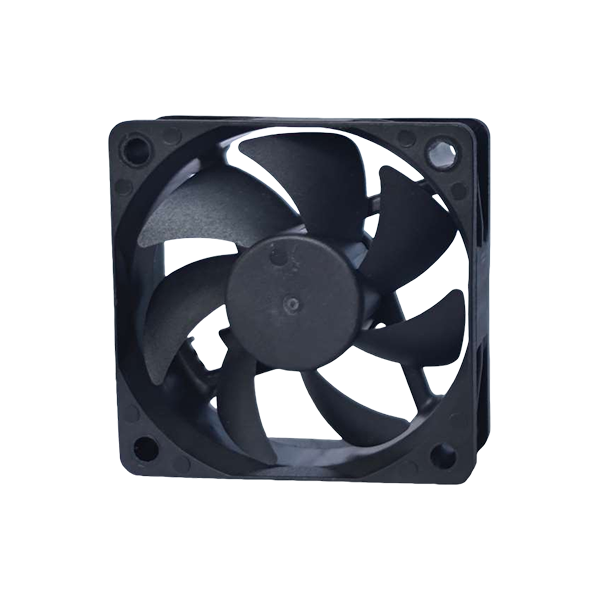

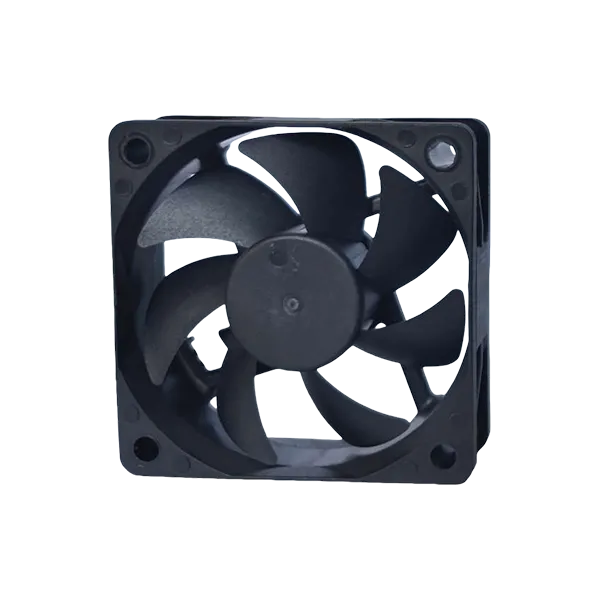

Axial Fan 60*60*15mm

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

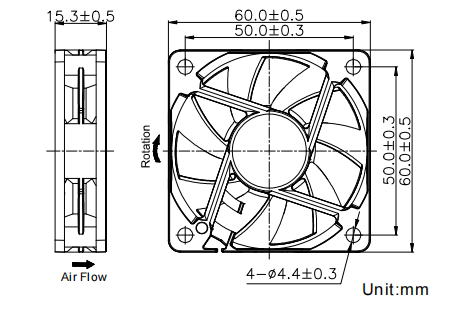

Dimensions Drawing

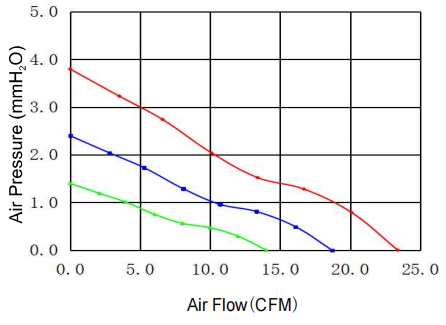

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	g
QD6015H5B	5	3.5-5.7	0.50	5000	23.4	3.8	37	32
QD6015M5B		3.5-5.7	0.35	4000	18.7	2.4	32
QD6015L5B		3.5-5.7	0.22	3000	14.0	1.4	24
QD6015H1B	12	6.0-13.8	0.20	5000	23.4	3.8	37
QD6015M1B		6.0-13.8	0.15	4000	18.7	2.4	32
QD6015L1B		6.0-13.8	0.10	3000	14.0	1.4	24
QD6015H2B	24	12.0-27.6	0.12	5000	23.4	3.8	37
QD6015M2B		12.0-27.6	0.08	4000	18.7	2.4	32
QD6015L2B		12.0-27.6	0.06	3000	14.0	1.4	24
