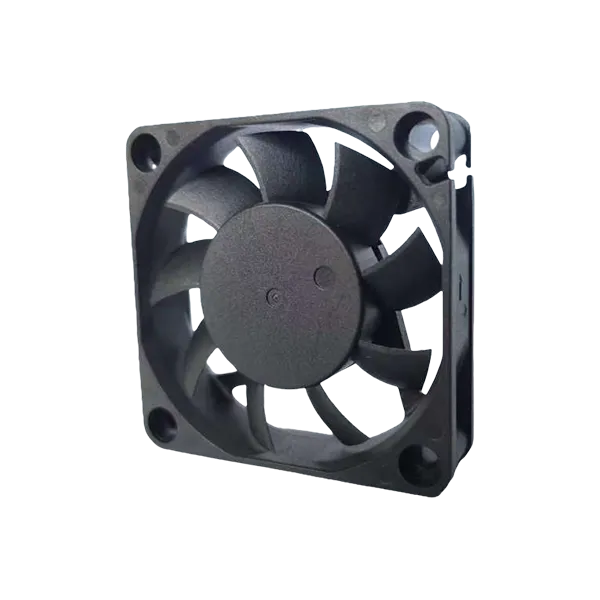

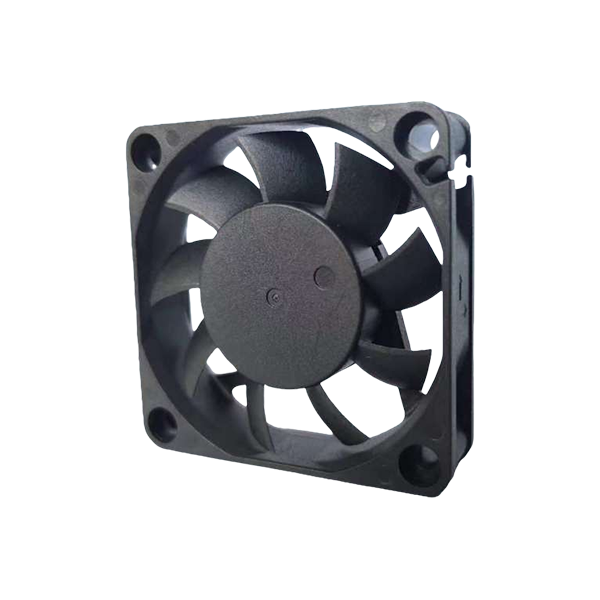

Axial Fan 60*60*15mm

This is a commonly used ventilation and air exchange device. By rotating its blades, it propels air to flow in the axial direction, featuring high airflow volume and low air pressure. It has been widely applied in various scenarios, including industrial plant ventilation, air conditioning systems, and automotive heat dissipation. With a simple structure, ease of installation, and low operational costs, this device effectively enhances air circulation, thereby fulfilling the heat dissipation and ventilation requirements of diverse environments.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

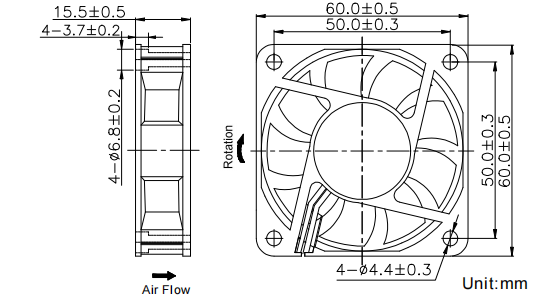

Dimensions Drawing

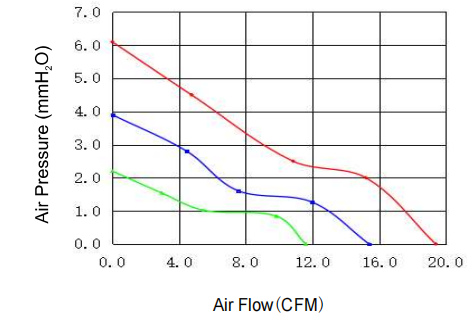

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QD6015H5B	5	3.5-5.7	0.50	5000	19.4	6.1	37	44
QD6015M5B		3.5-5.7	0.35	4000	15.4	3.9	32
QD6015L5B		3.5-5.7	0.22	3000	11.6	2.2	24
QD6015H1B	12	6.0-13.8	0.20	5000	19.4	6.1	37
QD6015M1B		6.0-13.8	0.15	4000	15.4	3.9	32
QD6015L1B		6.0-13.8	0.10	3000	11.6	2.2	24
QD6015H2B	24	12.0-27.6	0.12	5000	19.4	6.1	37
QD6015M2B		12.0-27.6	0.08	4000	15.4	3.9	32
QD6015L2B		12.0-27.6	0.06	3000	11.6	2.2	24
