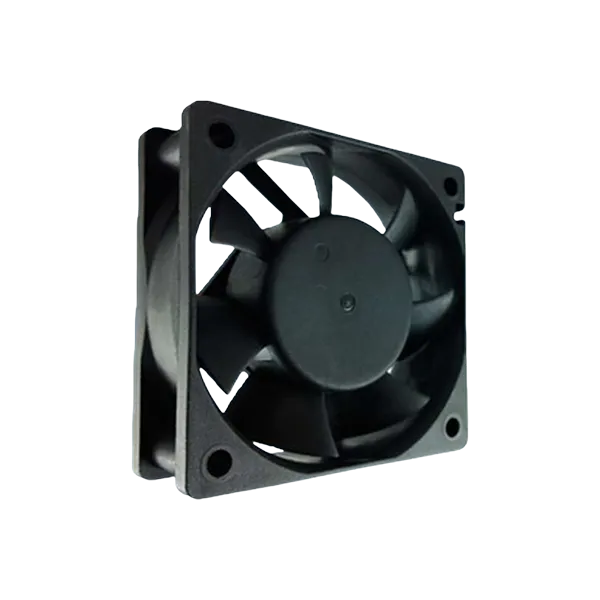

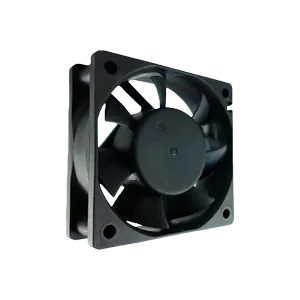

Axial Fan 60*60*20mm
Compact in size, it is convenient to install in equipment with limited space. Plastic blades and frames are often used, which are light in weight. The voltage is selectable as 5V, 12V, 24V, etc. The rotational speed ranges from 3500 to 5000 rpm. It can provide an air volume of 12.96 to 22.77 cfm and is suitable for scenarios such as equipment cooling and ventilation.
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | CE |

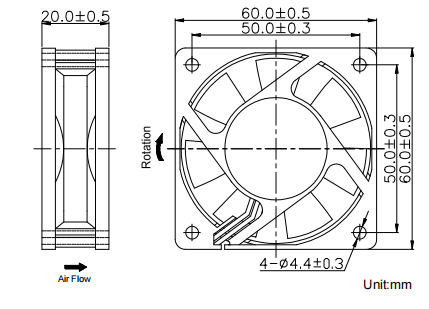

Dimensions Drawing

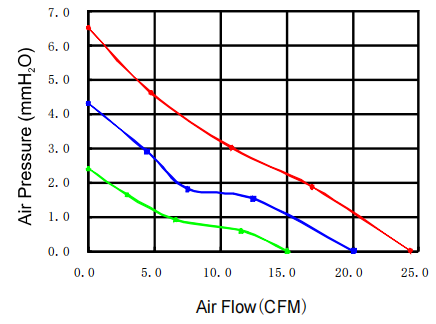

Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | 9 | |
QD6020H5B | 5 | 3.5-5.7 | 0.40 | 5000 | 24.4 | 6.5 | 38 | 50 |
QD6020M5B | 3.5-5.7 | 0.30 | 4000 | 20.1 | 4.3 | 32 | ||
QD6020L5B | 3.5-5.7 | 0.20 | 3000 | 15.1 | 2.4 | 24 | ||
QD6020H1B | 12 | 6.0-13.8 | 0.25 | 5000 | 24.4 | 6.5 | 38 | |
QD6020M1B | 6.0-13.8 | 0.18 | 4000 | 20.1 | 4.3 | 32 | ||
QD6020L1B | 6.0-13.8 | 0.10 | 3000 | 15.1 | 2.4 | 24 | ||
QD6020H2B | 24 | 12.0-27.6 | 0.15 | 5000 | 24.4 | 6.5 | 38 | |
QD6020M2B | 12.0-27.6 | 0.12 | 4000 | 20.1 | 4.3 | 32 | ||
QD6020L2B | 12.0-27.6 | 0.06 | 3000 | 15.1 | 2.4 | 24 |

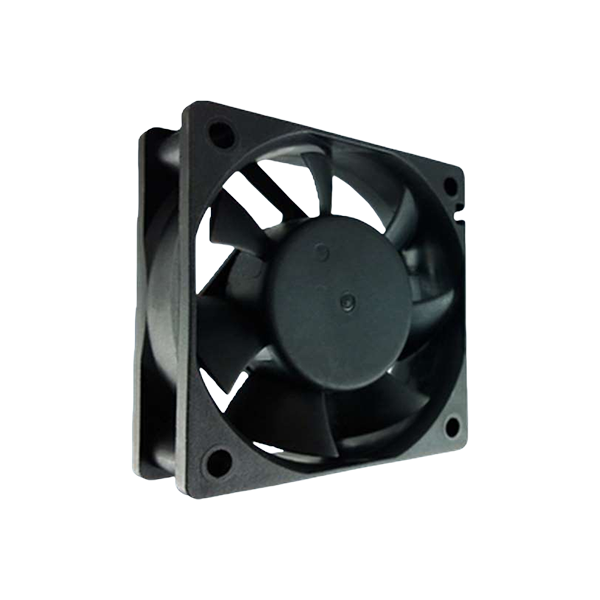

Axial Fan 60*60*20mm
Compact in size, it is convenient to install in equipment with limited space. Plastic blades and frames are often used, which are light in weight. The voltage is selectable as 5V, 12V, 24V, etc. The rotational speed ranges from 3500 to 5000 rpm. It can provide an air volume of 12.96 to 22.77 cfm and is suitable for scenarios such as equipment cooling and ventilation.
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | CE |
Dimensions Drawing
Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | 9 | |
QD6020H5B | 5 | 3.5-5.7 | 0.40 | 5000 | 24.4 | 6.5 | 38 | 50 |
QD6020M5B | 3.5-5.7 | 0.30 | 4000 | 20.1 | 4.3 | 32 | ||
QD6020L5B | 3.5-5.7 | 0.20 | 3000 | 15.1 | 2.4 | 24 | ||
QD6020H1B | 12 | 6.0-13.8 | 0.25 | 5000 | 24.4 | 6.5 | 38 | |
QD6020M1B | 6.0-13.8 | 0.18 | 4000 | 20.1 | 4.3 | 32 | ||
QD6020L1B | 6.0-13.8 | 0.10 | 3000 | 15.1 | 2.4 | 24 | ||
QD6020H2B | 24 | 12.0-27.6 | 0.15 | 5000 | 24.4 | 6.5 | 38 | |
QD6020M2B | 12.0-27.6 | 0.12 | 4000 | 20.1 | 4.3 | 32 | ||
QD6020L2B | 12.0-27.6 | 0.06 | 3000 | 15.1 | 2.4 | 24 |
