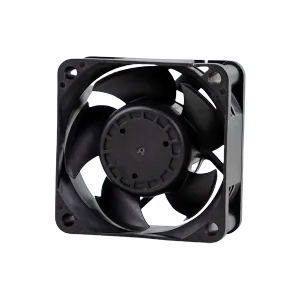

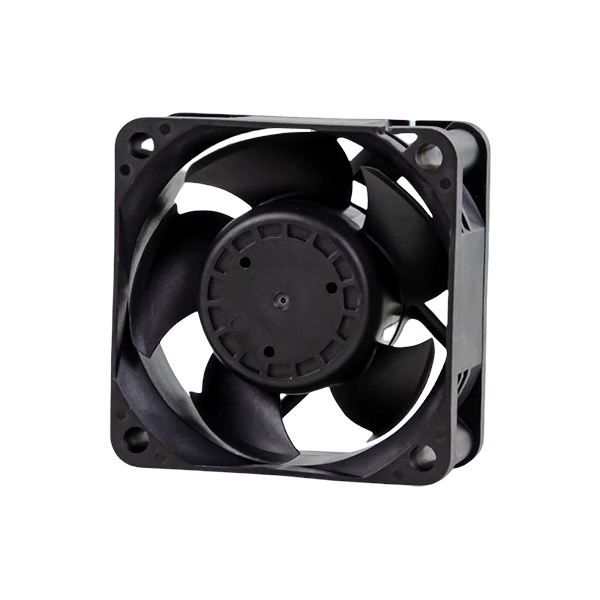

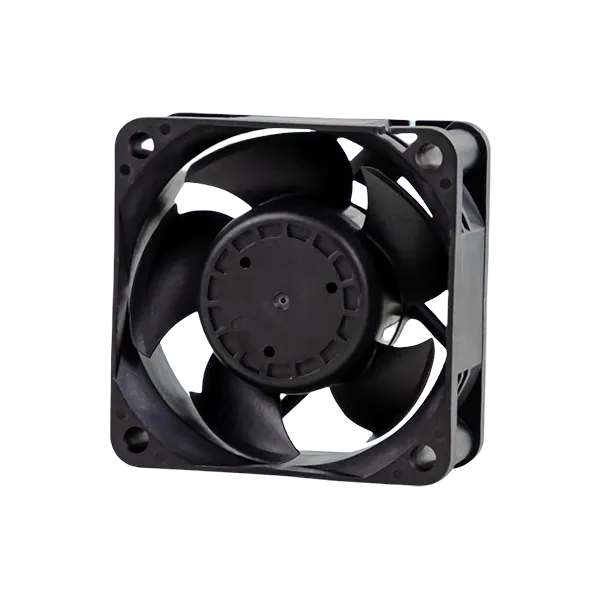

Axial Fan 60*60*25mm

The motor drives the fan blades to rotate, causing the airflow to flow along the axial direction for heat dissipation. It features a compact structure and easy installation. It can provide good heat dissipation effect in a limited space and is often used in computers, servers, household appliances and other equipment to help them maintain an appropriate working temperature.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	UL/CUL CE

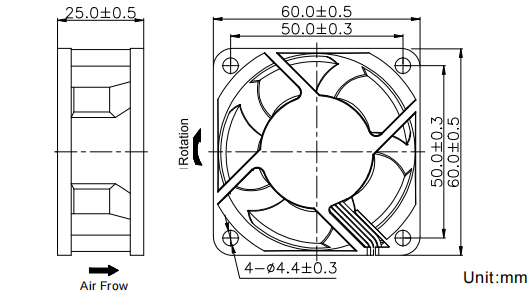

Dimensions Drawing

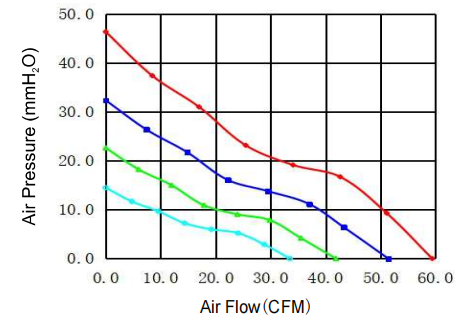

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	g
QD6025D1B	12	6.0-13.8	1.20	14000	59.4	46.6	58	70
QD6025H1B		6.0-13.8	0.80	12000	51.4	32.4	55
QD6025M1B		6.0-13.8	0.50	10000	42.0	22.7	52
QD6025L1B		6.0-13.8	0.30	8000	33.5	14.5	48
QD6025D2B	24	12.0-27.6	0.80	14000	59.4	46.6	58
QD6025H2B		12.0-27.6	0.60	12000	51.4	32.4	55
QD6025M2B		12.0-27.6	0.40	10000	42.0	22.7	52
QD6025L2B		12.0-27.6	0.20	8000	33.5	14.5	48
QD6025D4B	48	24.0-55.2	0.30	14000	59.4	46.6	58
QD6025H4B		24.0-55.2	0.15	12000	51.4	32.4	55
QD6025M4B		24.0-55.2	0.12	10000	42.0	22.7	52
QD6025L4B		24.0-55.2	0.08	8000	33.5	14.5	48
