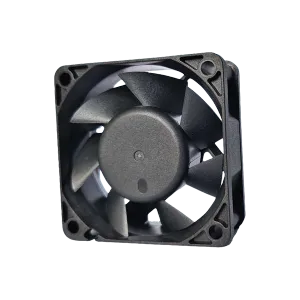

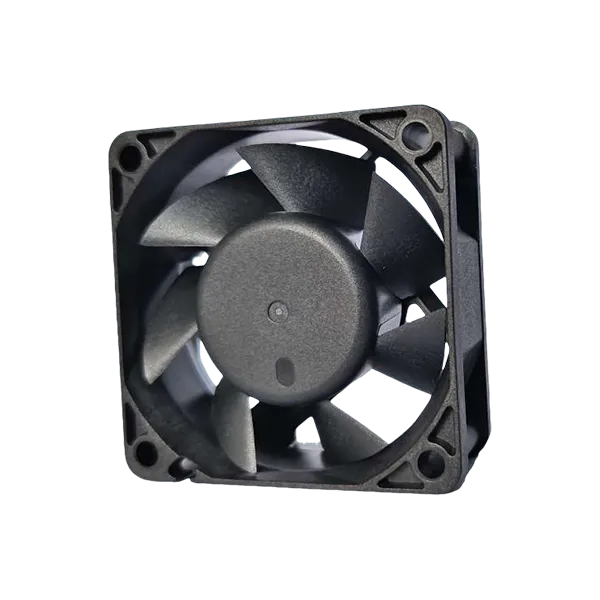

Axial Fan 60*60*25mm
The motor drives the fan blades to rotate, causing the airflow to flow along the axial direction for heat dissipation. It features a compact structure and easy installation. It can provide good heat dissipation effect in a limited space and is often used in computers, servers, household appliances and other equipment to help them maintain an appropriate working temperature.
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | UL/CUL CE |

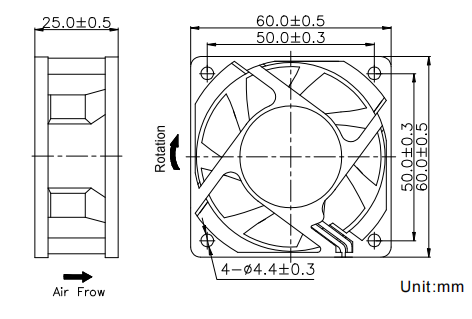

Dimensions Drawing

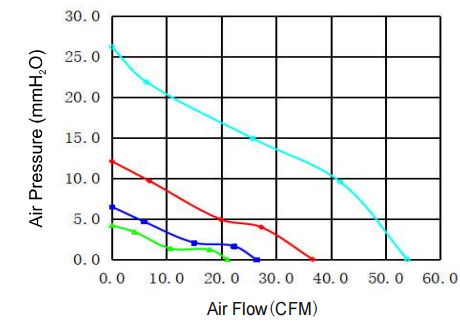

Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | 9 | |
QD6025D1B | 12 | 6.0-13.8 | 1.20 | 10000 | 54.0 | 26.2 | 55 | 65 |
QD6025H1B | 6.0-13.8 | 0.80 | 6800 | 36.7 | 12.1 | 48 | ||
QD6025M1B | 6.0-13.8 | 0.40 | 5000 | 26.4 | 6.5 | 36 | ||
QD6025L1B | 6.-13.8 | 0.20 | 4000 | 21.1 | 4.2 | 30 | ||
QD6025D2B | 24 | 12.0-27.6 | 0.80 | 10000 | 54.0 | 26.2 | 55 | |
QD6025H2B | 12.0-27.6 | 0.60 | 6800 | 36.7 | 12.1 | 48 | ||
QD6025M2B | 12.0-27.6 | 0.40 | 5000 | 26.4 | 6.5 | 36 | ||
QD6025L2B | 12.0-27.6 | 0.20 | 4000 | 21.1 | 4.2 | 30 | ||
QD6025D4B | 48 | 24.0-55.2 | 0.30 | 10000 | 54.0 | 26.2 | 55 | |
QD6025H4B | 24.0-55.2 | 0.15 | 6800 | 36.7 | 12.1 | 48 | ||
QD6025M4B | 24.0-55.2 | 0.08 | 5000 | 26.4 | 6.5 | 36 | ||
QD6025L4B | 24.0-55.2 | 0.06 | 4000 | 21.1 | 4.2 | 30 |

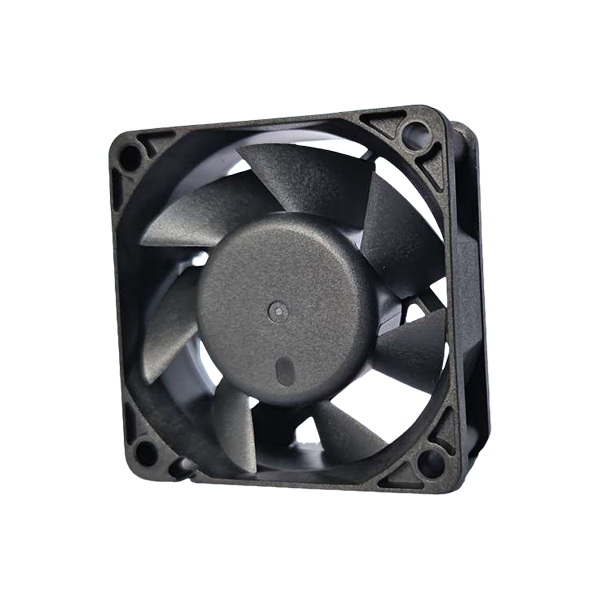

Axial Fan 60*60*25mm
The motor drives the fan blades to rotate, causing the airflow to flow along the axial direction for heat dissipation. It features a compact structure and easy installation. It can provide good heat dissipation effect in a limited space and is often used in computers, servers, household appliances and other equipment to help them maintain an appropriate working temperature.
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | UL/CUL CE |
Dimensions Drawing
Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | 9 | |
QD6025D1B | 12 | 6.0-13.8 | 1.20 | 10000 | 54.0 | 26.2 | 55 | 65 |
QD6025H1B | 6.0-13.8 | 0.80 | 6800 | 36.7 | 12.1 | 48 | ||
QD6025M1B | 6.0-13.8 | 0.40 | 5000 | 26.4 | 6.5 | 36 | ||
QD6025L1B | 6.-13.8 | 0.20 | 4000 | 21.1 | 4.2 | 30 | ||
QD6025D2B | 24 | 12.0-27.6 | 0.80 | 10000 | 54.0 | 26.2 | 55 | |
QD6025H2B | 12.0-27.6 | 0.60 | 6800 | 36.7 | 12.1 | 48 | ||
QD6025M2B | 12.0-27.6 | 0.40 | 5000 | 26.4 | 6.5 | 36 | ||
QD6025L2B | 12.0-27.6 | 0.20 | 4000 | 21.1 | 4.2 | 30 | ||
QD6025D4B | 48 | 24.0-55.2 | 0.30 | 10000 | 54.0 | 26.2 | 55 | |
QD6025H4B | 24.0-55.2 | 0.15 | 6800 | 36.7 | 12.1 | 48 | ||
QD6025M4B | 24.0-55.2 | 0.08 | 5000 | 26.4 | 6.5 | 36 | ||
QD6025L4B | 24.0-55.2 | 0.06 | 4000 | 21.1 | 4.2 | 30 |
