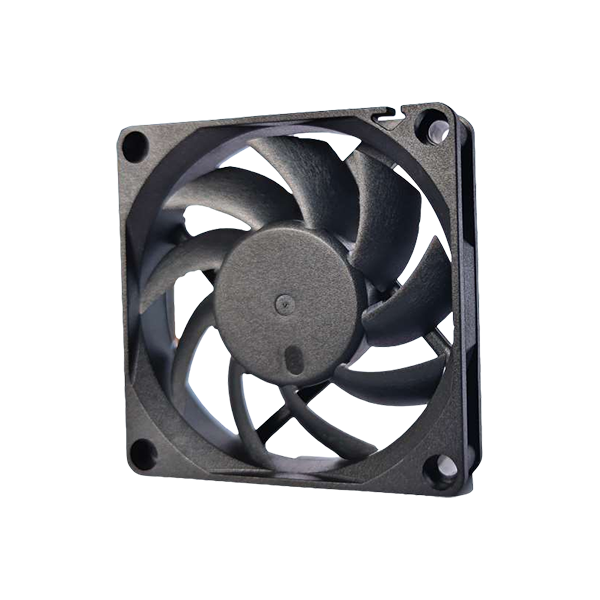

Axial Fan 70*70*15mm
It often offers multiple speed options to meet different heat dissipation requirements. Some models have an automatic restart protection function. Its features are compact structure, thinness and lightness, and it can play a role in heat dissipation within a limited space.
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | CE |

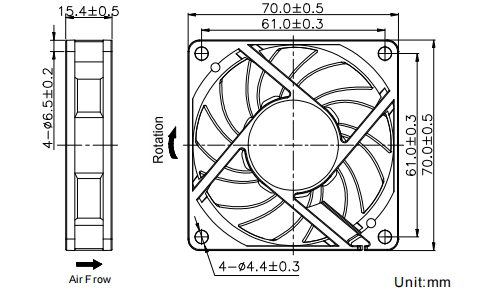

Dimensions Drawing

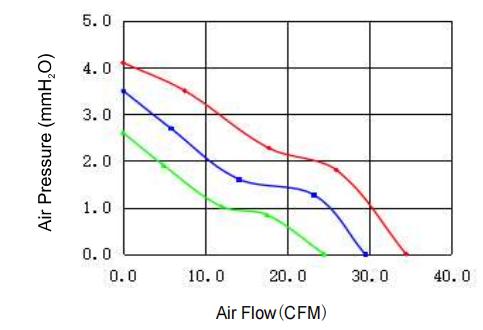

Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
QD7015M5B | 5 | 3.5-5.7 | 0.45 | 3500 | 29.5 | 3.5 | 29 | 45 |
QD7015L5B | 3.5-5.7 | 0.35 | 3000 | 24.5 | 2.6 | 27 | ||
QD7015H1B | 12 | 6.0-13.8 | 0.30 | 4000 | 34.5 | 4.1 | 31 | |
QD7015M1B | 6.0-13.8 | 0.25 | 3500 | 29.5 | 3.5 | 29 | ||
QD7015L1B | 6.0-13.8 | 0.20 | 3000 | 24.5 | 2.6 | 27 | ||
QD7015H2B | 24 | 12.0-27.6 | 0.14 | 4000 | 34.5 | 4.1 | 31 | |
QD7015M2B | 12.0-27.6 | 0.11 | 3500 | 29.5 | 3.5 | 29 | ||
QD7015L2B | 12.0-27.6 | 0.08 | 3000 | 24.5 | 2.6 | 27 |

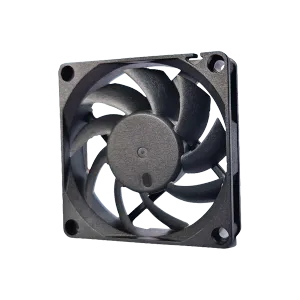

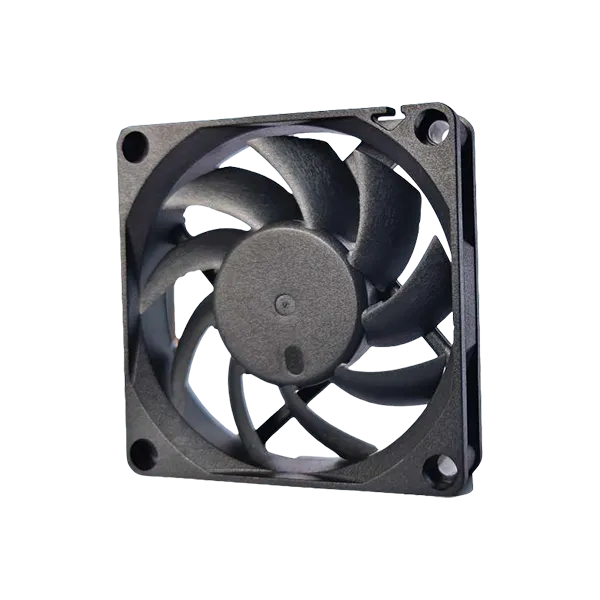

Axial Fan 70*70*15mm
