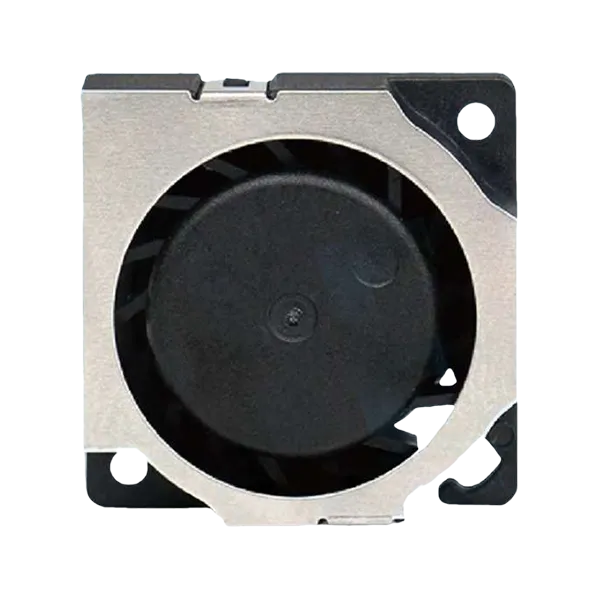

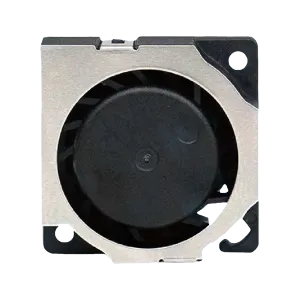

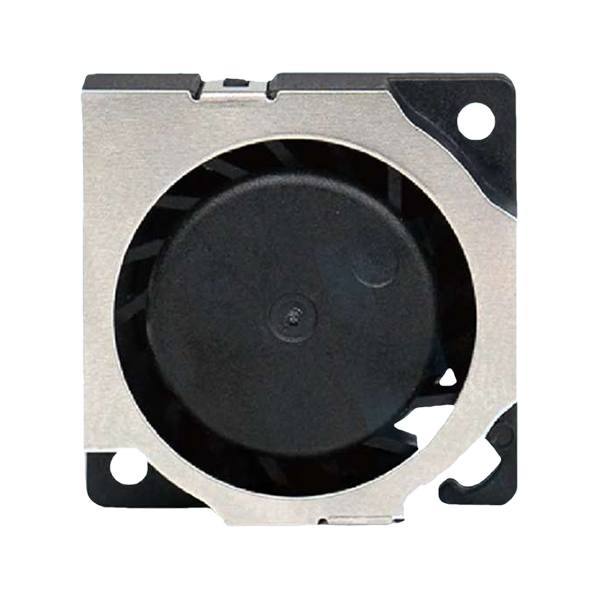

Blower fan 20*20*6mm

With dimensions of only 20×20×6 millimeters, it is compact and lightweight, and can be flexibly embedded in electronic devices with limited space. This fan adopts a high-efficiency blade and precise motor design, which can achieve stable wind output in a small size, effectively assist in heat dissipation, and has low operating noise. It works quietly without disturbance and is suitable for small smart wearable devices such as smartwatches and TWS headphones.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20.Max.IP68
Expected Life	30000hrs/40℃
SafetyAppro	CE

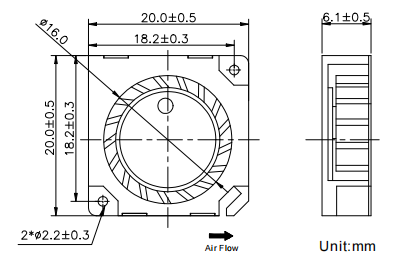

Dimensions Drawing

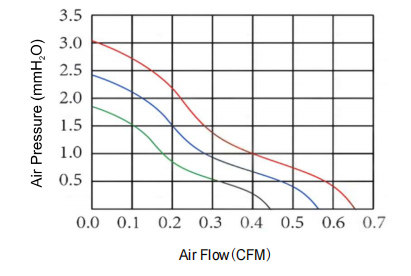

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QB2006H5S	5	4.0-5.7	0.16	15000	0.6	3.0	36.0	6
QB2006M5S		4.0-5.7	0.12	12000	0.5	2.4	28.8
QB2006L5S		4.0-5.7	0.08	9000	0.4	1.8	21.6
QB2006H1S	12	7.0-13.8	0.05	15000	0.6	3.0	36.0
QB2006M1S		7.0-13.8	0.03	12000	0.5	2.4	28.8
QB2006L1S		7.0-13.8	0.02	9000	0.4	1.8	21.6
