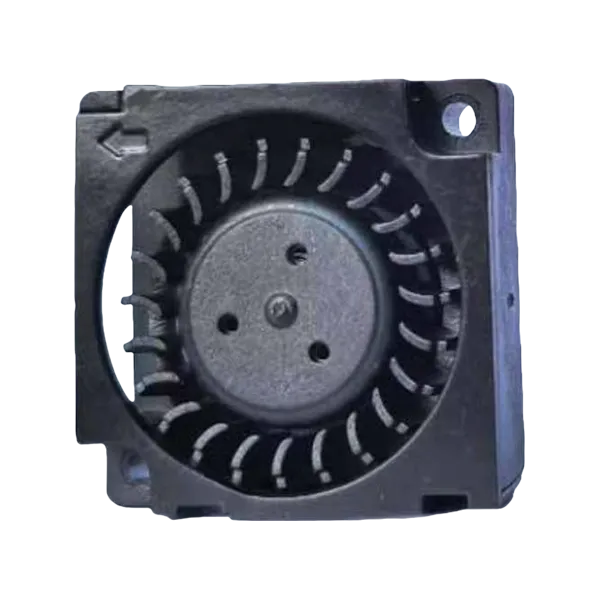

Blower Fan 30*30*10mm China Manufacturers - - Shenzhen Zhiqiangxing Technology Co., Ltd

Blower Fan 303010mm

Blower Fan 30*30*10mmCompact and lightweight, it saves installation space and is suitable for small electronic products. It is driven by a high-efficiency motor, which can quickly form a directional airflow to meet the heat dissipation requirements of precision components. It features low noise, low energy consumption and a long service life during operation.General SpecificationsMotorDC Brushless motorFrame MaterialPlastic(UL94V-0)Impeller MaterialPlastic(UL94V-0)FunctionPWM/FG/RD optiona...

INQUIRY

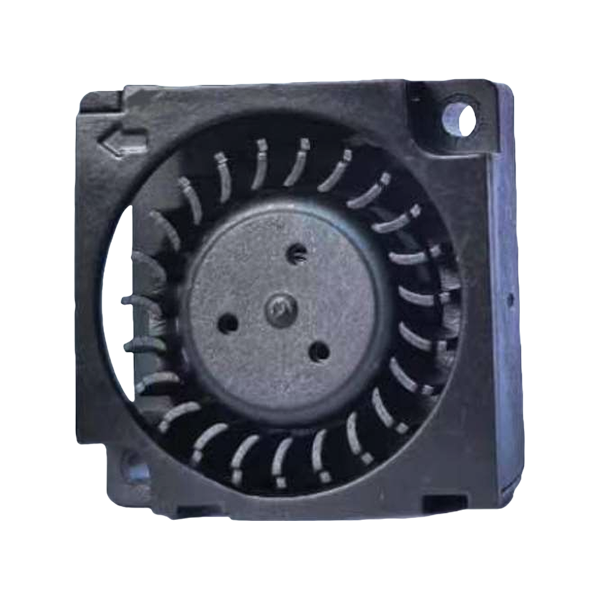

Blower fan 30*30*10mm

Compact and lightweight, it saves installation space and is suitable for small electronic products. It is driven by a high-efficiency motor, which can quickly form a directional airflow to meet the heat dissipation requirements of precision components. It features low noise, low energy consumption and a long service life during operation.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	30000hrs/40℃
SafetyAppro	CE

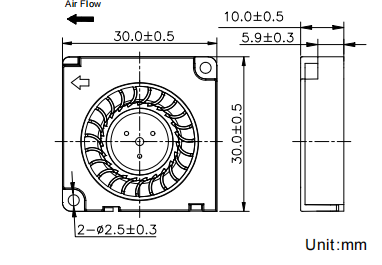

Dimensions Drawing

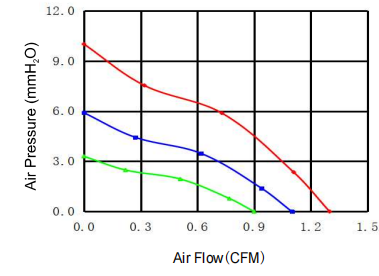

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QB3010H5B	5	4.0-5.7	0.21	10000	1.3	10.0	36	15
QB3010M5B		4.0-5.7	0.17	8000	1.1	5.9	30
QB3010L5B		4.0-5.7	0.10	6000	0.9	3.3	24
QB3010H1B	12	7.0-13.8	0.12	10000	1.3	10.0	36
QB3010M1B		7.0-13.8	0.09	8000	1.1	5.9	30
QB3010L1B		7.0-13.8	0.06	6000	0.9	3.3	24
