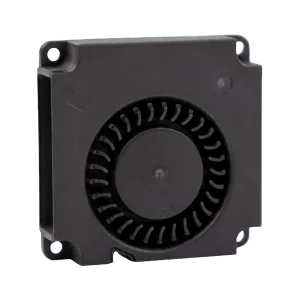

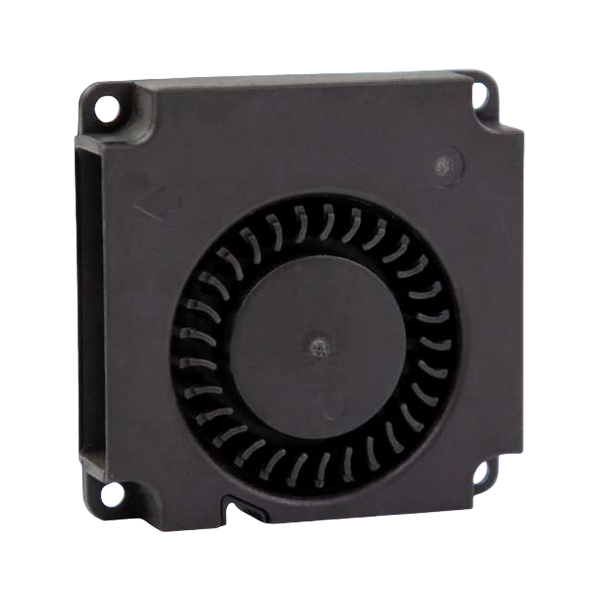

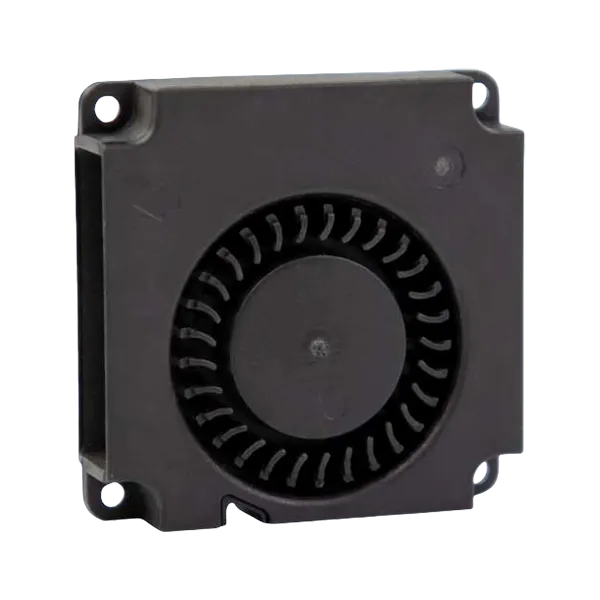

Blower fan 40*40*10mm
It adopts an efficient turbine structure to achieve a strong wind pressure output and quickly remove the heat from the heat source. Low operating noise ensures a quiet usage environment. It is applicable to small electronic products, precision instruments, etc
General Specifications
Motor | DC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 30000hrs/40℃ |
SafetyAppro | CE |

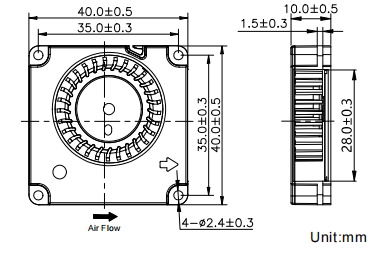

Dimensions Drawing
Performance Curve
Specifications
Listed | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
VDC | VDC | A | RPM | CFM | mmH₂O | dBA | g | |
QB4010H5B | 5 | 4.0-5.7 | 0.30 | 10000 | 3.0 | 11.1 | 39 | 18 |
QB4010M5B | 4.0-5.7 | 0.20 | 8000 | 2.4 | 7.1 | 33 | ||
QB4010L5B | 4.0-5.7 | 0.15 | 6000 | 1.8 | 4.0 | 27 | ||
QB4010H1B | 12 | 7.0-13.8 | 0.20 | 10000 | 3.0 | 11.1 | 39 | |
QB4010M1B | 7.0-13.8 | 0.15 | 8000 | 2.4 | 7.1 | 33 | ||
QB4010L1B | 7.0-13.8 | 0.10 | 6000 | 1.8 | 4.0 | 27 | ||
QB4010H2B | 24 | 14.0-27.6 | 0.10 | 10000 | 3.0 | 11.1 | 39 | |
QB4010M2B | 14.0-27.6 | 0.08 | 8000 | 2.4 | 7.1 | 33 | ||
QB4010L2B | 14.0-27.6 | 0.05 | 6000 | 1.8 | 4.0 | 27 |
