Boosting Fan 404020mm

Boosting Fan 40*40*20mmCompact and small in size, it is convenient to install in equipment with limited space. It can quickly generate air flow, effectively reduce the temperature of the equipment and ensure its stable operation. It is suitable for scenarios such as computer CPU cooling and small electronic device cooling. With efficient cooling and compact size, it provides reliable support for device cooling.General SpecificationsMotorDC Brushless motorFrame MaterialPlastic(UL94V-0)Impeller Ma...

INQUIRY

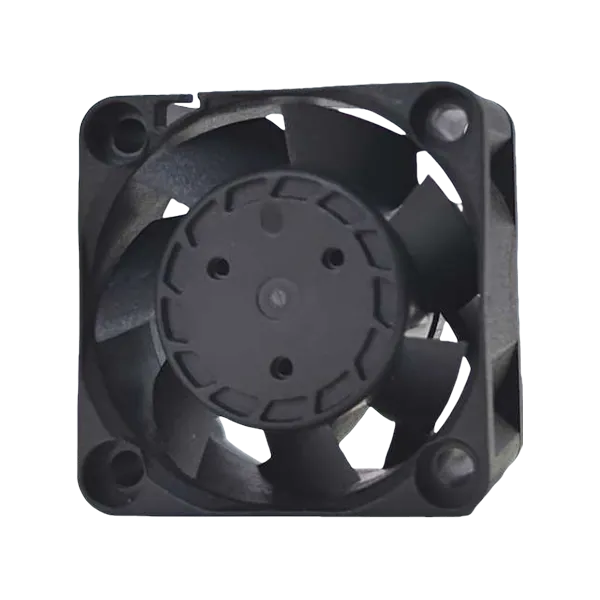

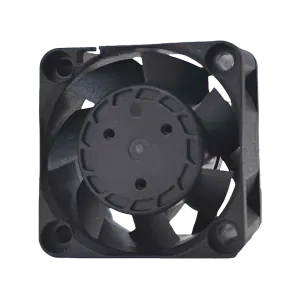

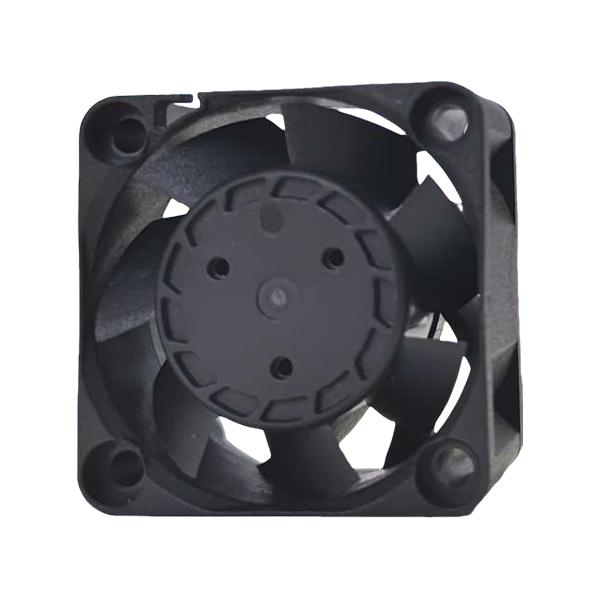

Boosting fan 40*40*20mm

Compact and small in size, it is convenient to install in equipment with limited space. It can quickly generate air flow, effectively reduce the temperature of the equipment and ensure its stable operation. It is suitable for scenarios such as computer CPU cooling and small electronic device cooling. With efficient cooling and compact size, it provides reliable support for device cooling.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

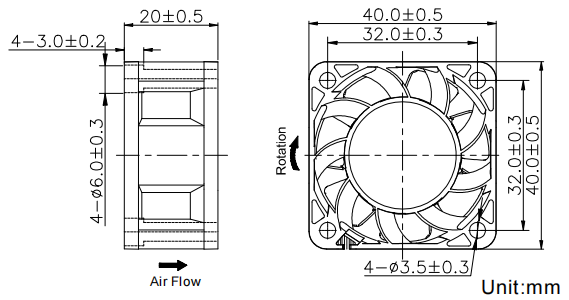

Dimensions Drawing

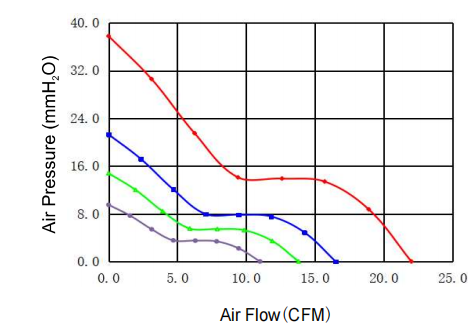

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QG4020D1B	12	6.0-13.8	0.50	16000	22.0	37.8	52	28
QG4020H1B		6.0-13.8	0.25	12000	16.5	21.3	44
QG4020M1B		6.0-13.8	0.15	10000	13.8	14.8	40
QG4020L1B		6.0-13.8	0.10	8000	11.0	9.5	33
QG4020D2B	24	12.0-27.6	0.25	16000	22.0	37.8	52
QG4020H2B		12.0-27.6	0.12	12000	16.5	21.3	44
QG4020M2B		12.0-27.6	0.08	10000	13.8	14.8	40
QG4020L2B		12.0-27.6	0.06	8000	11.0	9.5	33
