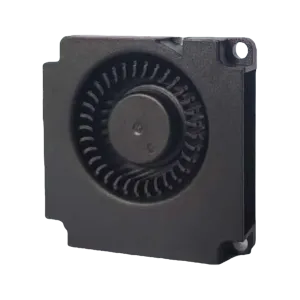

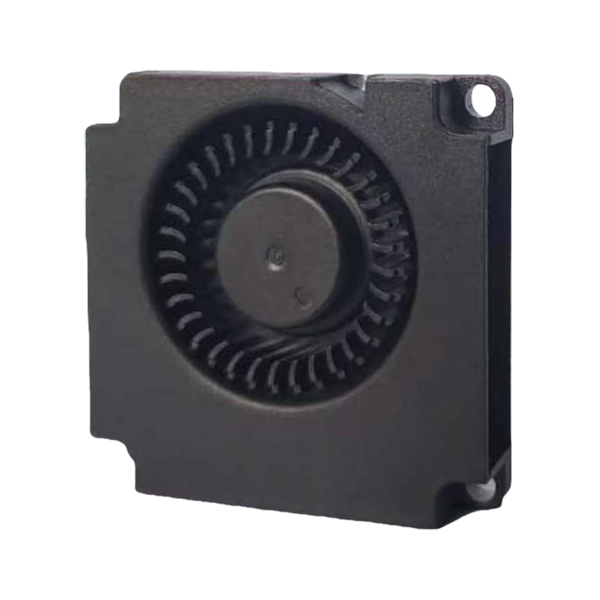

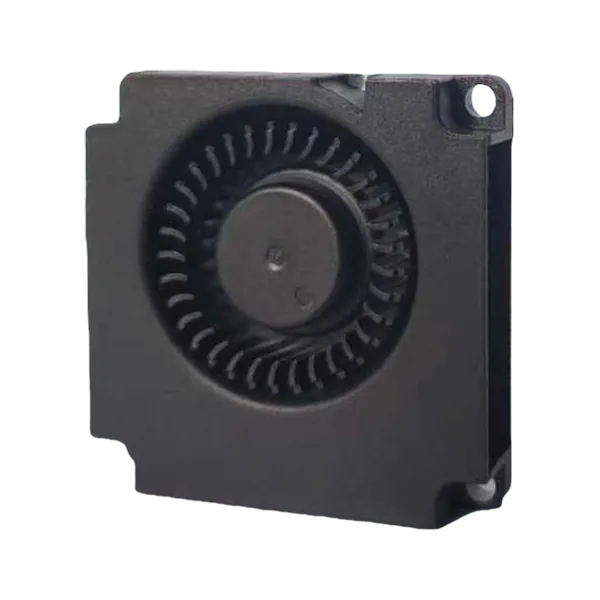

Blower fan 50*50*10mm

This type of fan is usually driven by a DC motor and features excellent speed regulation performance and high efficiency. It can generate a strong airflow, concentrating the air and blowing it towards a specific area. It is widely used in some small devices that require rapid local heat dissipation or ventilation, such as small electronic devices and instruments.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
SafetyAppro	CE

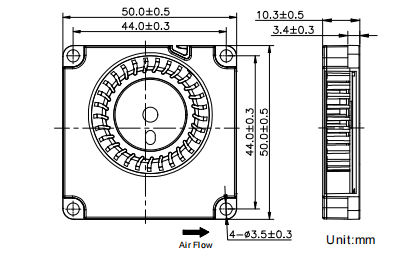

Dimensions Drawing

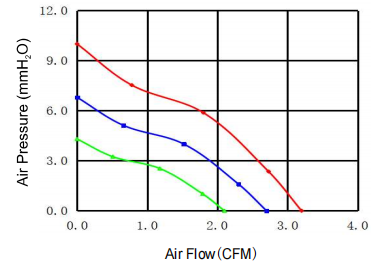

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QB5010H5B	5	4.0-5.7	0.40	6000	3.2	10.0	34	20
QB5010M5B		4.0-5.7	0.25	5000	2.7	6.8	30
QB5010L5B		4.0-5.7	0.13	4000	2.1	4.3	25
QB5010H1B	12	7.0-13.8	0.20	6000	3.2	10.0	34
QB5010M1B		7.0-13.8	0.15	5000	2.7	6.8	30
QB5010L1B		7.0-13.8	0.10	4000	2.1	4.3	25
QB5010H2B	24	14.0-27.6	0.12	6000	3.2	10.0	34
QB5010M2B		14.0-27.6	0.10	5000	2.7	6.8	30
QB5010L2B		14.0-27.6	0.08	4000	2.1	4.3	25
