Boosting Fan 606025mm

Boosting Fan 60*60*25mmIt is often used in various devices that require enhanced air flow. It can enhance the heat dissipation effect by increasing the air flow rate and pressure, and is commonly found in computer CPU heat sinks, industrial control cabinet heat dissipation systems, etc. Compared with ordinary fans, it performs better in terms of air volume and air pressure, ensuring that the equipment operates at a stable temperature and enhancing its performance and service life.General Specifi...

INQUIRY

Boosting fan 60*60*25mm

It is often used in various devices that require enhanced air flow. It can enhance the heat dissipation effect by increasing the air flow rate and pressure, and is commonly found in computer CPU heat sinks, industrial control cabinet heat dissipation systems, etc. Compared with ordinary fans, it performs better in terms of air volume and air pressure, ensuring that the equipment operates at a stable temperature and enhancing its performance and service life.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

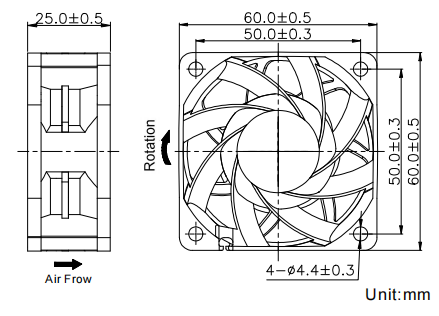

Dimensions Drawing

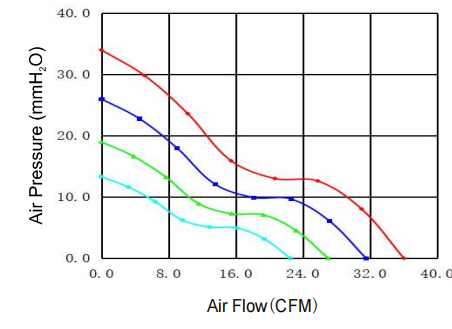

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QG6025D1B	12	6.0-13.8	1.00	8000	36.0	34.0	48	70
QG6025H1B		6.0-13.8	0.70	7000	31.5	26.0	45
QG6025M1B		6.0-13.8	0.50	6000	27.0	19.0	42
QG6025L1B		6.0-13.8	0.30	5000	22.5	13.3	37
QG6025D2B	24	12.0-27.6	0.50	8000	36.0	34.0	48
QG6025H2B		12.0-27.6	0.35	7000	31.5	26.0	45
QG6025M2B		12.0-27.6	0.25	6000	27.0	19.0	42
QG6025L2B		12.0-27.6	0.15	5000	22.5	13.3	37
QG6025D4B	48	24.0-55.2	0.25	8000	36.0	34.0	48
QG6025H4B		24.0-55.2	0.18	7000	31.5	26.0	45
QG6025M4B		24.0-55.2	0.12	6000	27.0	19.0	42
QG6025L4B		24.0-55.2	0.10	5000	22.5	13.3	37
