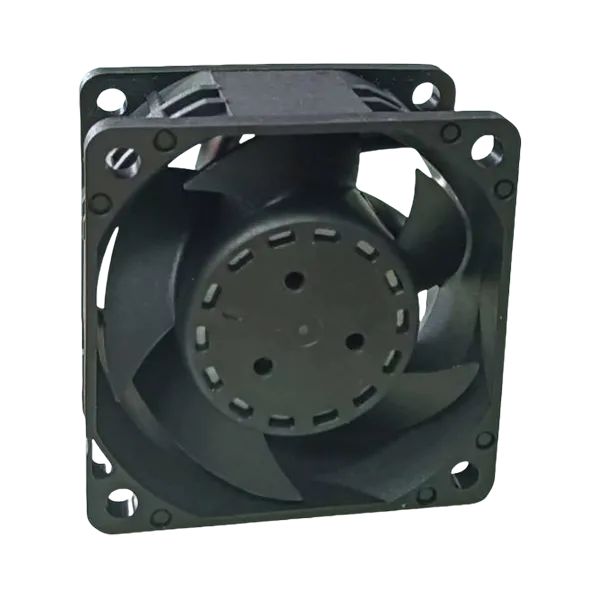

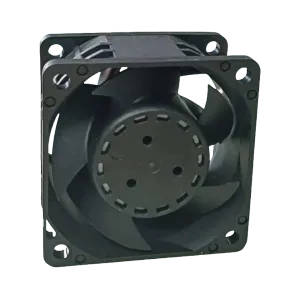

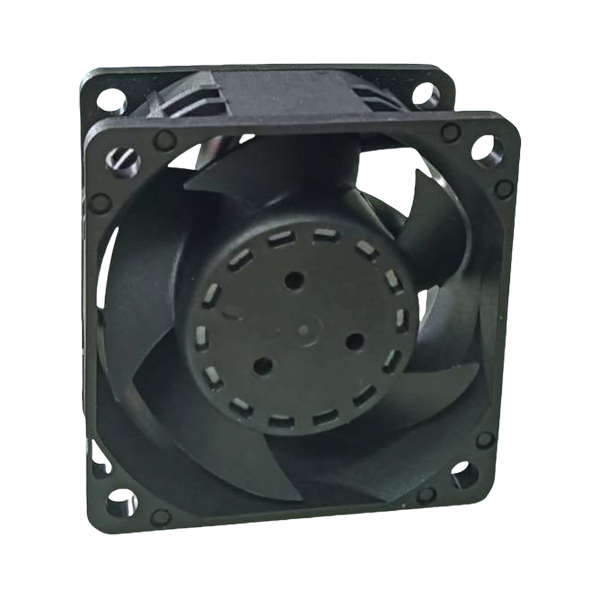

Boosting fan 60*60*32mm

It has a highly efficient heat dissipation capacity, which can quickly remove heat and ensure the stable operation of the equipment. Compact structure, easy to install, suitable for equipment with limited space. It operates with low noise and does not overly interfere with the working environment. It is widely used in electronics, electrical appliances and other fields.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20.Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

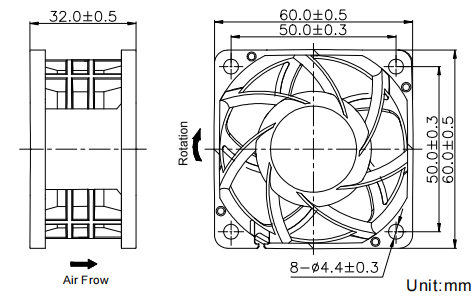

Dimensions Drawing

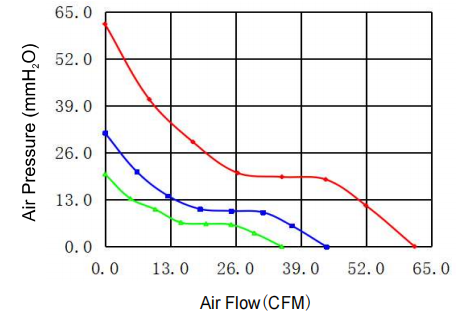

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QG6032H1B	12	6.0-13.8	1.50	14000	61.6	61.7	63	95
QG6032M1B		6.0-13.8	1.20	10000	44.0	31.5	56
QG6032L1B		6.0-13.8	0.80	8000	35.2	20.1	49
QG6032H2B	24	12.0-27.6	0.70	14000	61.6	61.7	63
QG6032M2B		12.0-27.6	0.60	10000	44.0	31.5	56
QG6032L2B		12.0-27.6	0.40	8000	35.2	20.1	49
QG6032H4B	48	24.0-55.2	0.35	14000	61.6	61.7	63
QG6032M4B		24.0-55.2	0.30	10000	44.0	31.5	56
QG6032L4B		24.0-55.2	0.20	8000	35.2	20.1	49
