Boosting Fan 606032mm

Boosting Fan 60*60*32mmIt features high rotational speed and large air volume, capable of quickly removing heat. It is suitable for electronic devices with high heat dissipation requirements, such as computer hosts and servers. The compact size is convenient for installation, can effectively save space, and provides reliable heat dissipation guarantee for the stable operation of the equipment.General SpecificationsMotorDC Brushless motorFrame MaterialPlastic(UL94V-0)Impeller MaterialPlastic(UL94...

INQUIRY

Boosting fan 60*60*32mm

It features high rotational speed and large air volume, capable of quickly removing heat. It is suitable for electronic devices with high heat dissipation requirements, such as computer hosts and servers. The compact size is convenient for installation, can effectively save space, and provides reliable heat dissipation guarantee for the stable operation of the equipment.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20.Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

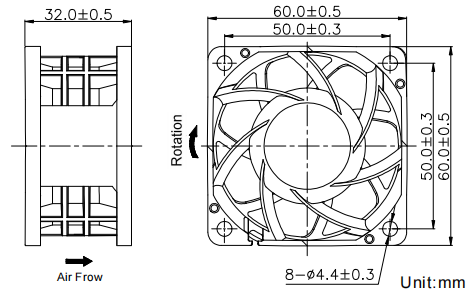

Dimensions Drawing

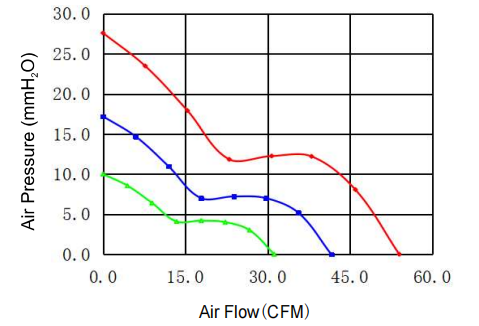

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QG6032H1B	12	6.0-13.8	1.20	10000	54.0	27.6	58	95
QG6032M1B		6.0-13.8	0.80	8000	41.6	17.2	51
QG6032L1B		6.0-13.8	0.60	6000	31.2	10.0	44
QG6032H2B	24	12.0-27.6	0.60	10000	54.0	27.6	58
QG6032M2B		12.0-27.6	0.40	8000	41.6	17.2	51
QG6032L2B		12.0-27.6	0.30	6000	31.2	10.0	44
QG6032H4B	48	24.0-55.2	0.30	10000	54.0	27.6	58
QG6032M4B		24.0-55.2	0.20	8000	41.6	17.2	51
QG6032L4B		24.0-55.2	0.15	6000	31.2	10.0	44
