Boosting Fan 606038mm

Boosting Fan 60*60*38mmCompared with fans of conventional thickness, it can provide greater airflow and has a higher heat dissipation efficiency. Brushless motors are often used, which have a long service life, require less maintenance and operate quietly. The voltage is mostly 12V DC, and the current varies by model. It is applicable to industrial equipment, 3D printers, power supplies and other electronic products that require efficient heat dissipation.General SpecificationsMotorDC Brushless...

INQUIRY

Boosting fan 60*60*38mm

Compared with fans of conventional thickness, it can provide greater airflow and has a higher heat dissipation efficiency. Brushless motors are often used, which have a long service life, require less maintenance and operate quietly. The voltage is mostly 12V DC, and the current varies by model. It is applicable to industrial equipment, 3D printers, power supplies and other electronic products that require efficient heat dissipation.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	UL/CUL CE

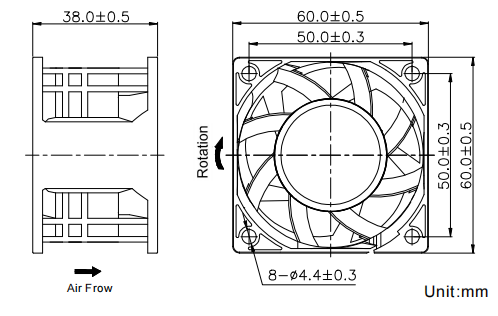

Dimensions Drawing

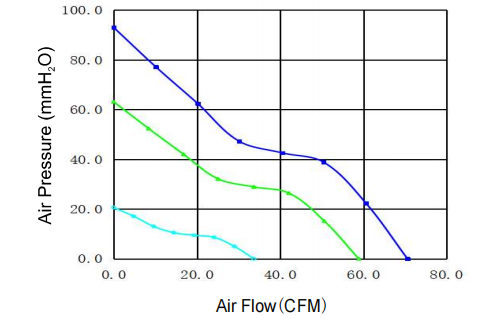

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	g
QG6038H1B	12	6.0-13.8	2.20	17000	70.6	93.0	68	95
QG6038M1B		6.0-13.8	1.50	14000	58.9	63.1	64
QG6038L1B		6.0-13.8	0.80	8000	33.7	20.6	51
QG6038H2B	24	12.0-27.6	1.00	17000	70.6	93.0	68
QG6038M2B		12.0-27.6	0.70	14000	58.9	63.1	64
QG6038L2B		12.0-27.6	0.40	8000	33.7	20.6	51
QG6038H4B	48	24.0-55.2	0.50	17000	70.6	93.0	68
QG6038M4B		24.0-55.2	0.35	14000	58.9	63.1	64
QG6038L4B		24.0-55.2	0.20	8000	33.7	20.6	51
