Boosting Fan 606038mm

Boosting Fan 60*60*38mmIt can provide greater airflow and has a high heat dissipation efficiency. The common voltage is 12V. Brushless motors are often used, which have a long service life, low maintenance and quiet operation. It is suitable for industrial equipment, 3D printers, power supplies and other electronic products with high heat dissipation requirements, and is easy to install.General SpecificationsMotorDC Brushless motorFrame MaterialPlastic(UL94V-0)Impeller MaterialPlastic(UL94V-0)Fu...

INQUIRY

Boosting fan 60*60*38mm

It can provide greater airflow and has a high heat dissipation efficiency. The common voltage is 12V. Brushless motors are often used, which have a long service life, low maintenance and quiet operation. It is suitable for industrial equipment, 3D printers, power supplies and other electronic products with high heat dissipation requirements, and is easy to install.

General Specifications

Motor	DC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20.Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

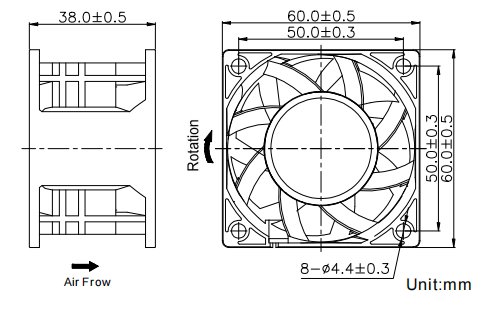

Dimensions Drawing

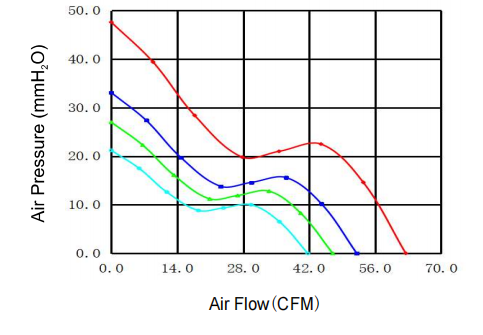

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	9
QG6038D1B	12	6.0-13.8	1.60	12000	62.5	47.6	64	105
QG6038H1B		6.0-13.8	1.20	10000	52.1	33.1	60
QG6038M1B		6.0-13.8	1.00	9000	47.0	27.0	57
QG6038L1B		6.0-13.8	0.80	8000	41.7	21.2	53
QG6038D2B	24	12.0-27.6	0.80	12000	62.5	47.6	64
QG6038H2B		12.0-27.6	0.60	10000	52.1	33.1	60
QG6038M2B		12.0-27.6	0.50	9000	47.0	27.0	57
QG6038L2B		12.0-27.6	0.40	8000	41.7	21.2	53
QG6038D4B	48	24.0-55.2	0.40	12000	62.5	47.6	64
QG6038H4B		24.0-55.2	0.30	10000	52.1	33.1	60
QG6038M4B		24.0-55.2	0.25	9000	47.0	27.0	57
QG6038L4B		24.0-55.2	0.20	8000	41.7	21.2	53
