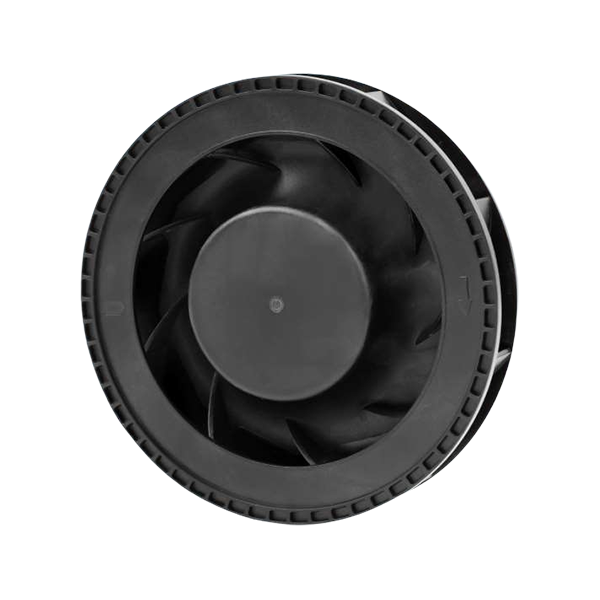

Centrifugal Fan 100*25mm

Centrifugal Fan 100*25mmIt adopts a centrifugal airflow design, which can effectively expel air radially to form a stable wind pressure. It is particularly suitable for scenarios with high air volume requirements and limited space. The product is usually equipped with a high-efficiency motor, featuring low operating noise, low energy consumption and the ability to work continuously and stably. It is suitable for air purifiers, projectors, small mechanical equipment, etc., and can provide reliabl...

INQUIRY

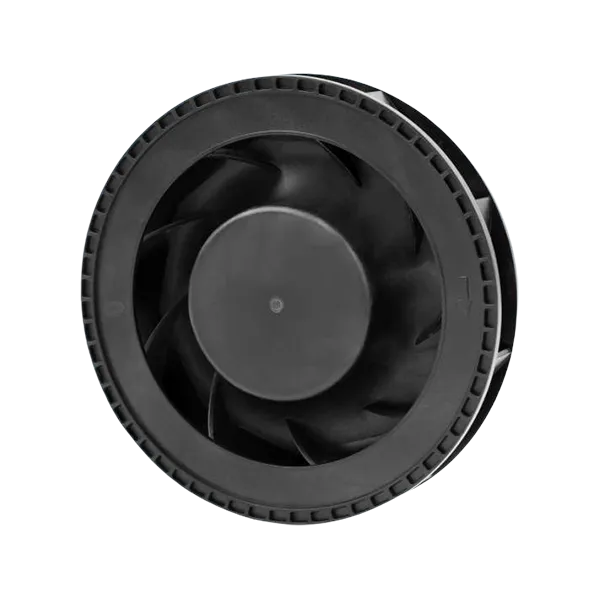

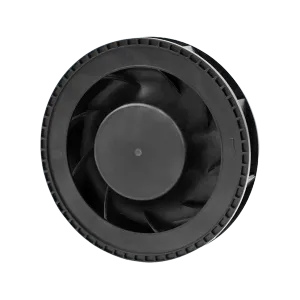

Centrifugal fan 100*25mm

It adopts a centrifugal airflow design, which can effectively expel air radially to form a stable wind pressure. It is particularly suitable for scenarios with high air volume requirements and limited space. The product is usually equipped with a high-efficiency motor, featuring low operating noise, low energy consumption and the ability to work continuously and stably. It is suitable for air purifiers, projectors, small mechanical equipment, etc., and can provide reliable heat dissipation guarantee for the equipment.

General Specifications

Motor	DC Centrifugal Fans
Frame Material	Baked Black Paint
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	60000hrs/40℃
SafetyAppro	CE

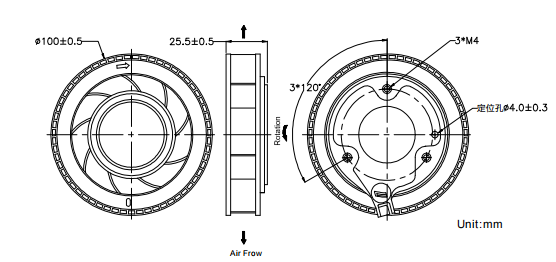

Dimensions Drawing

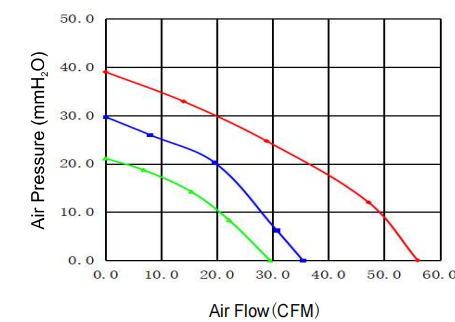

Performance Curve

Specifications

Listed Model	Rated Voltage	Operation Voltage	Rated Current	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	g
QF10025H1B	12	6.0-13.8	0.60	5300	56.0	39.0	58.5	150
QF10025M1B		6.0-13.8	0.35	3000	35.4	29.7	51.0
QF10025L1B		6.0-13.8	0.28	2500	29.5	21.1	45.0
QF10025H2B	24	12.0-27.6	0.30	5300	56.0	39.0	58.5
QF10025M2B		12.0-27.6	0.20	3000	35.4	29.7	51.0
QF10025L2B		12.0-27.6	0.12	2500	29.5	21.1	45.0
