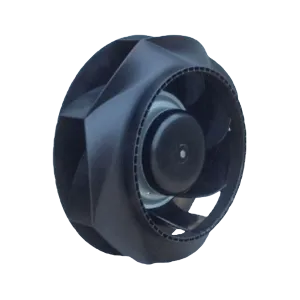

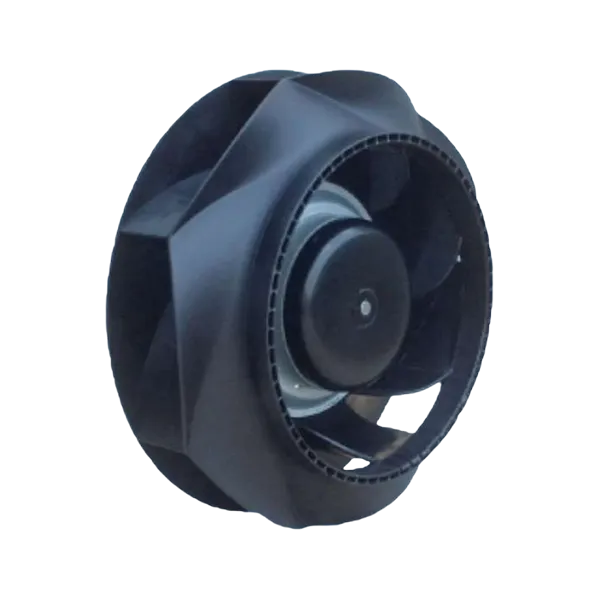

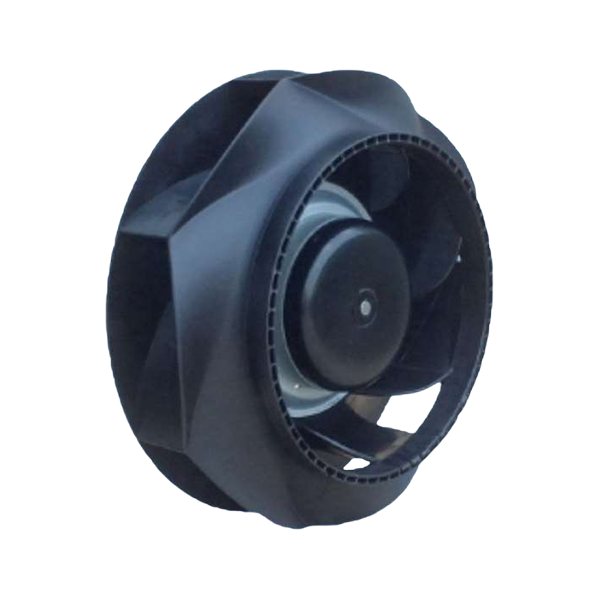

Centrifugal fan 190*63mm
This fan efficiently accelerates the air through centrifugal force, creating a stable and strong wind pressure. It is suitable for various scenarios that require directional and high-pressure air supply, such as air purifiers, ventilation systems, and industrial equipment heat dissipation. Its compact structural design is easy to install. It is made of high-quality materials and equipped with high-efficiency motors, ensuring smooth operation with low noise and a long service life. It can meet the aerodynamic requirements in various environments.
General Specifications
Motor | DC Centrifugal Fans |
Frame Material | Baked Black Paint |
Impeller Material | Plastic(UL94V-0) |
Function | 0~10VDC/PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP44 |
Expected Life | 60000hrs/40℃ |
SafetyAppro | CE |

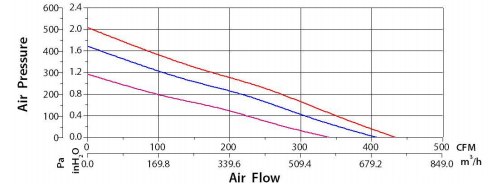

Performance Curve

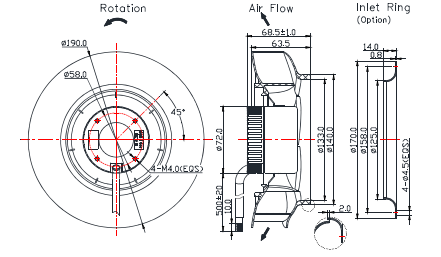

Dimensions Drawing
Specifications
Listed | Motor | Rated | Operation | Rated | Rated | Air | Air | Noise | Weight |
mm | VDC | VDC | A | RPM | m³/h | Pa | dBA | g | |
QF190063H1B | DC72 | 12.0 | 9.6-14.4 | 5.00 | 3000 | 671.5 | 428.3 | 64.0 | 700 |
QF190063M1B | 9.6-14.4 | 2.80 | 2500 | 559.6 | 297.4 | 60.0 | |||
QF190063D2B | 24.0 | 16.0-28.0 | 3.30 | 3300 | 738.6 | 518.2 | 67.0 | ||
QF190063H2B | 16.0-28.0 | 2.40 | 3000 | 671.5 | 428.3 | 64.0 | |||
QF190063M2B | 16.0-28.0 | 1.30 | 2500 | 559.6 | 297.4 | 60.0 | |||
QF190063D4B | 48.0 | 36.0-57.0 | 1.60 | 3300 | 738.6 | 518.2 | 67.0 | ||
QF190063H4B | 36.0-57.0 | 1.20 | 3000 | 671.5 | 428.3 | 64.0 | |||
QF190063M4B | 36.0-57.0 | 0.65 | 2500 | 559.6 | 297.4 | 60.0 |
