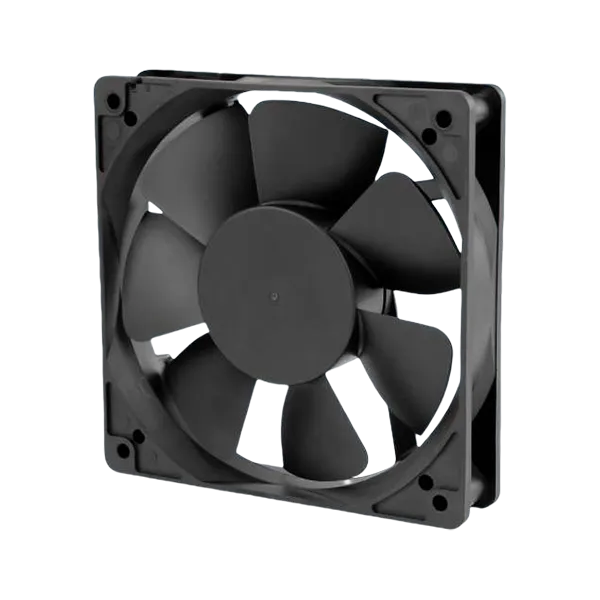

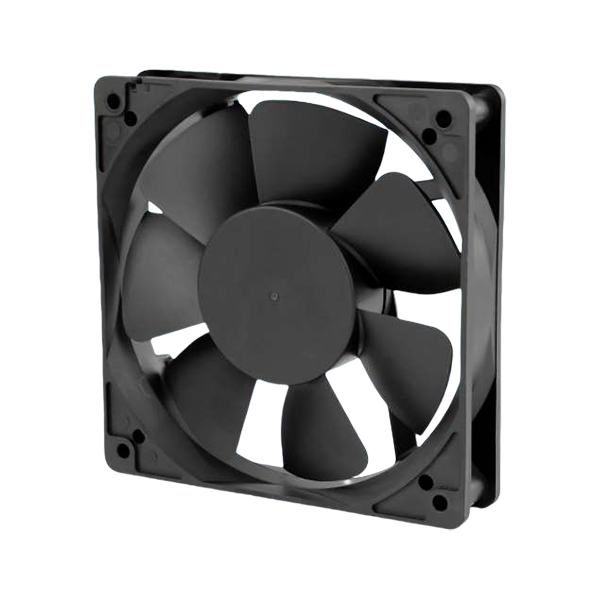

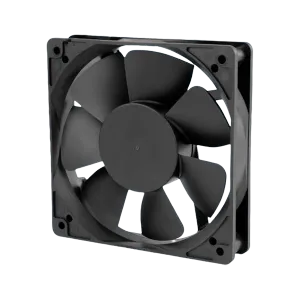

EC series Axial Fan 120*120*25mm

Compact size, adopting electronic reversing technology, energy saving and high efficiency. With large air volume and low noise, it can operate stably under a variety of voltages and is widely used in electronic equipment, industrial equipment cooling and indoor ventilation, etc. It is an axial fan with excellent performance.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

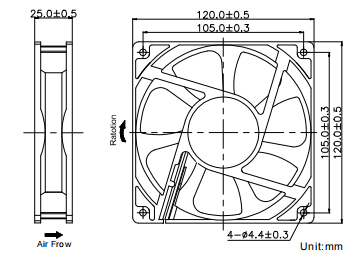

Dimensions Drawing

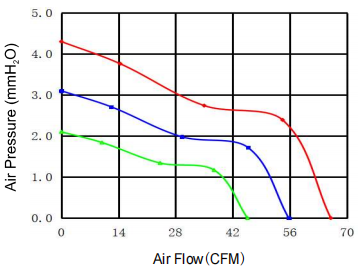

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE12025H2B	115/230	50/60	98-264	0.08	8.0	2600	66.0	4.3	43	160 140
QE12025M2B				0.07	5.0	2200	55.7	3.1	39
QE12025L2B				0.05	3.0	1800	45.6	2.1	35
