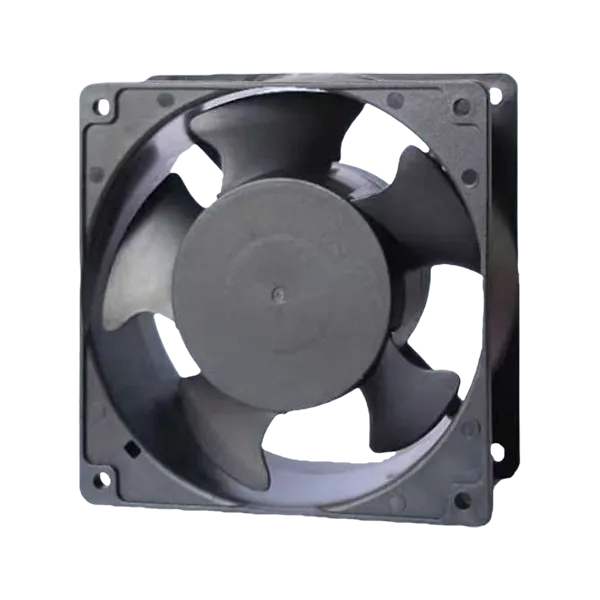

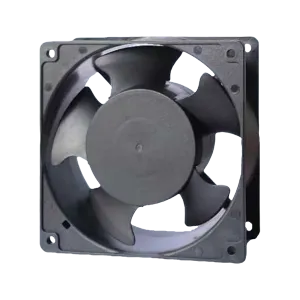

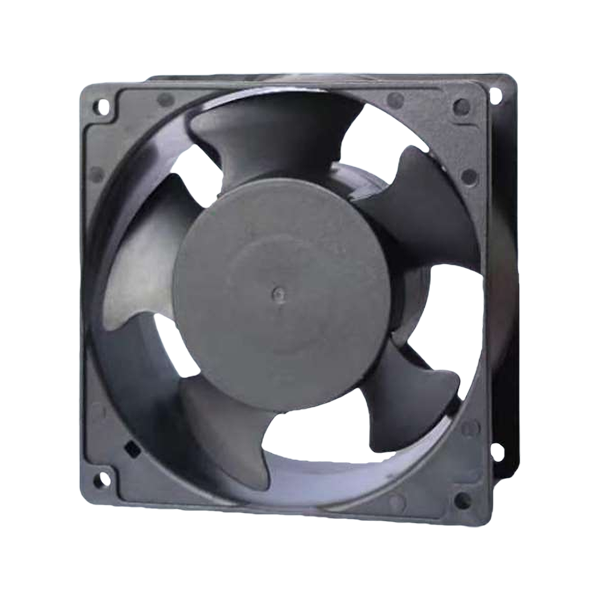

EC series Axial Fan 120*120*38mm

Adopting advanced brushless DC motor technology, it is energy efficient and saves more than 80% energy compared with traditional AC fans, and the maximum power consumption is only 5.1W. With PWM speed control function, the speed can be intelligently adjusted according to the needs of the equipment to achieve precise heat dissipation and energy saving. With IP21, IP55 dustproof and waterproof design, it can comfortably cope with the complex environment of commercial refrigeration and freezing, air conditioning and heating.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

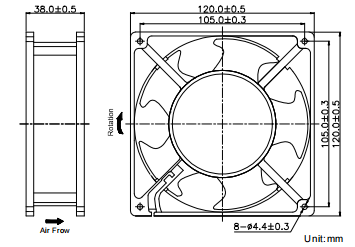

Dimensions Drawing

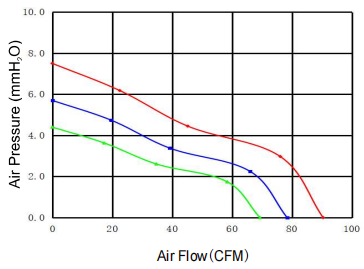

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE12038H2B	115/230	50/60	98-264	0.10	8.0	3000	90.4	7.5	41	200
QE12038M2B				0.08	5.0	2600	78.4	5.7	38
QE12038L2B				0.06	3.0	2300	69.3	4.4	36
