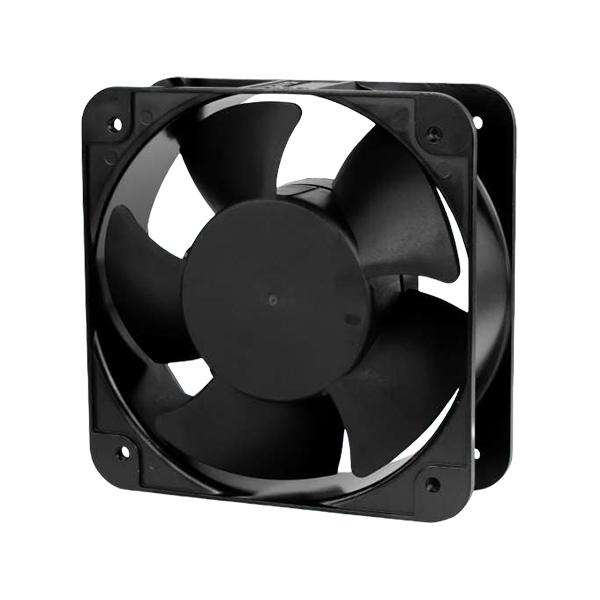

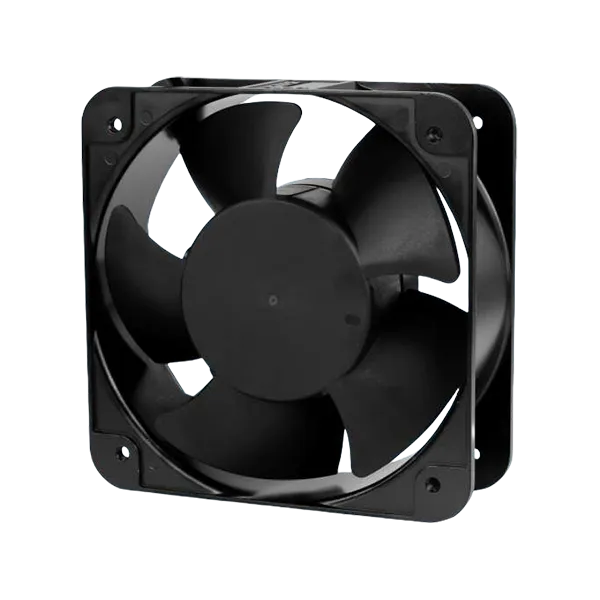

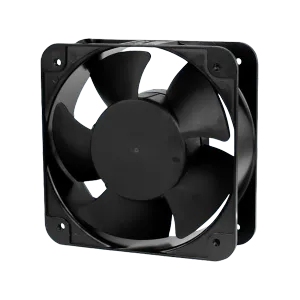

EC series Axial Fan 150*150*50mm

The fan blade is made of thermoplastic (UL 94 V-0). The EC brushless outrunner motor is energy efficient. The speed range is 2600 - 4200 RPM and the airflow can reach 176.98 - 285.89 CFM, which can cope with different ventilation needs. Stable operation, low vibration, working temperature - 10℃~70℃, can be used in electric power, cabinet, new energy equipment and other cooling and ventilation scenarios.

General Specifications

Motor	EC Brushless motor
Frame Material	Aluminum Alloy
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

Dimensions Drawing

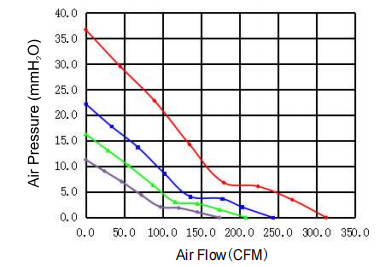

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE15050D1B	110	50/60	90-132	0.65	45.0	4500	312.5	36.7	63.6	700
QE15050H1B				0.45	30.0	3500	243.1	22.2	58.0
QE15050M1B				0.35	22.0	3000	208.3	16.3	54.0
QE15050L1B				0.25	15.0	2500	173.6	11.3	50.8
QE15050D2B	220	50/60	180-264	0.35	45.0	4500	312.5	36.7	63.6
QE15050H2B				0.25	30.0	3500	243.1	22.2	58.0
QE15050M2B				0.20	22.0	3000	208.3	16.3	54.0
QE15050L2B				0.15	15.0	2500	173.6	11.3	50.8
