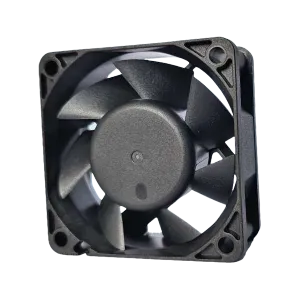

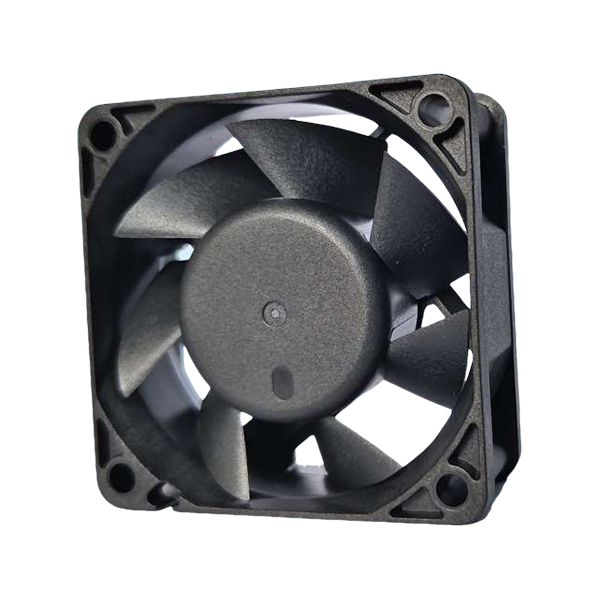

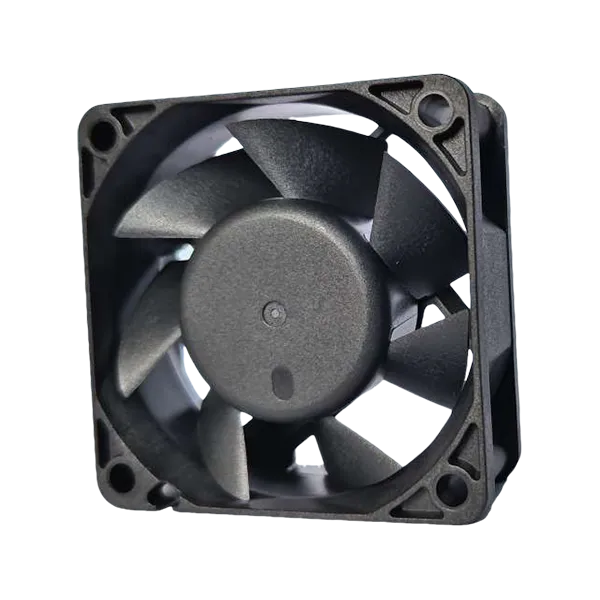

EC series Axial Fan 60*60*25mm

Compact size for equipment where space is limited. The frame and impeller are made of UL 94 V-0 grade plastic, safe and flame retardant. Operating voltage range 100V - 240V (50/60Hz), AC and DC, constant speed at different voltages. Operating temperatures from -25°C to 70°C and storage temperatures from -40°C to 80°C. Ball bearing design provides a reliable life expectancy of 70,000 hours at 40°C.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

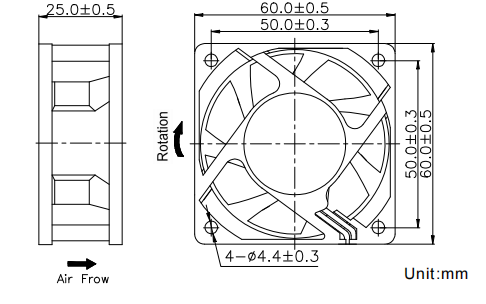

Dimensions Drawing

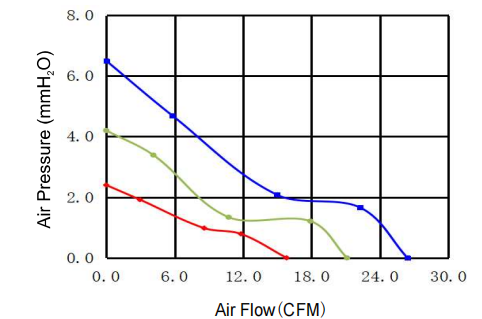

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE6025H2B	115/230	50/60	98-264	0.06	5.0	5000	26.4	6.5	36	65
QE6025M2B				0.04	3.0	4000	21.1	4.2	30
QE6025L2B				0.03	2.0	3000	15.8	2.4	24
