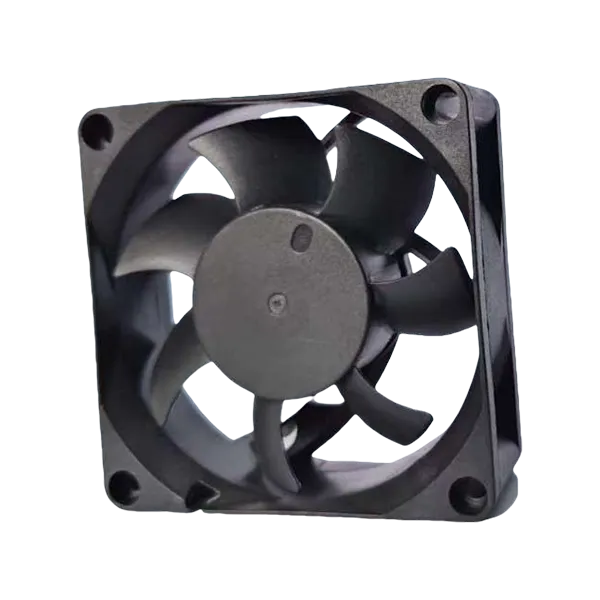

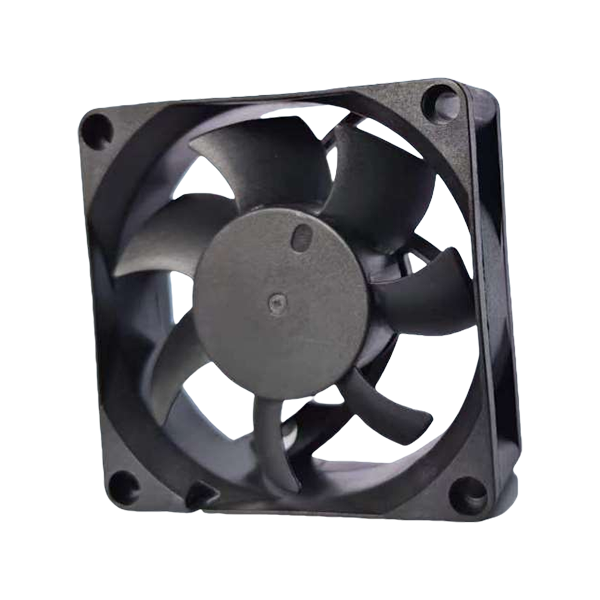

EC series Axial Fan 70*70*25mm

Compact size, UL 94V-0 thermoplastic frame and impeller for excellent flame resistance. Wide operating temperature range of -10°C to 70°C. Low noise and power consumption during operation, with high air flow and static pressure. It can be applied to computers, communication equipments, instruments and meters, etc., to dissipate heat efficiently for the equipments and ensure stable operation.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

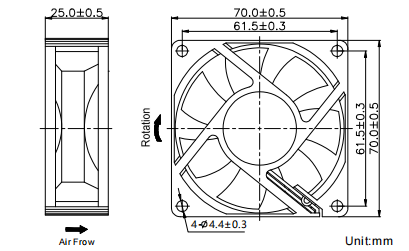

Dimensions Drawing

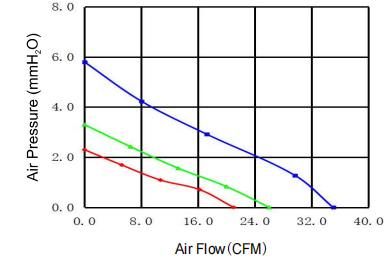

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE7025H2B	115/230	50/60	98-264	0.05	4.0	4000	35.0	5.8	38	75 70
QE7025M2B				0.04	3.0	3000	26.0	3.3	30
QE7025L2B				0.03	2.0	2500	21.7	2.3	26
