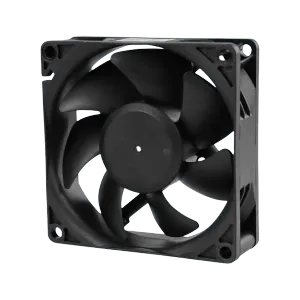

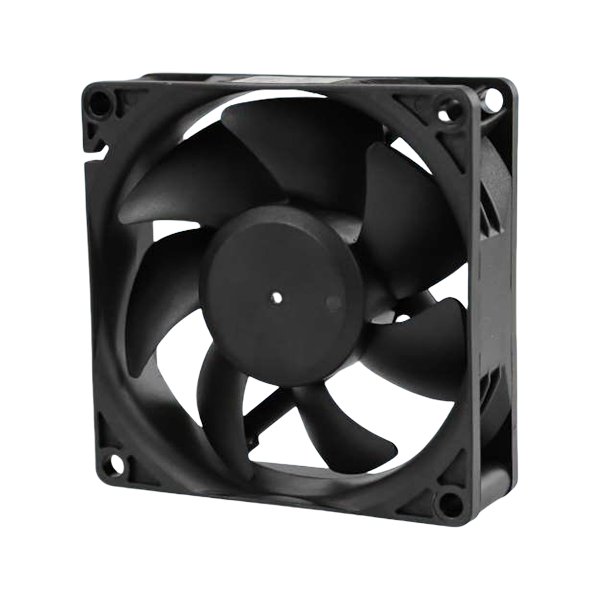

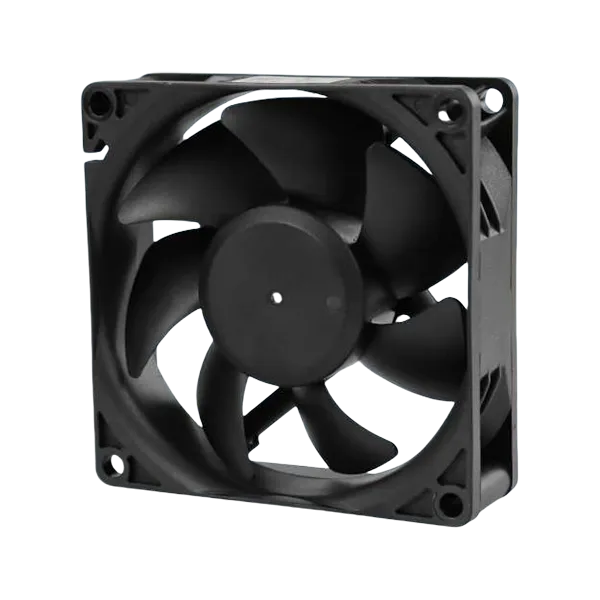

EC series Axial Fan 80*80*25mm

It adopts high-precision double ball bearings and pure copper motor, which is stable and durable, with a life span of 67,000 hours. The motor is a brushless outer rotor, energy-saving and efficient, with a wide range of voltages, from 90V to 270V, and a speed of 2,800rpm, delivering a strong airflow of 43.6CFM, which can easily cope with the cooling and ventilation needs of industrial equipment, chassis and cabinets, and so on.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

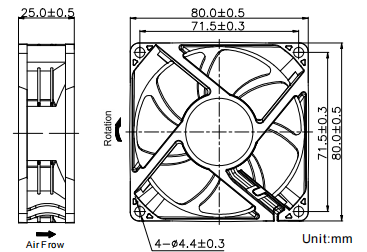

Dimensions Drawing

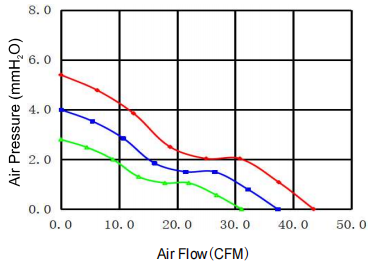

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	g
QE8025H2B	115/230	50/60	98-264	0.05	5.0	3500	43.5	5.4	38	75 76
QE8025M2B				0.04	4.0	3000	37.3	4.0	35
QE8025L2B				0.03	3.0	2500	31.1	2.8	31
