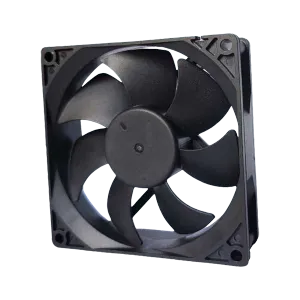

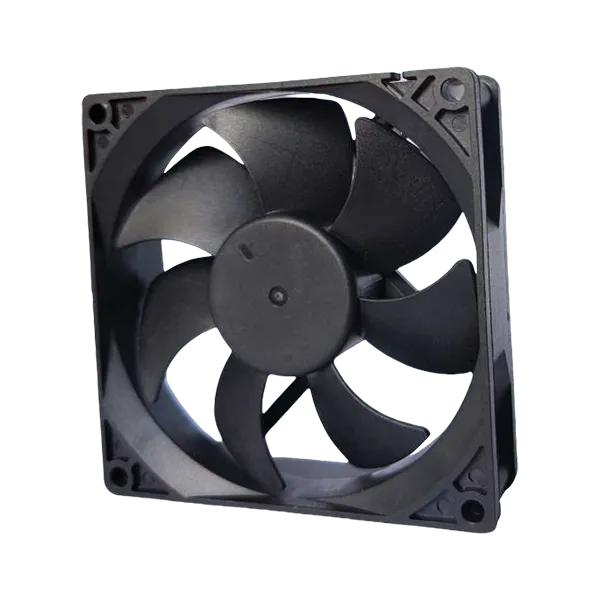

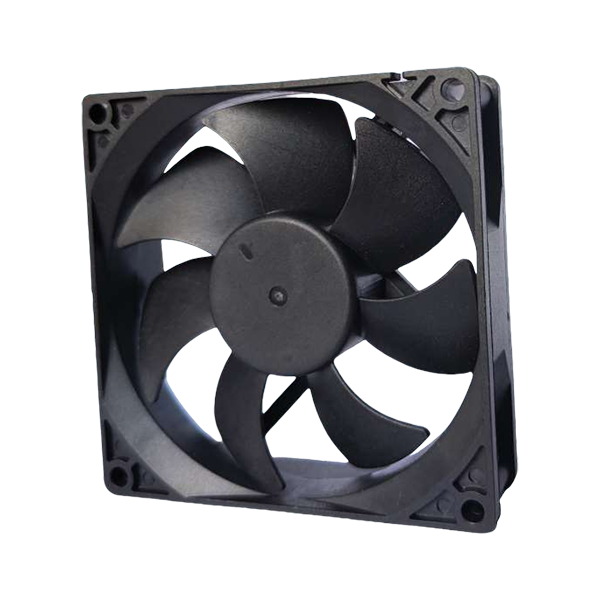

Leave a messageEC series Axial Fan 92*92*25mm
It is a Cooling Fan with excellent performance. It adopts AC to DC technology, which has the advantages of lower power consumption, longer lifespan, higher airflow and higher speed than traditional AC fans. The frame and impeller are made of UL 94 V-0 grade plastic, which is safe and flame retardant. Commonly used in computer CPU, server system and many industrial equipment cooling.
General Specifications
Motor | EC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | CE |

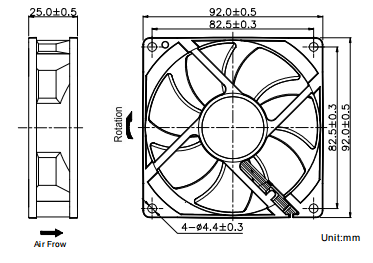

Dimensions Drawing

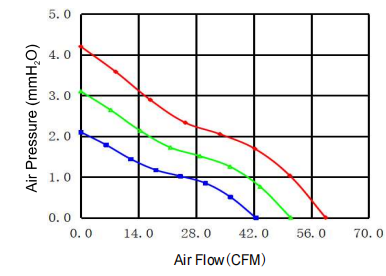

Performance Curve
Specifications
Listed | Rated | Frequency | Operation | Rated | Power | Rated | Air | Air | Noise | Weight |
VAC | Hz | VAC | A | W | RPM | CFM | mmH₂O | dBA | g | |
QE9225H2B | 115/230 | 50/60 | 98-264 | 0.06 | 5.0 | 3500 | 59.5 | 4.2 | 34.5 | 85 |
QE9225M2B | 0.05 | 3.5 | 3000 | 51.0 | 3.1 | 33.0 | ||||
QE9225L2B | 0.03 | 2.5 | 2500 | 42.5 | 2.1 | 27.0 |
