EC series Boosting Fan 120*120*25mm China Manufacturers - - Shenzhen Zhiqiangxing Technology Co., Ltd

EC series Boosting Fan 12012025mm

EC series Boosting Fan 120*120*25mmAdopting advanced electronic commutation (EC) technology, combining the advantages of AC and DC. The motor runs on DC voltage, but is compatible with normal AC power supply. It is energy efficient, reducing energy consumption by up to 80% compared to similar AC fans. Equipped with double ball bearings, it has a long lifespan of 50,000 hours and stable operation. It is suitable for a variety of scenarios, such as electronic equipment cooling, small cabinet venti...

INQUIRY

EC series Boosting fan 120*120*25mm

Adopting advanced electronic commutation (EC) technology, combining the advantages of AC and DC. The motor runs on DC voltage, but is compatible with normal AC power supply. It is energy efficient, reducing energy consumption by up to 80% compared to similar AC fans. Equipped with double ball bearings, it has a long lifespan of 50,000 hours and stable operation. It is suitable for a variety of scenarios, such as electronic equipment cooling, small cabinet ventilation, etc., to provide a strong guarantee for the stable operation of equipment.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

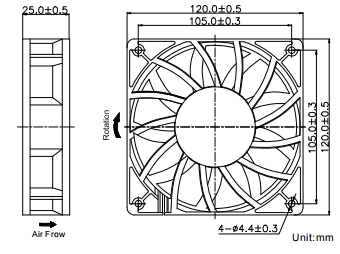

Dimensions Drawing

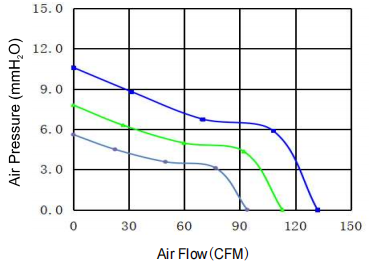

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE12025H2B	115/230	50/60	98-264	0.10	8.0	3500	131.5	10.6	53	200
QE12025M2B				0.08	5.0	3000	112.7	7.8	49
QE12025L2B				0.06	3.0	2500	94.0	5.6	45
