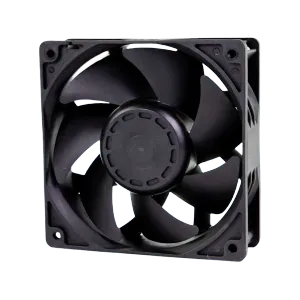

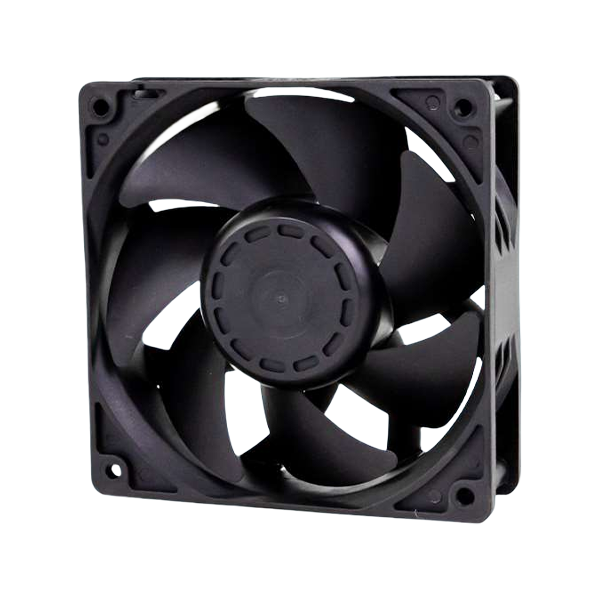

EC series Boosting fan 120*120*38mm

Known for its high energy efficiency, it reduces energy consumption by up to 80% compared to traditional AC fans. Made of high-quality materials for durability, the ball-bearing design gives it a long service life of over 60,000 hours. When working, it can generate strong wind power, the highest airflow can reach 160CFM, effectively meet the cooling needs of the equipment, widely used in industrial equipment, communication base stations and other fields.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

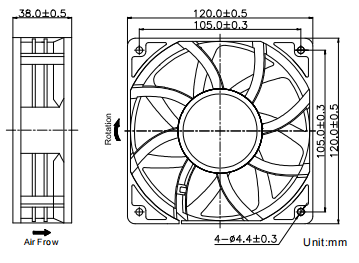

Dimensions Drawing

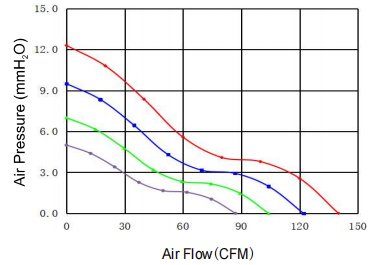

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE12038D2B	115/230	50/60	98-264	0.13	18.0	4000	140.2	12.3	54	320
QE12038H2B				0.10	12.0	3500	121.7	9.5	48
QE12038M2B				0.08	8.0	3000	104.3	7.0	45
QE12038L2B				0.06	6.0	2500	87.0	5.0	41
