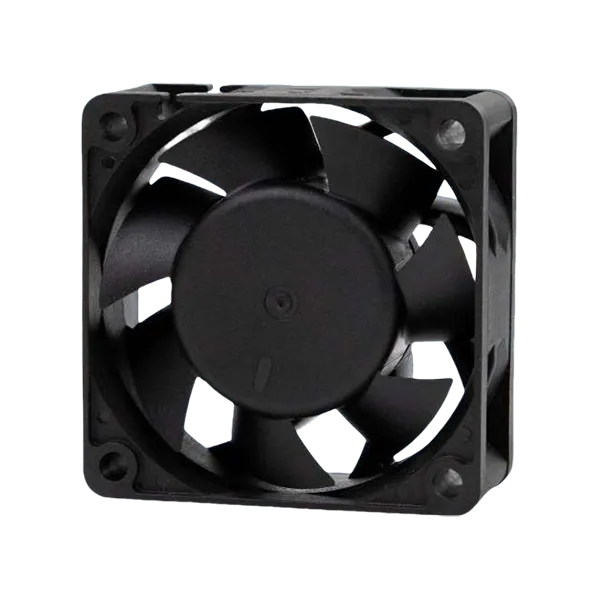

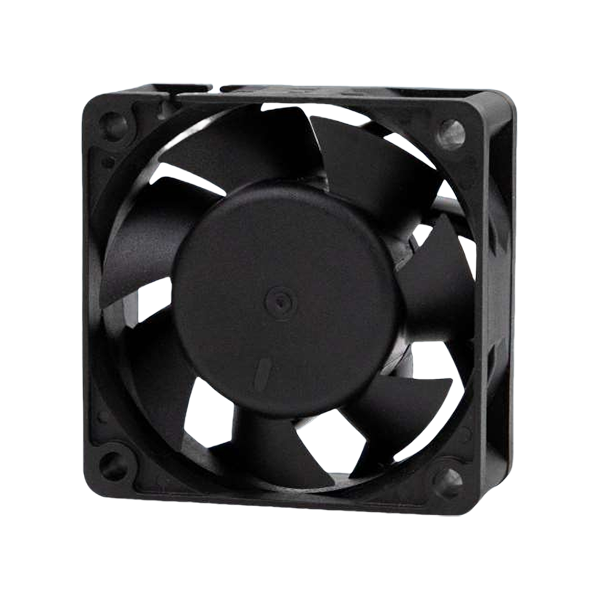

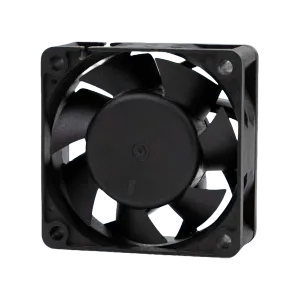

EC series Boosting fan 60*60*25mm

The advanced Electronic Commutation (EC) technology combines the advantages of AC and DC voltages to provide high energy efficiency and reduce power consumption by approximately 80% compared to conventional fans. Double ball bearings with lightweight motor rotor, low operating temperature, and up to 50,000 hours of service life. Suitable for computer chassis, cabinet cooling and other scenarios, easy installation and excellent performance.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

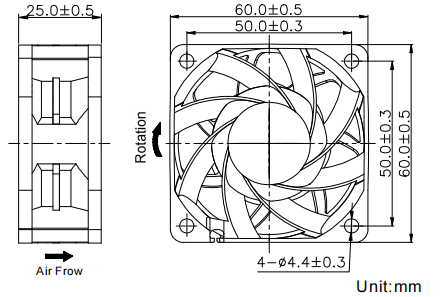

Dimensions Drawing

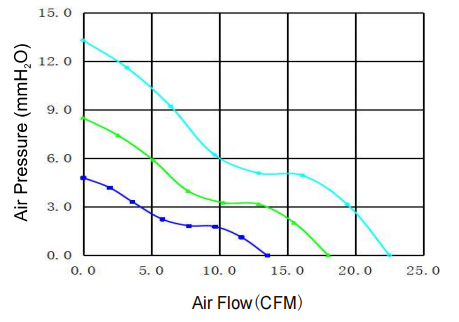

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE6025H2B	115/230	50/60	98-264	0.06	5.0	5000	22.5	13.3	37	70
QE6025M2B				0.04	3.0	4000	18.0	8.5	32
QE6025L2B				0.03	2.0	3000	13.5	4.8	26
