EC series Boosting Fan 606032mm

EC series Boosting Fan 60*60*32mmAdopting advanced electronic commutation technology, it is energy efficient and can significantly reduce energy consumption compared with traditional fans. The frame and impeller are made of high-quality PBT material for durability. The double ball bearing system not only ensures smooth operation, but also extends the service life. This fan is suitable for industrial equipment, cabinets, computer rooms, etc. It can dissipate heat efficiently and ensure the stable...

INQUIRY

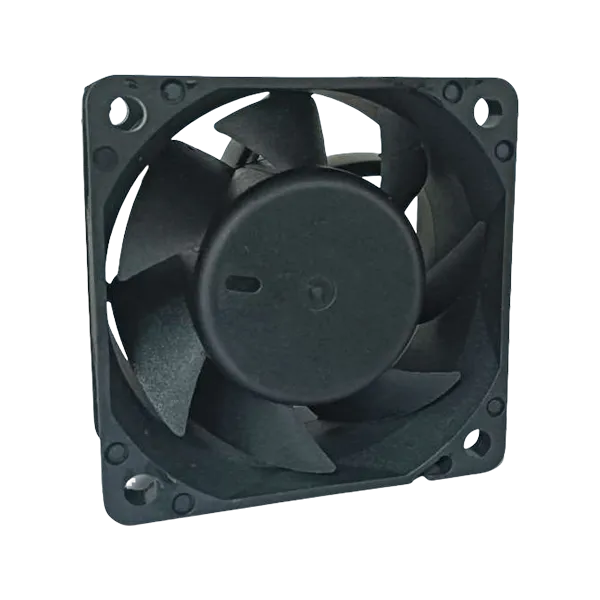

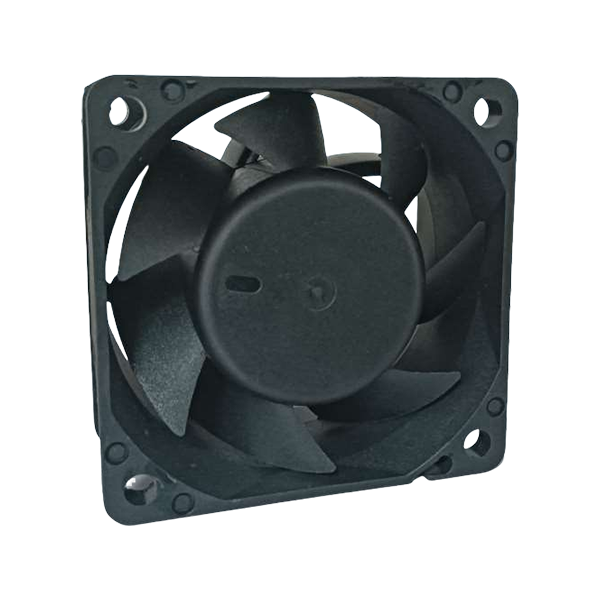

EC series Boosting fan 60*60*32mm

Adopting advanced electronic commutation technology, it is energy efficient and can significantly reduce energy consumption compared with traditional fans. The frame and impeller are made of high-quality PBT material for durability. The double ball bearing system not only ensures smooth operation, but also extends the service life. This fan is suitable for industrial equipment, cabinets, computer rooms, etc. It can dissipate heat efficiently and ensure the stable operation of the equipment.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

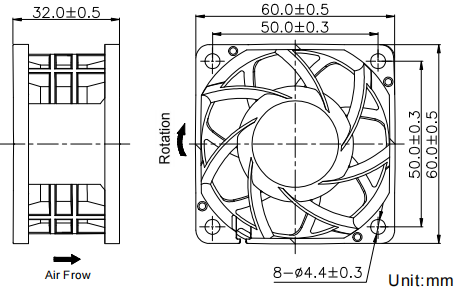

Dimensions Drawing

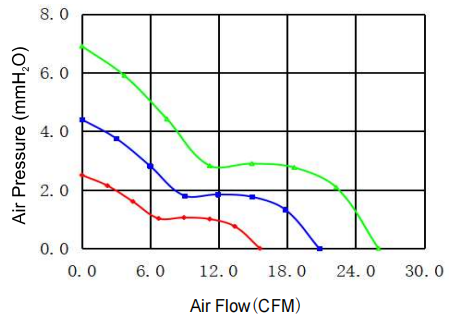

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE6032H2B	115/230	50/60	98-264	0.06	5.0	5000	26.0	7.0	40	95
QE6032M2B				0.04	4.0	4000	20.8	4.4	35
QE6032L2B				0.03	3.0	3000	15.6	2.5	29
