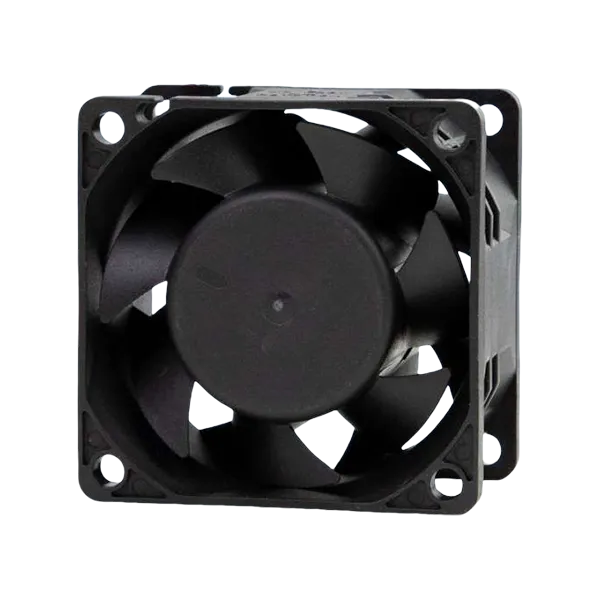

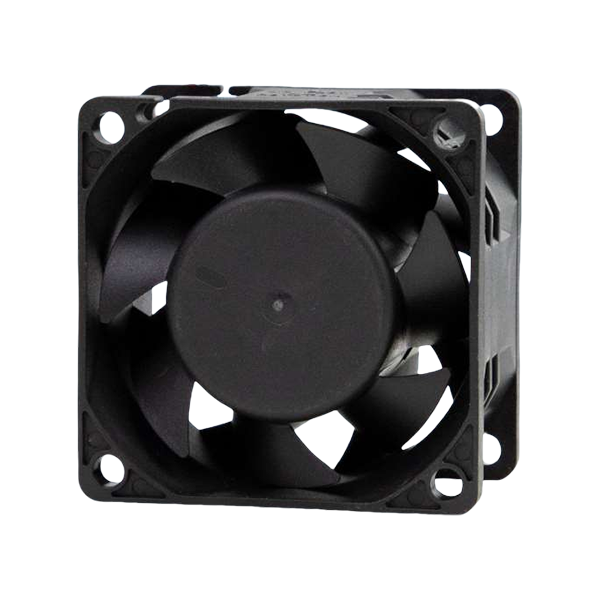

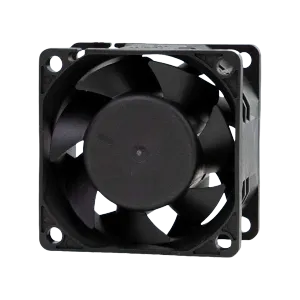

EC series Boosting fan 60*60*38mm

Built-in high-efficiency brushless DC motor for efficient and energy-saving operation. The advanced fluid simulation design of the impeller optimises aerodynamic performance and provides a stable and powerful airflow of up to 19.83 cfm. The noise level is as low as 30 dBA, creating a quiet environment. Excellent protection level, suitable for industrial equipment, network cabinets and other scenarios, efficient cooling for equipment.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

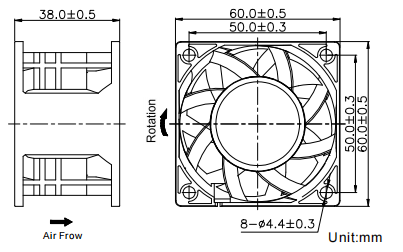

Dimensions Drawing

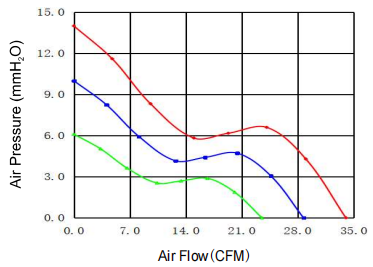

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE6038H2B	115/230	50/60	98-264	0.08	6.0	6500	34.0	14.0	48.5	105
QE6038M2B				0.06	5.0	5500	28.7	10.0	45.0
QE6038L2B				0.04	4.0	4500	23.5	6.7	40.5
