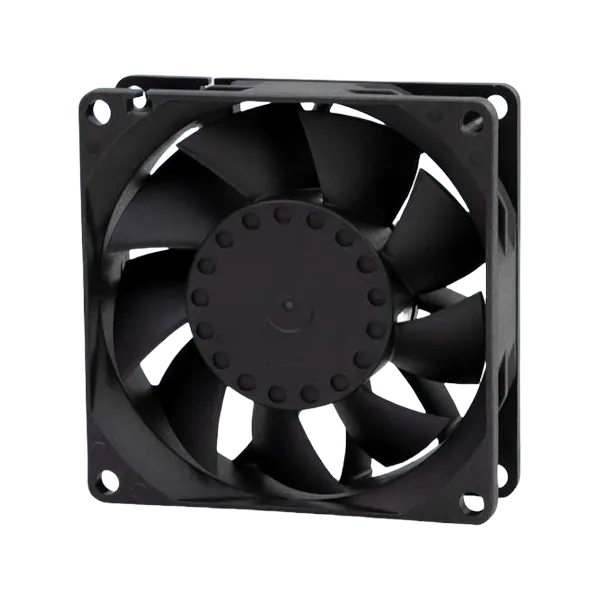

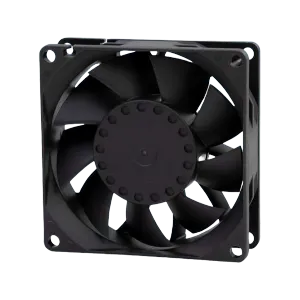

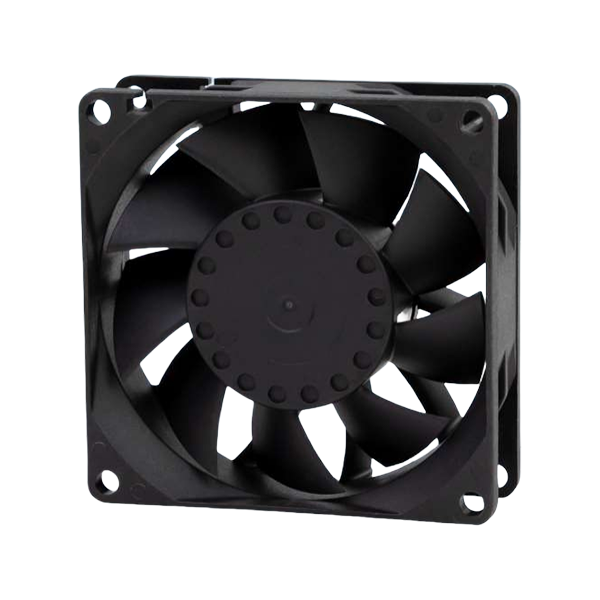

Leave a messageEC series Boosting fan 80*80*25mm
It adopts high-precision double ball bearings and pure copper motor for stable operation and long life. Large air volume, can efficiently dissipate heat, can adapt to - 10 ℃ to 70 ℃ working temperature. With rotor locking automatic restart, waterproof and dustproof function, commonly used in industrial, power equipment and chassis cabinet, is the right assistant for heat dissipation.
General Specifications
Motor | EC Brushless motor |
Frame Material | Plastic(UL94V-0) |
Impeller Material | Plastic(UL94V-0) |
Function | PWM/FG/RD optional |
Temp.Range | -20℃~70℃ |
Protection | IP20,Max.IP68 |
Expected Life | 70000hrs/40℃ |
Safety Appro | CE |

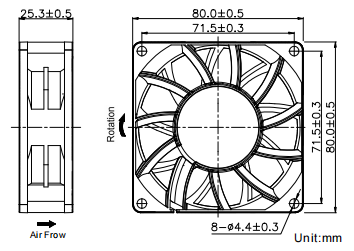

Dimensions Drawing

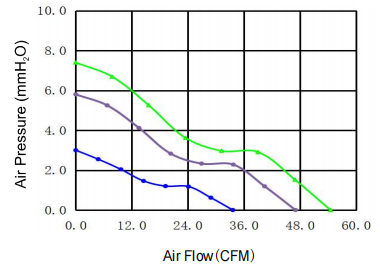

Performance Curve
Specifications
Listed | Rated | Frequency | Operation | Rated | Power | Rated | Air | Air | Noise | Weight |
VAC | Hz | VAC | A | W | RPM | CFM | mmH₂O | dBA | 9 | |
QE8025H2B | 115/230 | 50/60 | 98-264 | 0.08 | 5.0 | 4000 | 54.5 | 7.4 | 45 | 100 |
QE8025M2B | 0.06 | 4.0 | 3500 | 48.0 | 5.8 | 42 | ||||
QE8025L2B | 0.04 | 3.0 | 2500 | 33.6 | 3.0 | 35 |
