EC series Boosting Fan 808038mm

EC series Boosting Fan 80*80*38mmthe fan frame and fan blades are made of UL94V-0 thermoplastic material, safe and flame retardant. With powerful performance, it has a wide range of operating voltage, such as 115V or 230V, ball or oil bearing, speed up to 2,500-3,500rpm, and airflow up to 48.7CFM, it can efficiently dissipate heat and ventilate, and is suitable for a wide range of equipments with heat dissipation needs. General SpecificationsMotorEC Brushless motorFrame MaterialPlastic(UL94...

INQUIRY

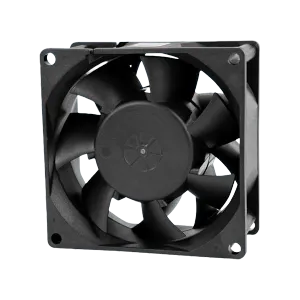

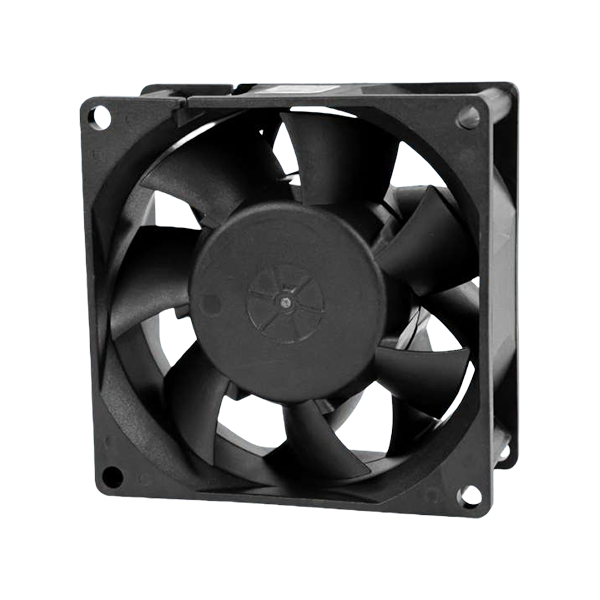

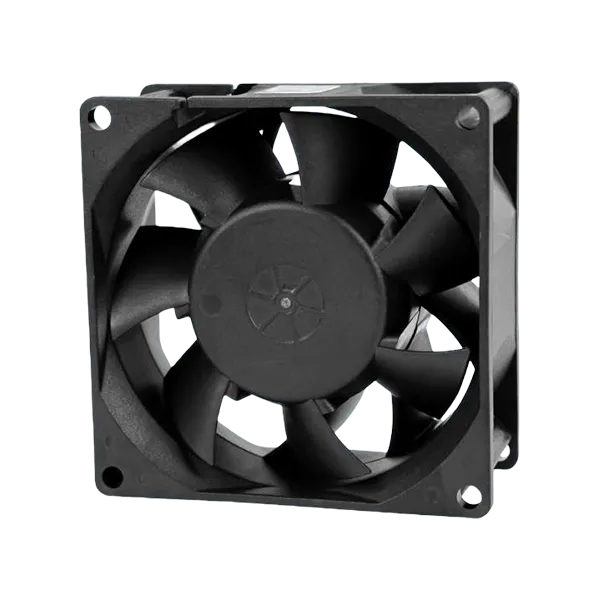

EC series Boosting fan 80*80*38mm

the fan frame and fan blades are made of UL94V-0 thermoplastic material, safe and flame retardant. With powerful performance, it has a wide range of operating voltage, such as 115V or 230V, ball or oil bearing, speed up to 2,500-3,500rpm, and airflow up to 48.7CFM, it can efficiently dissipate heat and ventilate, and is suitable for a wide range of equipments with heat dissipation needs.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40℃
Safety Appro	CE

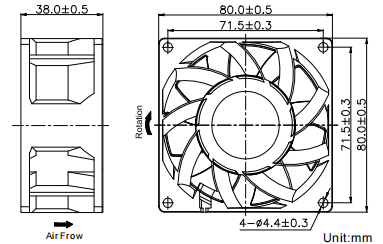

Dimensions Drawing

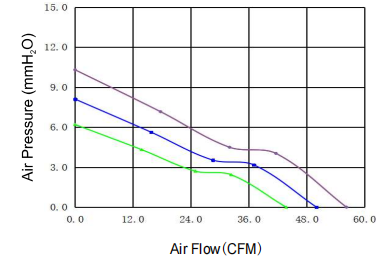

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	9
QE8038H2B	115/230	50/60	98-264	0.06	6.0	4500	56.2	10.3	49	170
QE8038M2B				0.04	4.0	4000	50.0	8.1	46
QE8038L2B				0.03	3.0	3500	43.7	6.2	43
