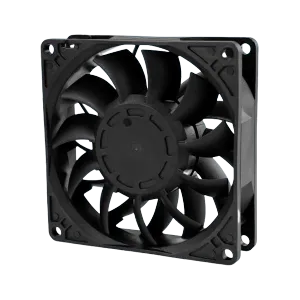

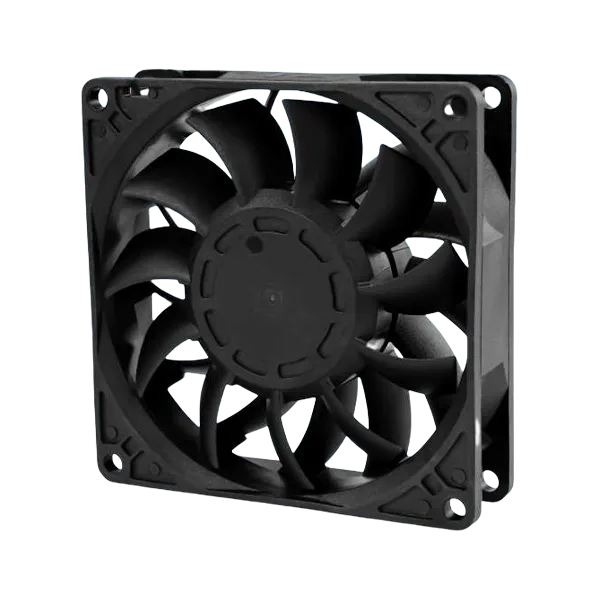

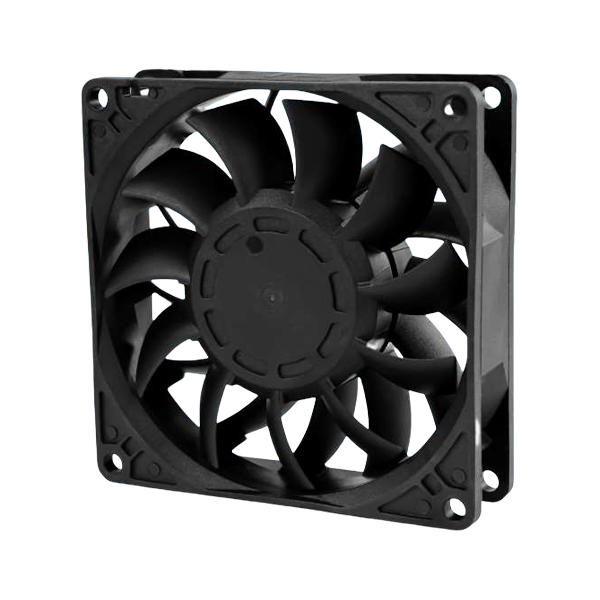

EC series Boosting fan 92*92*25mm

Adopting PBT material, anti-brittle and wear-resistant. Equipped with a brushless energy-saving motor with double ball bearings to achieve low power consumption and long life operation. With wide voltage design, it can work stably under 85v-240v voltage, and also has rotor locking auto restart function, waterproof and dustproof. Commonly used in industrial equipment, chassis cabinets and other AC power supply equipment cooling and ventilation.

General Specifications

Motor	EC Brushless motor
Frame Material	Plastic(UL94V-0)
Impeller Material	Plastic(UL94V-0)
Function	PWM/FG/RD optional
Temp.Range	-20℃~70℃
Protection	IP20,Max.IP68
Expected Life	70000hrs/40C
Safety Appro	CE

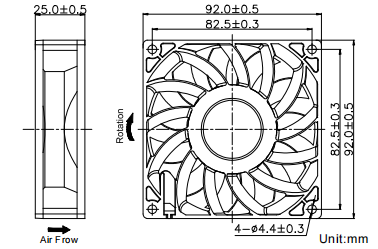

Dimensions Drawing

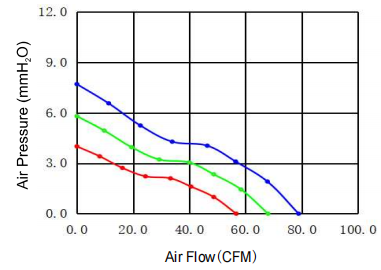

Performance Curve

Specifications

Listed Model	Rated Voltage	Frequency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	VAC	Hz	VAC	A	W	RPM	CFM	mmH₂O	dBA	g
QE9225H2B	115/230	50/60	98-264	0.08	5.0	3500	79.0	7.7	46	120
QE9225M2B				0.06	4.0	3000	68.0	5.8	43
QE9225L2B				0.04	3.0	2500	56.7	4.0	39
