EC series Centrifugal Fan133*62mm

EC series Centrifugal Fan133*62mmThe EC series centrifugal fan, with dimensions of 133*62 mm, has a unique external rotor motor design that significantly improves motor efficiency and reduces operating noise. The compact design saves installation space and optimises airflow paths for higher air pressure and volume. The fan can also adjust the blade angle to adjust the air supply mode according to the needs, and is widely used in commercial, industrial and other scenarios, with energy savin...

INQUIRY

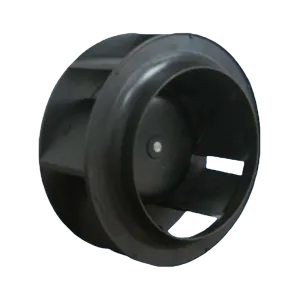

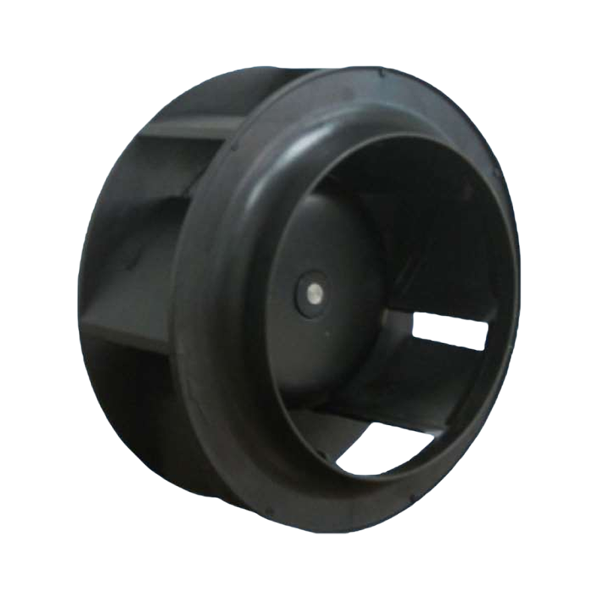

EC series Centrifugal fan133*62mm

The EC series centrifugal fan, with dimensions of 133*62 mm, has a unique external rotor motor design that significantly improves motor efficiency and reduces operating noise. The compact design saves installation space and optimises airflow paths for higher air pressure and volume. The fan can also adjust the blade angle to adjust the air supply mode according to the needs, and is widely used in commercial, industrial and other scenarios, with energy saving and high efficiency, which makes it a high-quality choice for ventilation equipment.

General Specifications

Motor	EC CentrifugalFans
Frame Material	Baked Black Paint
Impeller Material	Plastic(UL 94V-0)
Function	0~10VDC/PWM/FG/RD optional
Temp.Range	-20℃~65℃
Protection	IP44
Expected Life	60000hrs/40℃
Safety Appro	CE

Performance Curve

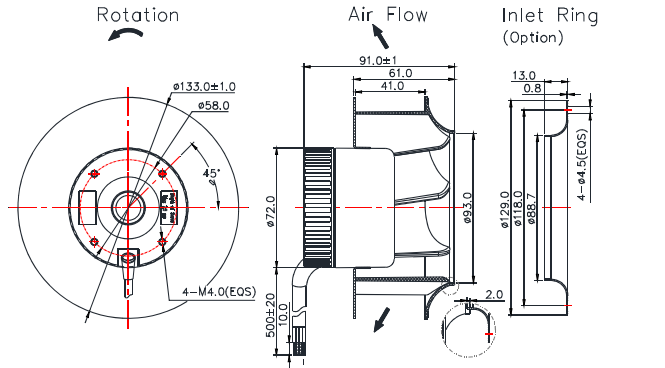

Dimensions Drawing

Specifications

Listed Model	Motor System	Rated Voltage	Fre- quency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	mm	VAC	Hz	VAC	A	W	RPM	m³/h	Pa	dBA	g
QE133062H2B	EC72	230	50/60	200~277	0.45	50.0	4500	390.8	470.5	66.0	700
