EC series Centrifugal Fan175*62mm

EC series Centrifugal Fan175*62mmThe EC series centrifugal fan with dimensions 175*62 mm is a compact and efficient ventilation unit. The impeller rotates at high speed with the help of an electric motor, accelerating the gas and converting it into pressure energy for air supply. The fan is easy to install in small spaces and is suitable for use in base station cooling, electronic equipment cooling and other scenarios. It is stable, reliable, energy efficient and has a precisely regulated...

INQUIRY

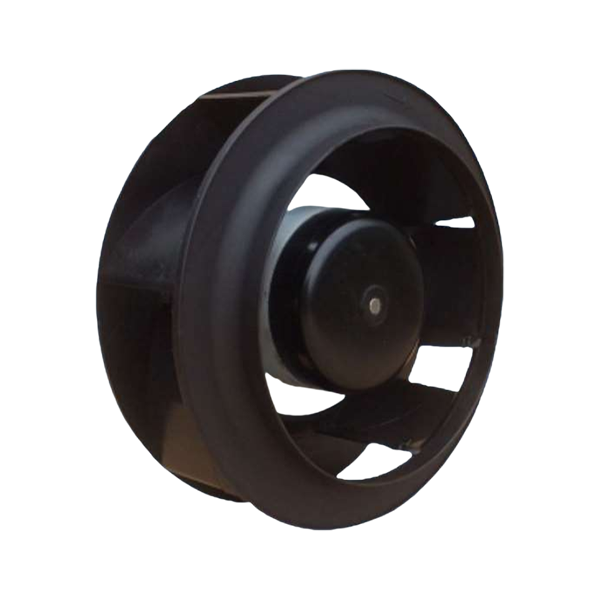

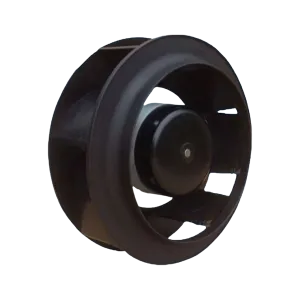

EC series Centrifugal fan175*62mm

The EC series centrifugal fan with dimensions 175*62 mm is a compact and efficient ventilation unit. The impeller rotates at high speed with the help of an electric motor, accelerating the gas and converting it into pressure energy for air supply. The fan is easy to install in small spaces and is suitable for use in base station cooling, electronic equipment cooling and other scenarios. It is stable, reliable, energy efficient and has a precisely regulated airflow.

General Specifications

Motor	EC centrifugal fans
Frame Material	Baked Black Paint
Impeller Material	Plastic(UL94V-0)
Function	0~10VDC/PWM/FG/RD optional
Temp.Range	-20℃~65℃
Protection	IP44
Expected Life	60000hrs/40C
Safety Appro	CE

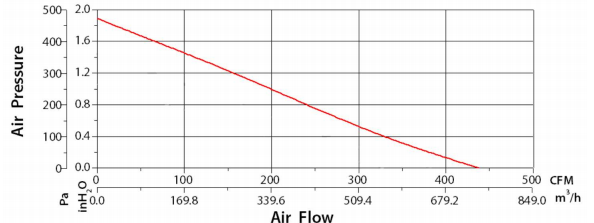

Performance Curve

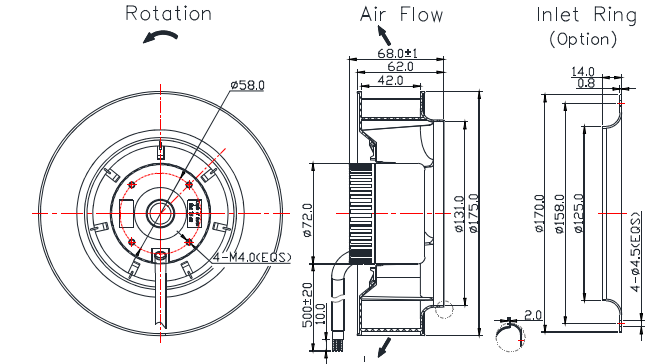

Dimensions Drawing

Specifications

Listed Model	Motor System	Rated Voltage	Fre- quency	Operation Voltage	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
Listed Model	mm	VAC	Hz	VAC	A	W	RPM	m³/h	Pa	dBA	g
QE175062H2B	EC72	230	50/60	200~277	0.50	70.0	4000	758.3	488.4	67.0	750
